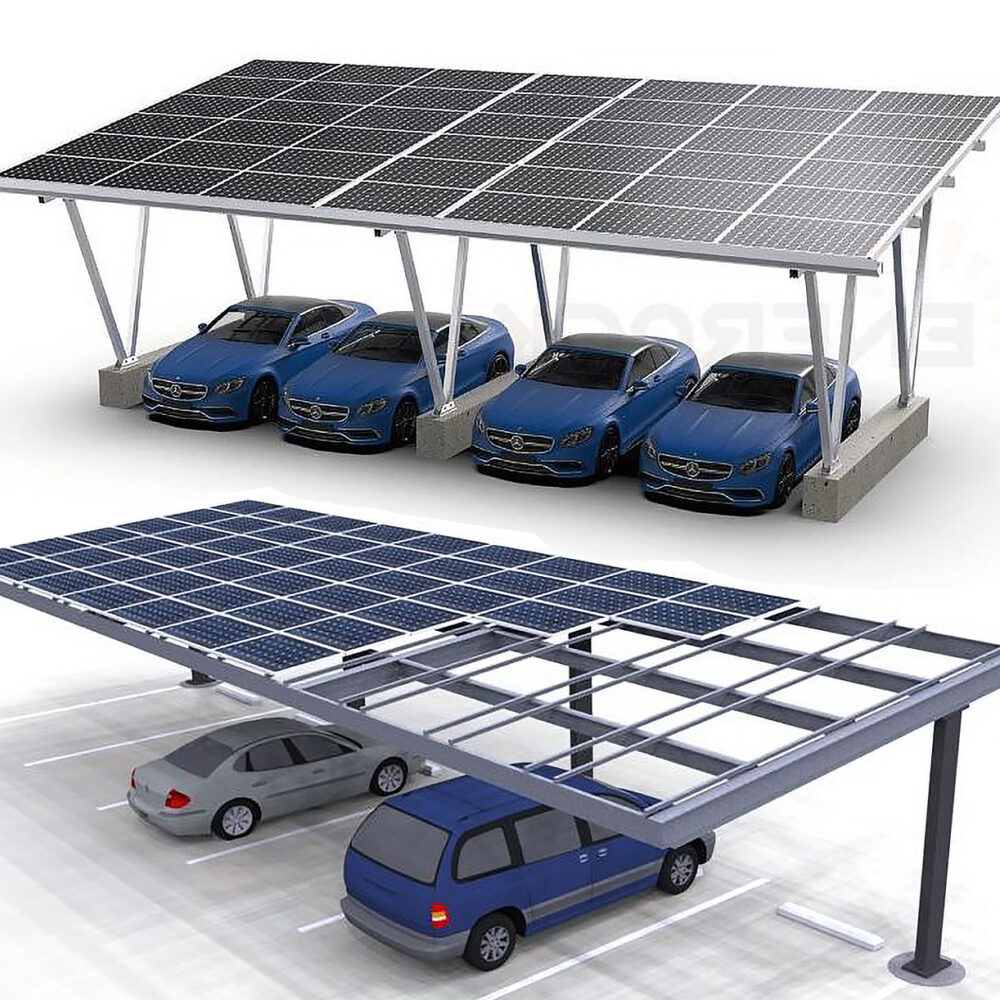

Description
|
Key Components and Specifications: |
||||||
|
Materials: |
||||||
|
– |
Aluminum Alloy: Often AL6005-T5, known for its strength, corrosion resistance, and suitability for outdoor use. |
|||||
|
– |
Steel: Q235B or Q355B, hot-dipped galvanized steel, or stainless steel 304/410, may be used for columns, beams, and other structural components. |
|||||
|
Weather Resistance: |
||||||
|
– |
Wind Load: Designed to withstand wind speeds up to 60m/s. |
|||||
|
– |
Snow Load: Capable of supporting snow loads up to 1.4KN/m², or even 10KN/m² in some cases. |
|||||
|
Design: |
||||||
|
– |
Tilt Angle: Adjustable tilt angles, often between 5° and 15°, to optimize solar energy capture. |
|||||
|
– |
Waterproof Design: Integrated waterproofing to protect vehicles and electrical components. |
|||||
|
– |
Modular Design: Allows for flexible configurations, accommodating single or multiple parking spaces. |
|||||
|
– |
Customization: Available in various configurations, including single or double slope roofs, and different |
|||||
|
Lifespan: |
||||||
|
– |
Designed for a service life exceeding 25 years. |
|||||
|
– |

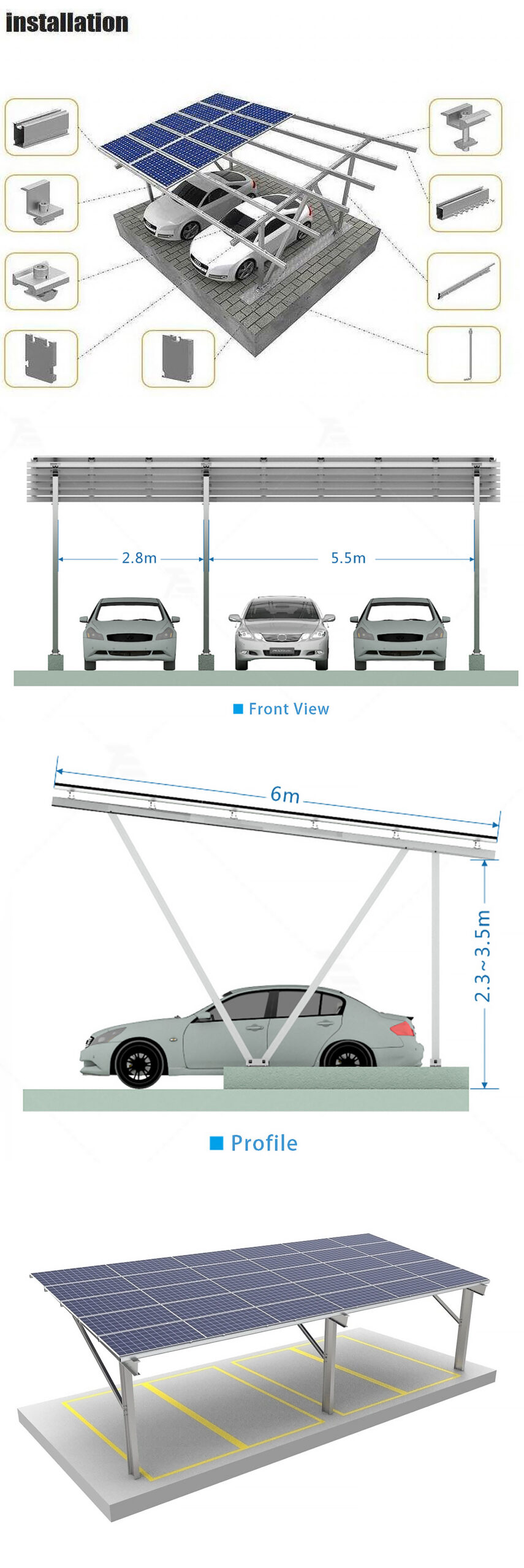

Installation: Pre-assembled Components: Some systems feature pre-assembled components to reduce installation time and labor costs. |
|||||
|
– |
Installation Manuals: Detailed installation instructions and manuals are often provided. |
|||||
|
Other Features: |
||||||
|
– |

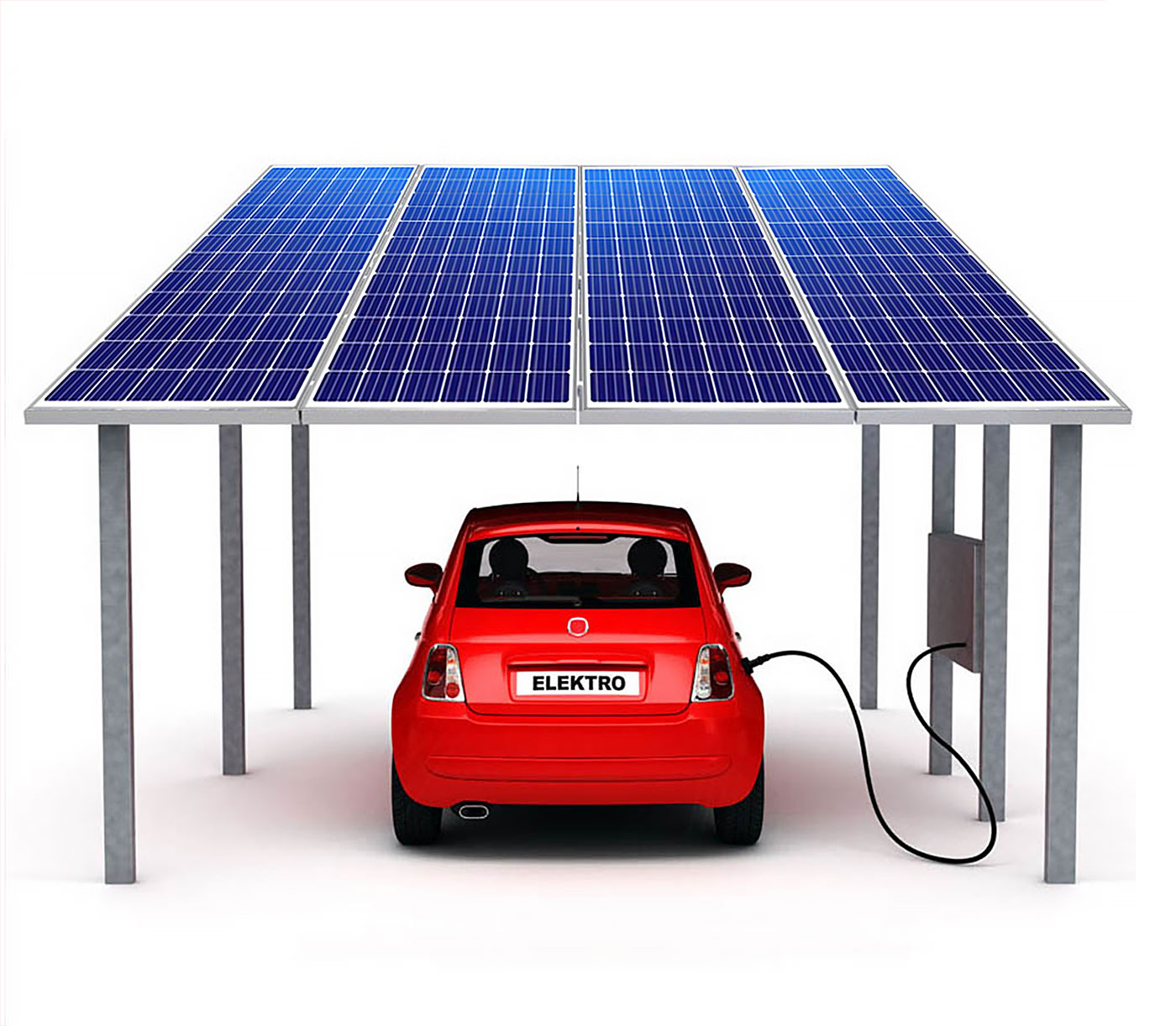

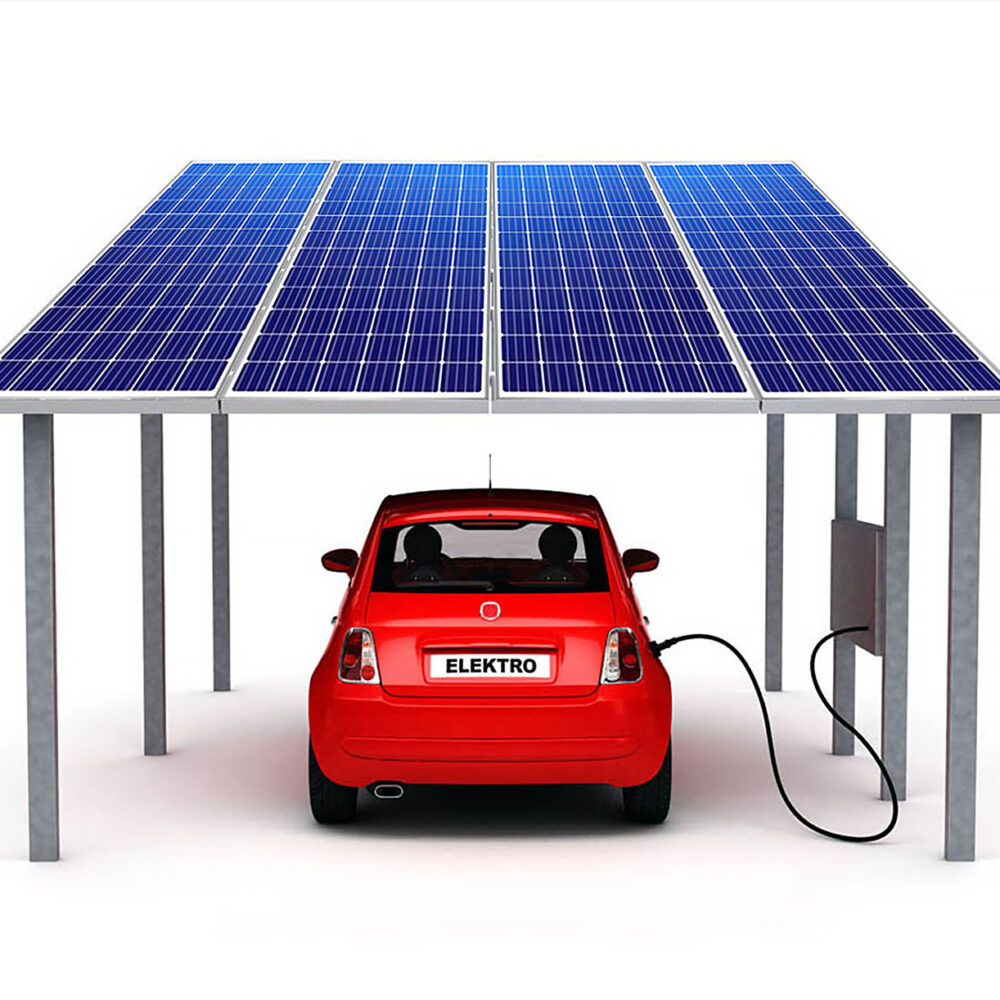

EV Charging Integration: Can be integrated with electric vehicle charging stations. |
|||||
|
– |
Corrosion Resistance: Surface treatments like anodization or hot-dip galvanizing provide enhanced corrosion protection. |
|||||
|
– |
Compliance: May be certified to standards like JIS C 8955-2017, UL2703, or IEC61215. |
|||||
|
Cost Recovery: |
||||||
|
– |
Payback periods typically range from 5-8 years, depending on electricity consumption and government subsidies. |
|||||
|
Specification of Carport Mounting System for Solar Panels |
||||||
|
Item |
Description / Specification |
|||||
|
Mounting Type |
Solar Carport Mounting System (Single or Double Post) |
|||||
|
Application |
Parking lots, residential carports, commercial buildings, EV charging stations |
|||||
|
Structure Material |
Hot-Dip Galvanized Steel / Aluminum Alloy (AL6005-T5) |
|||||
|
Fastener Material |
Stainless Steel (SUS304) |
|||||
|
Design Types |

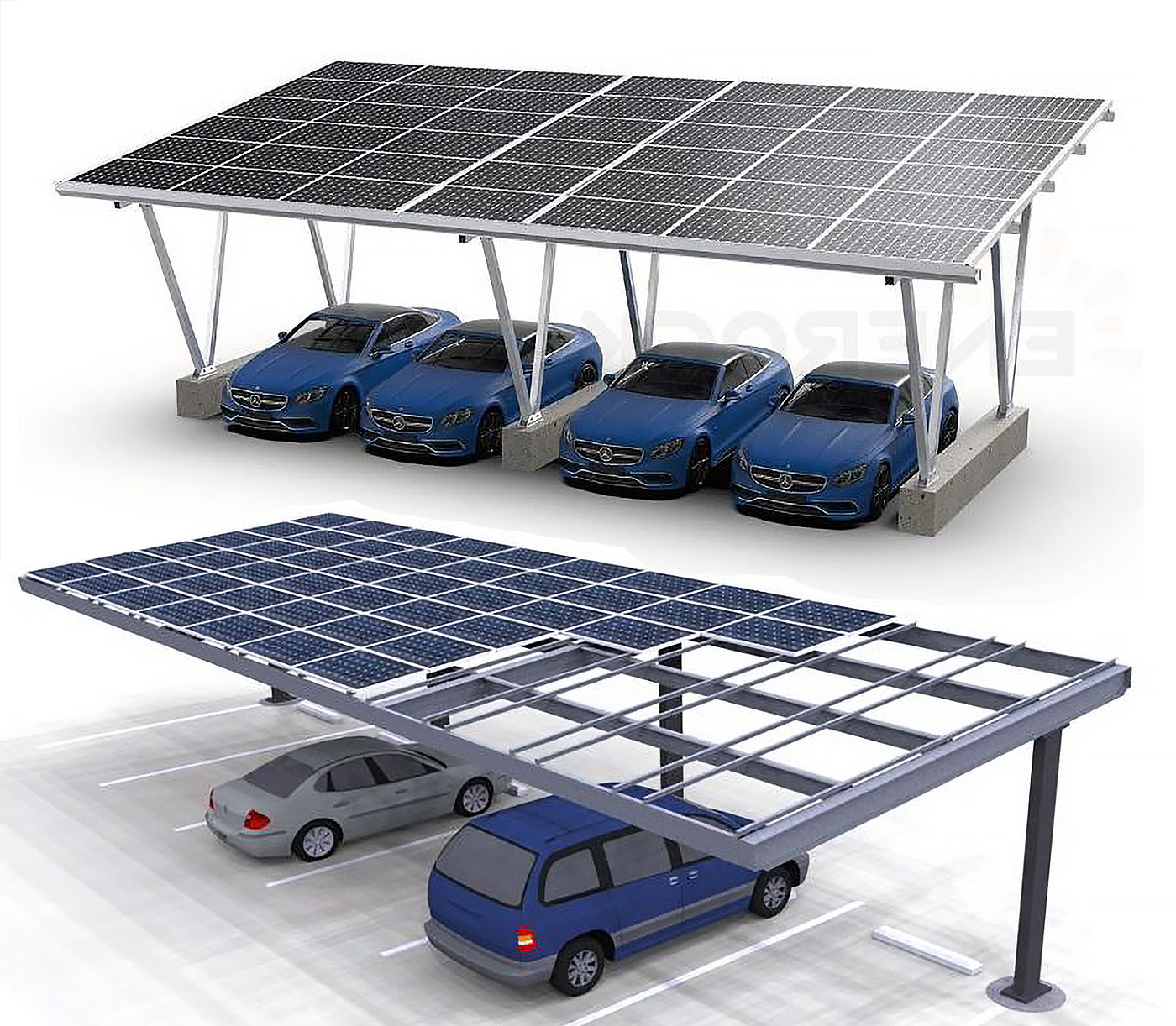

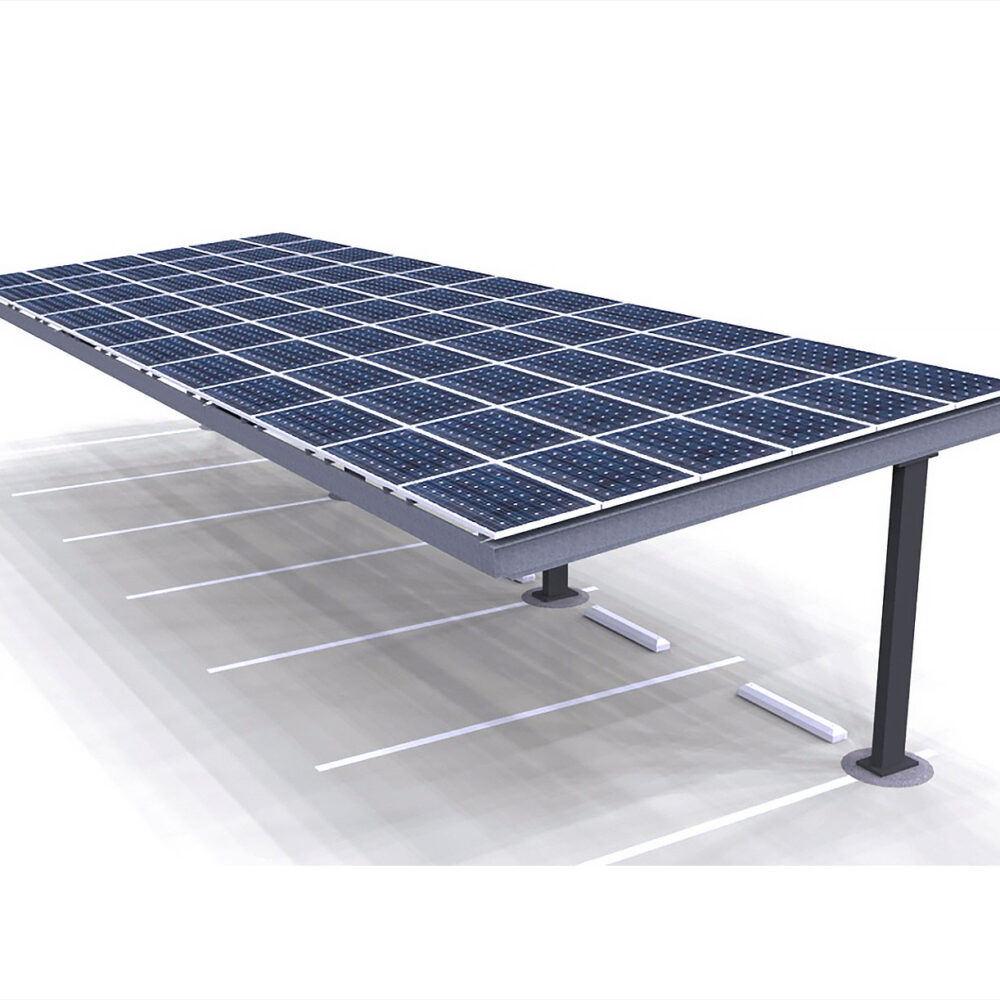

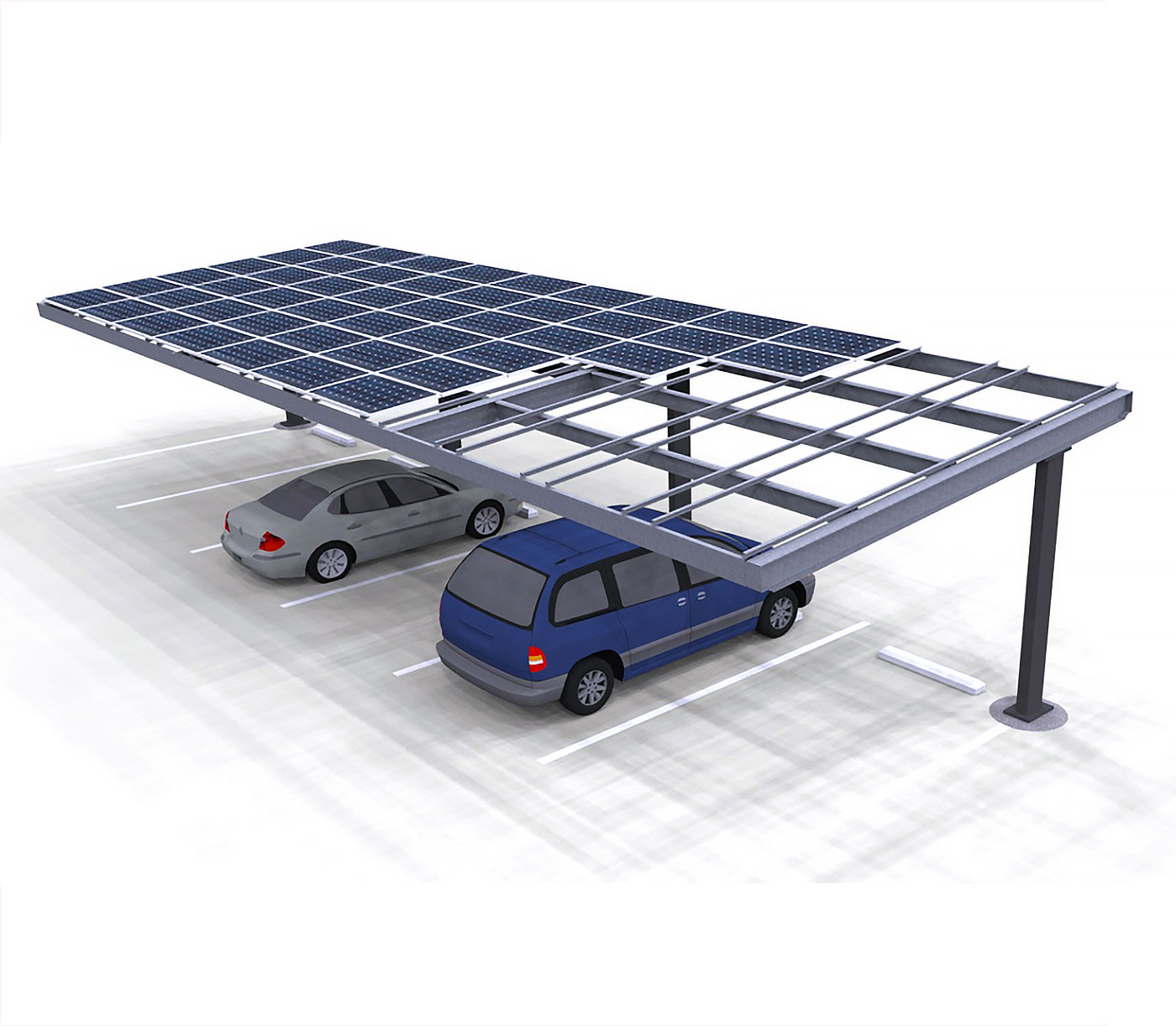

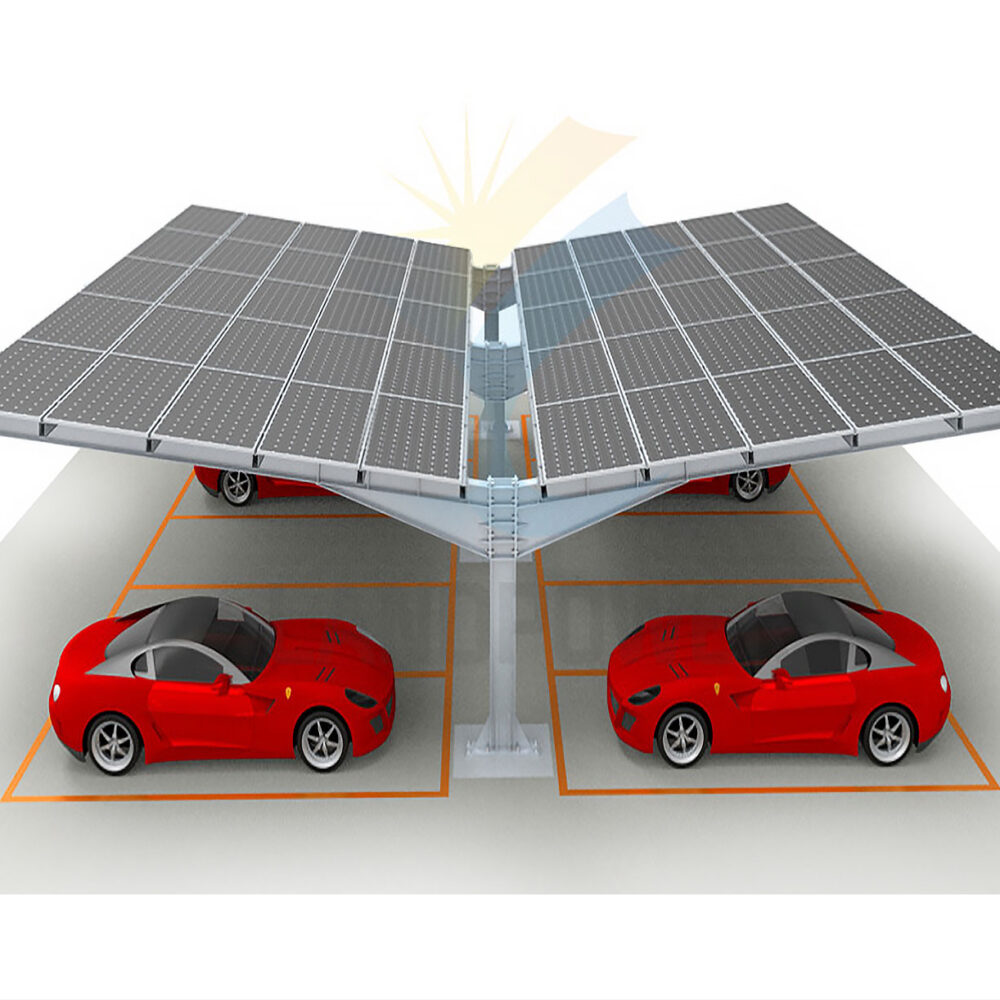

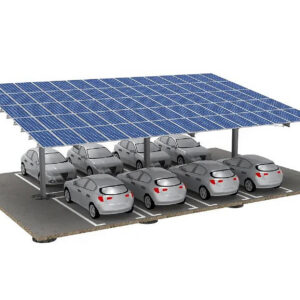

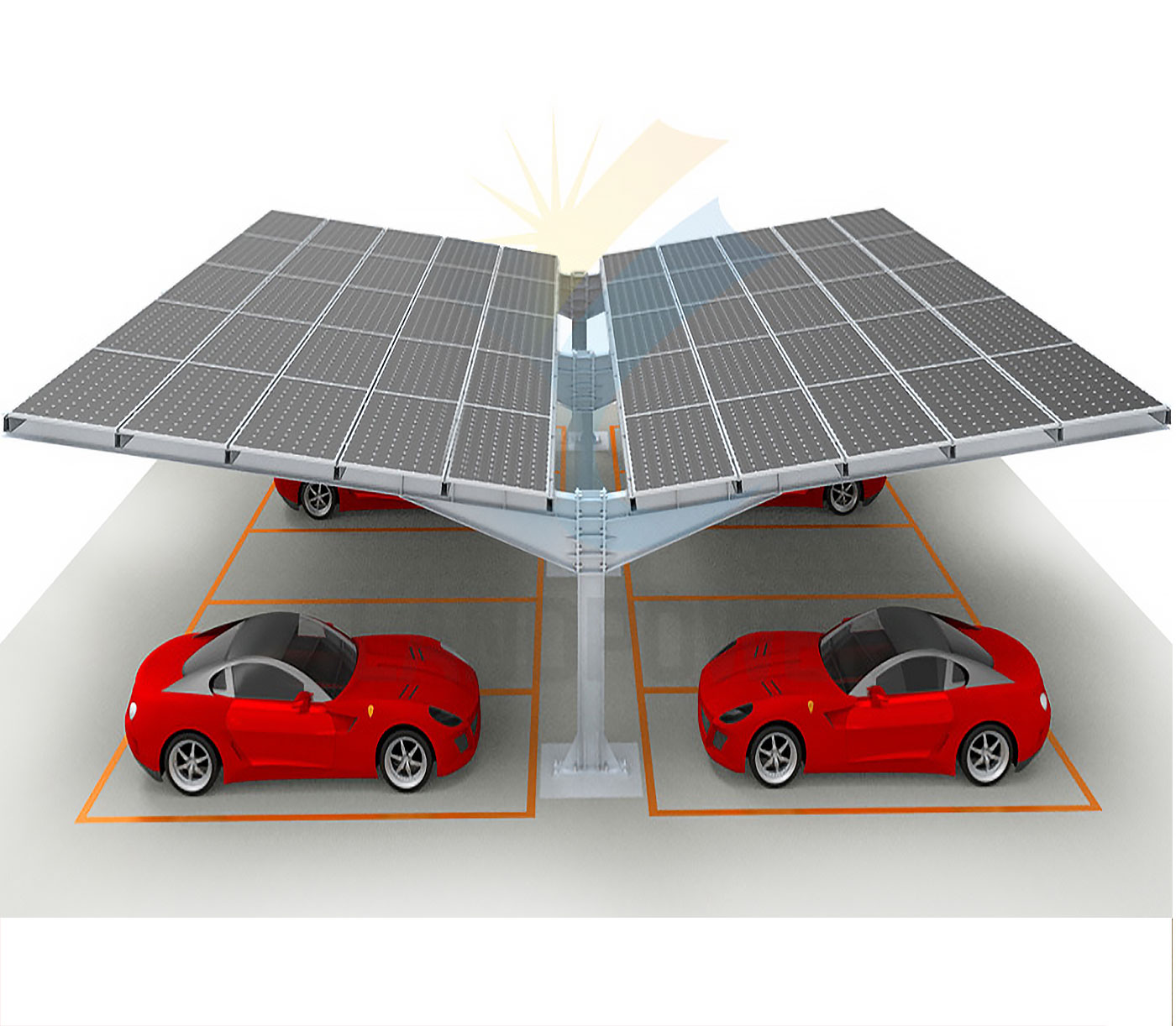

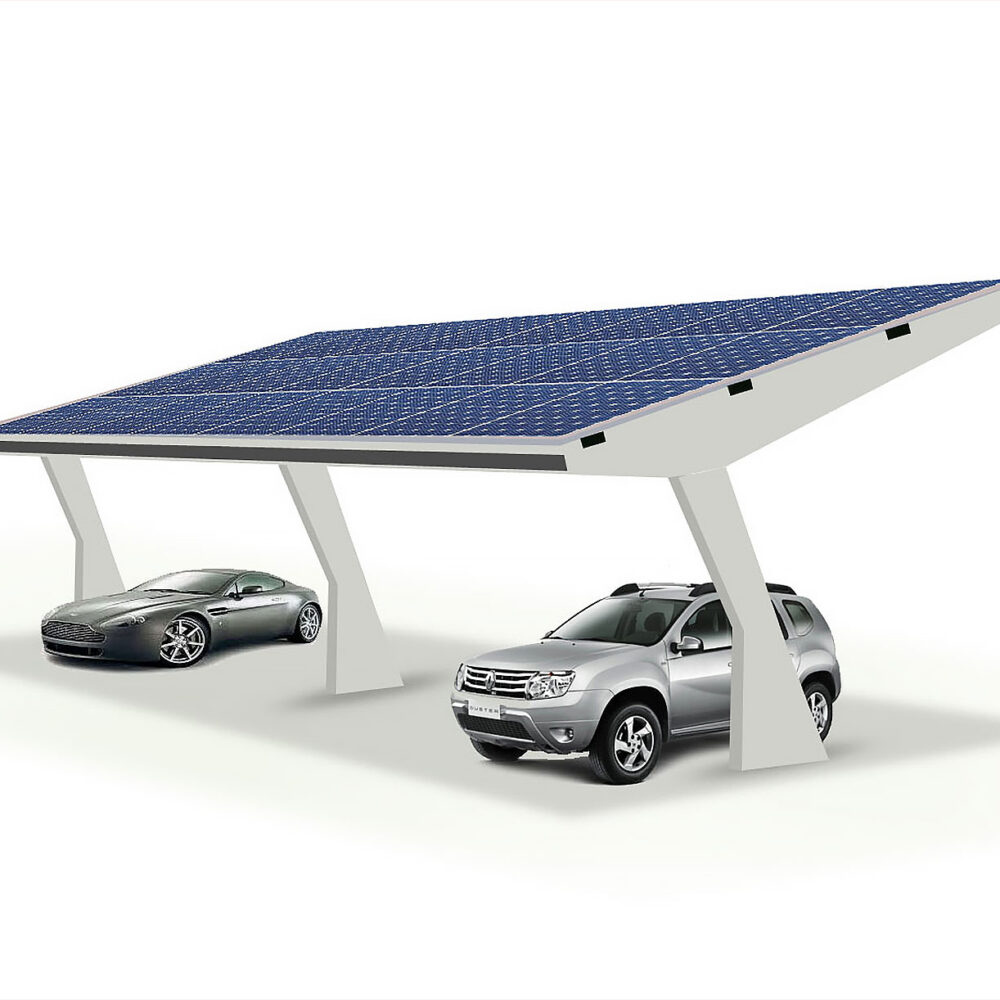

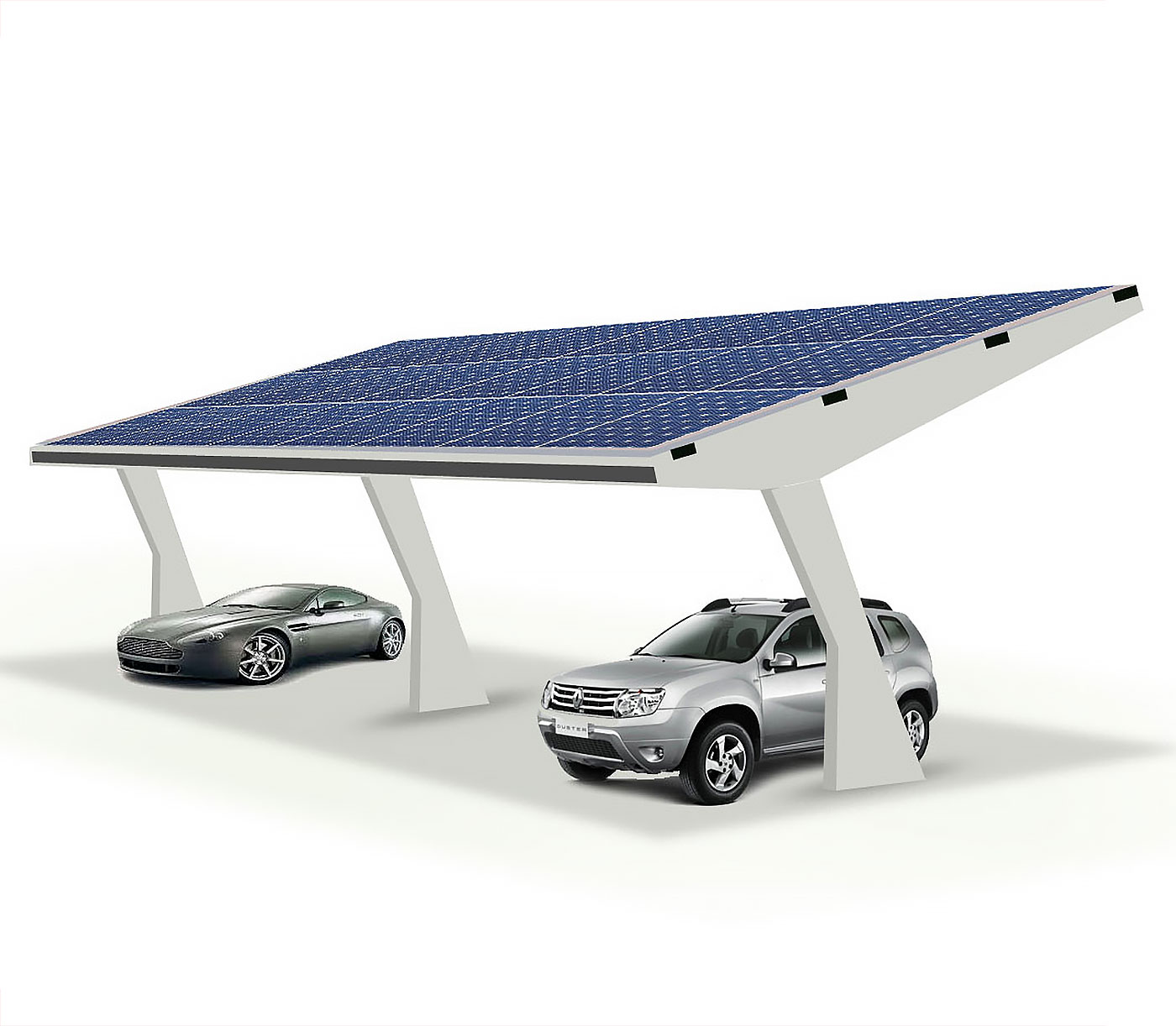

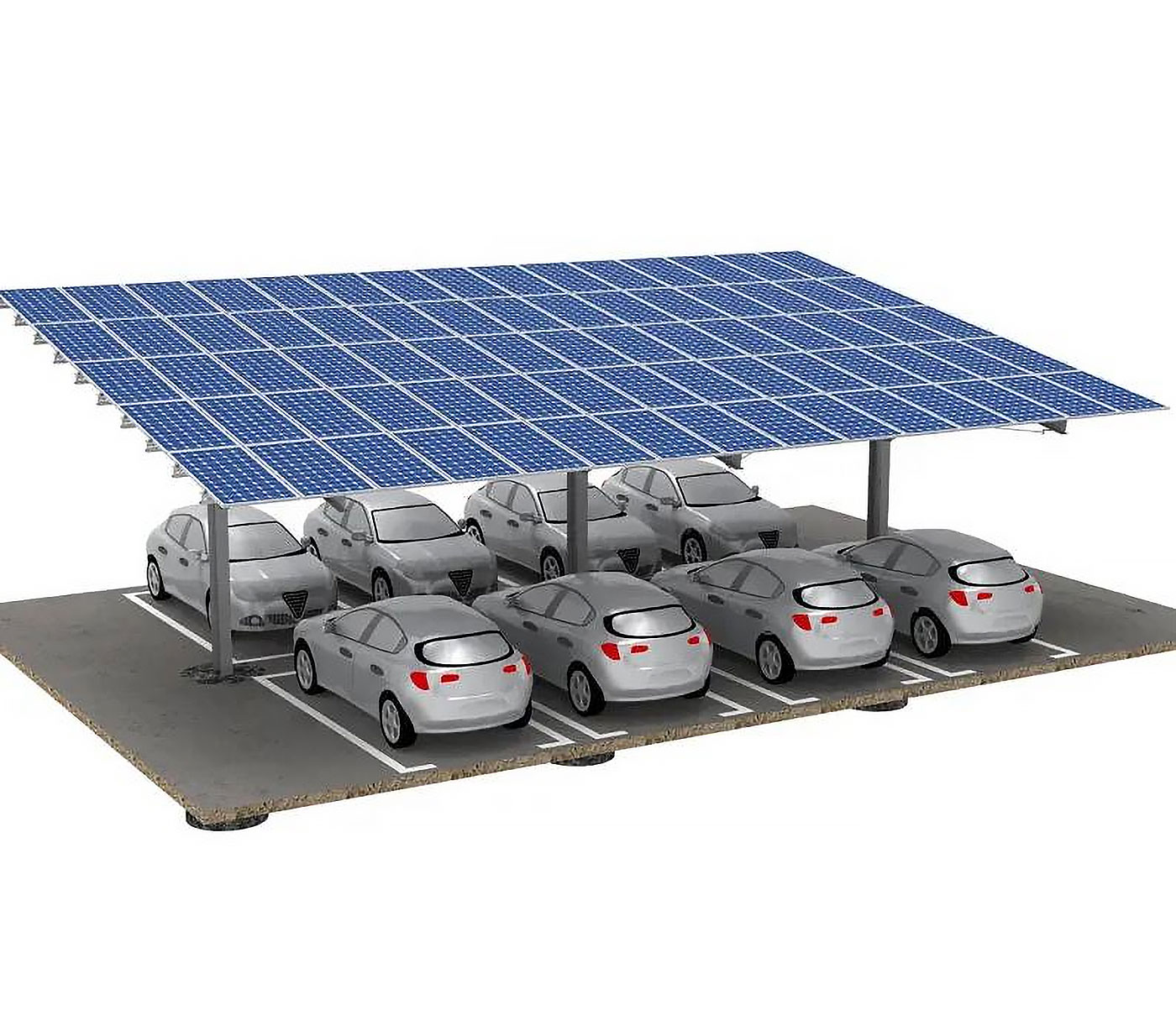

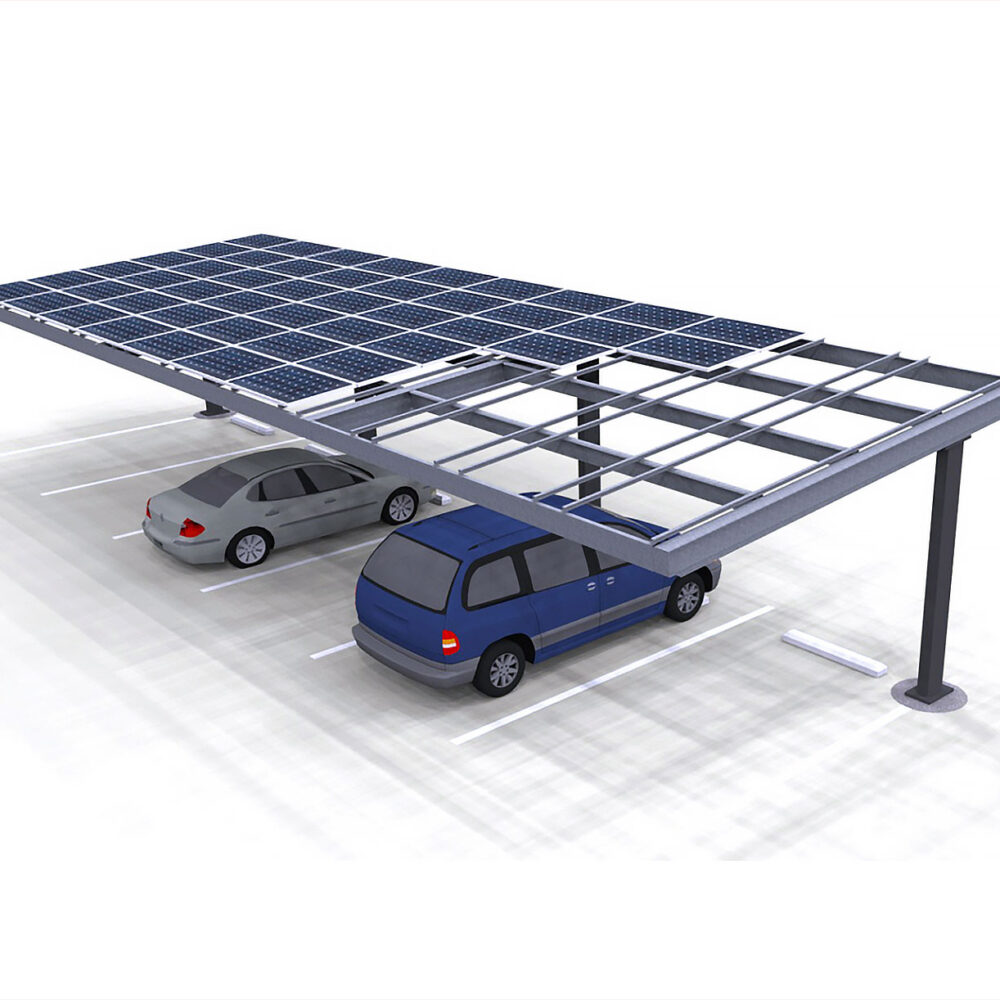

Single Row, Double Row (Back-to-Back), Cantilever Type |
|||||
|
Tilt Angle |
0° – 15° (depending on sun orientation and water drainage) |
|||||
|
Mounting Orientation |
Portrait or Landscape |
|||||
|
Panel Fixation |
Mid-clamps and End-clamps |
|||||
|
Roofing Option |
With or without metal sheets / glass panels under the solar modules |
|||||
|
Wind Load Resistance |
Up to 160–180 km/h |
|||||
|
Snow Load Resistance |
Up to 2.0 kN/m² (site-specific) |
|||||
|
Waterproofing Option |
Optional integrated gutter and drainage system |
|||||
|
EV Charging Compatibility |
Can integrate EV chargers or battery storage systems |
|||||
|
Cable Management |
Concealed cable trays or inner-post routing |
|||||
|
Ground Clearance |
2.0 – 3.5 meters (adjustable based on vehicle type) |
|||||
|
Installation Method |
Bolted foundation, Concrete footings, or Ground Screws |
|||||
|
Expected Lifespan |
≥ 25 years |
|||||
|
Compliance Standards |
AS/NZS 1170, JIS C8955, UL 2703, IEC 61215, ISO 9001 |
|||||
|
Examples of specifications for some types of Carports Mounting System |
||||||
|
HQ-BR6 Solar Ballasted Roof Mounting Solution |
||||||
|
Product Characteristics |
||||||
|
Model No. |
MG-AC-S |
|||||
|
Product Warranty |
12 Years |
|||||
|
ProductSystem Overview |
||||||
|
Type |
Carport |
|||||
|
Mounting System Arrangement |
Rows |
|||||
|
Panel Framing |
Framed, Unframed |
|||||
|
Panel Orientation |
Portrait, Landscape |
|||||
|
Tilt Angle |
5-60 ° |
|||||
|
Wind Load |
198 km/h |
|||||
|
Snow Load |
1.4 kN/m2 |
|||||
|
General Data |
||||||
|
Supporting Structure Materials |
Aluminium, Stainless Steel |
|||||
|
Small Parts Materials |
Aluminium, Stainless Steel |
|||||
|
Carport Mounting System |
||||||
|
Product Characteristics |
||||||
|
Model No. |
Carport Mounting System |
|||||
|
Product Warranty |
10 Years |
|||||
|
Product System Overview |
||||||
|
Type |
Carport |
|||||
|
Mounting System Arrangement |
Rows |
|||||
|
Panel Framing |
Framed, Unframed |
|||||
|
Panel Orientation |
Portrait |
|||||
|
Tilt Angle |
0-20 ° |
|||||
|
Wind Load |
216 km/h |
|||||
|
Snow Load |
1.4 kN/m2 |
|||||
|
General Data |
||||||
|
Supporting Structure Materials |
Aluminium, Stainless Steel |
|||||
|
Small Parts Materials |
Aluminium, Stainless Steel |
|||||
|
GS-Solar Carport Mounting System |
||||||
|
Product Characteristics |
||||||
|
Model No. |
Type II Carport Mounting System |
Double Column Waterproof Carport Mounting System |
CAR Waterproof Carport Mounting System |
Single Column Carport Mounting System |
||
|
Product Warranty |
10 Years |
|||||
|
System Overview |
Carport |
|||||
|
Type |
||||||
|
Mounting System Arrangement |
Rows, Columns |
|||||
|
Panel Framing |
Framed |
|||||
|
Panel Orientation |
Portrait, Landscape |
|||||
|
Tilt Angle |
0-60 ° |
0-60 ° |
0-60 ° |
0-60 ° |
||
|
Wind Load |
216 km/h |
216 km/h |
216 km/h |
216 km/h |
||
|
General Data |
||||||
|
Supporting Structure Materials |
Aluminium |
|||||
|
Small Parts Materials |
Aluminium |
|||||
