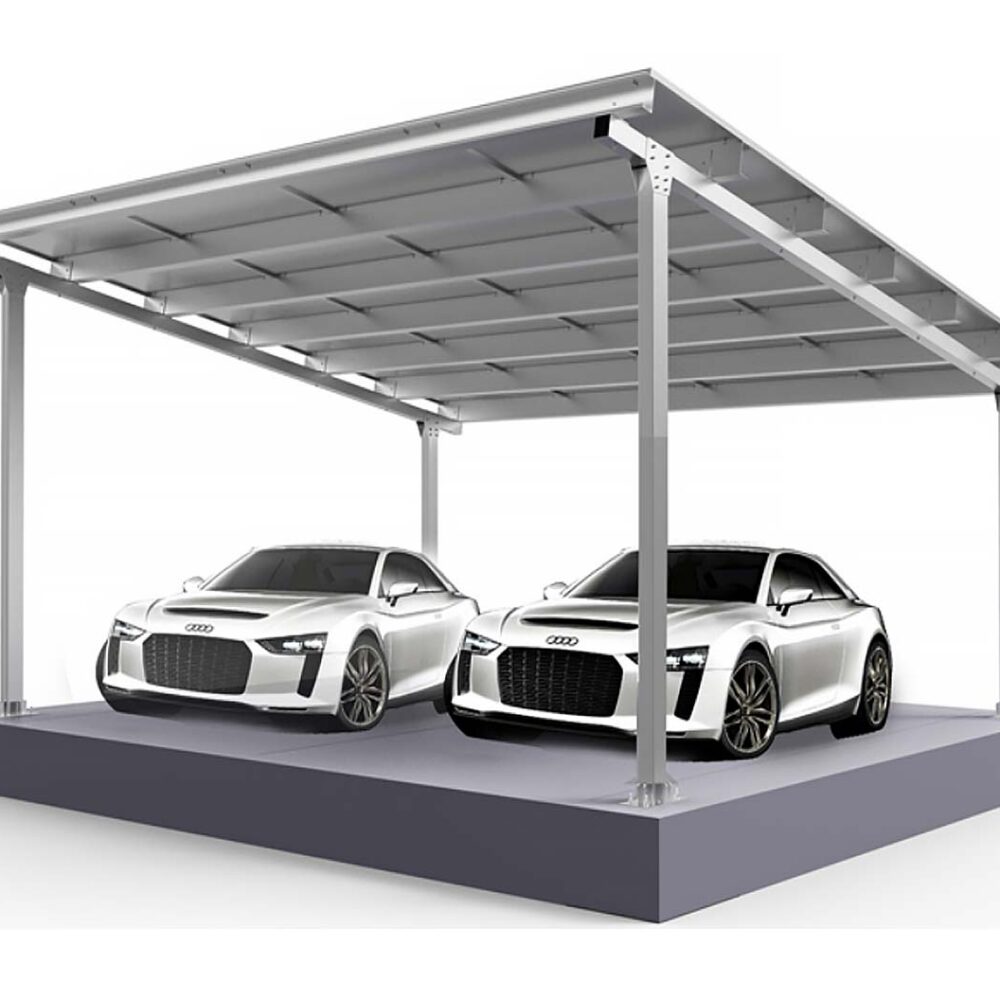

Carport Mounting System Detailed Specifications

Key Components and Specifications:

Materials:

–

Aluminum Alloy: Often AL6005-T5, known for its strength, corrosion resistance, and suitability for outdoor use.

–

Steel: Q235B or Q355B, hot-dipped galvanized steel, or stainless steel 304/410, may be used for columns, beams, and other structural components.

Weather Resistance:

–

Wind Load: Designed to withstand wind speeds up to 60m/s.

–

Snow Load: Capable of supporting snow loads up to 1.4KN/m², or even 10KN/m² in some cases.

Design:

–

Tilt Angle: Adjustable tilt angles, often between 5° and 15°, to optimize solar energy capture.

–

Waterproof Design: Integrated waterproofing to protect vehicles and electrical components.

–

Modular Design: Allows for flexible configurations, accommodating single or multiple parking spaces.

–

Customization: Available in various configurations, including single or double slope roofs, and different color options.

Lifespan:

–

Designed for a service life exceeding 25 years.

–

Installation: Pre-assembled Components: Some systems feature pre-assembled components to reduce installation time and labor costs.

–

Installation Manuals: Detailed installation instructions and manuals are often provided.

Other Features:

–

EV Charging Integration: Can be integrated with electric vehicle charging stations.

–

Corrosion Resistance: Surface treatments like anodization or hot-dip galvanizing provide enhanced corrosion protection.

–

Compliance: May be certified to standards like JIS C 8955-2017, UL2703, or IEC61215.

Cost Recovery:

–

Payback periods typically range from 5-8 years, depending on electricity consumption and government subsidies.

Specification of Carport Mounting System for Solar Panels

Item

Description / Specification

Mounting Type

Solar Carport Mounting System (Single or Double Post)

Application

Parking lots, residential carports, commercial buildings, EV charging stations

Structure Material

Hot-Dip Galvanized Steel / Aluminum Alloy (AL6005-T5)

Fastener Material

Stainless Steel (SUS304)

Design Types

Single Row, Double Row (Back-to-Back), Cantilever Type

Tilt Angle

0° – 15° (depending on sun orientation and water drainage)

Mounting Orientation

Portrait or Landscape

Panel Fixation

Mid-clamps and End-clamps

Roofing Option

With or without metal sheets / glass panels under the solar modules

Wind Load Resistance

Up to 160–180 km/h

Snow Load Resistance

Up to 2.0 kN/m² (site-specific)

Waterproofing Option

Optional integrated gutter and drainage system

EV Charging Compatibility

Can integrate EV chargers or battery storage systems

Cable Management

Concealed cable trays or inner-post routing

Ground Clearance

2.0 – 3.5 meters (adjustable based on vehicle type)

Installation Method

Bolted foundation, Concrete footings, or Ground Screws

Expected Lifespan

≥ 25 years

Compliance Standards

AS/NZS 1170, JIS C8955, UL 2703, IEC 61215, ISO 9001

Carport Solar Mounting System Type-AD5500-SA

Product Characteristics

Model No.

Type-AD5500-SA

Product Warranty

10 Years

System Overview

Type

Carport

Mounting System Arrangement

Rows

Mounting System Arrangement

Framed

Panel Framing

Landscape

Tilt Angle

5-60 °

Wind Load

288 km/h

Snow Load

1.6 kN/m2

General Data

Supporting Structure Materials

Aluminium, Galvanized Steel

Small Parts Materials

Aluminium, Galvanized Steel
