Description
Key Components and Specifications: |
||
– |

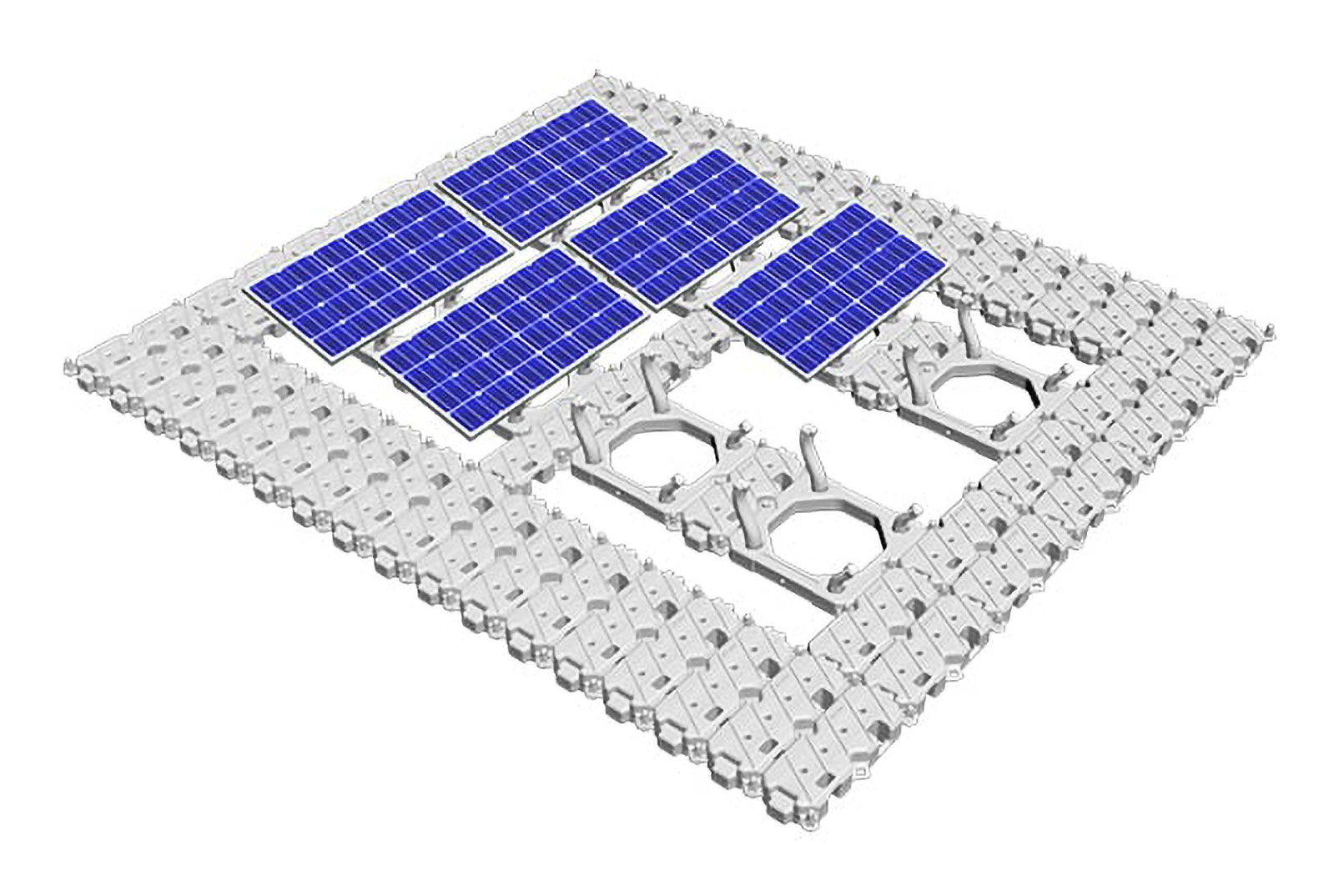

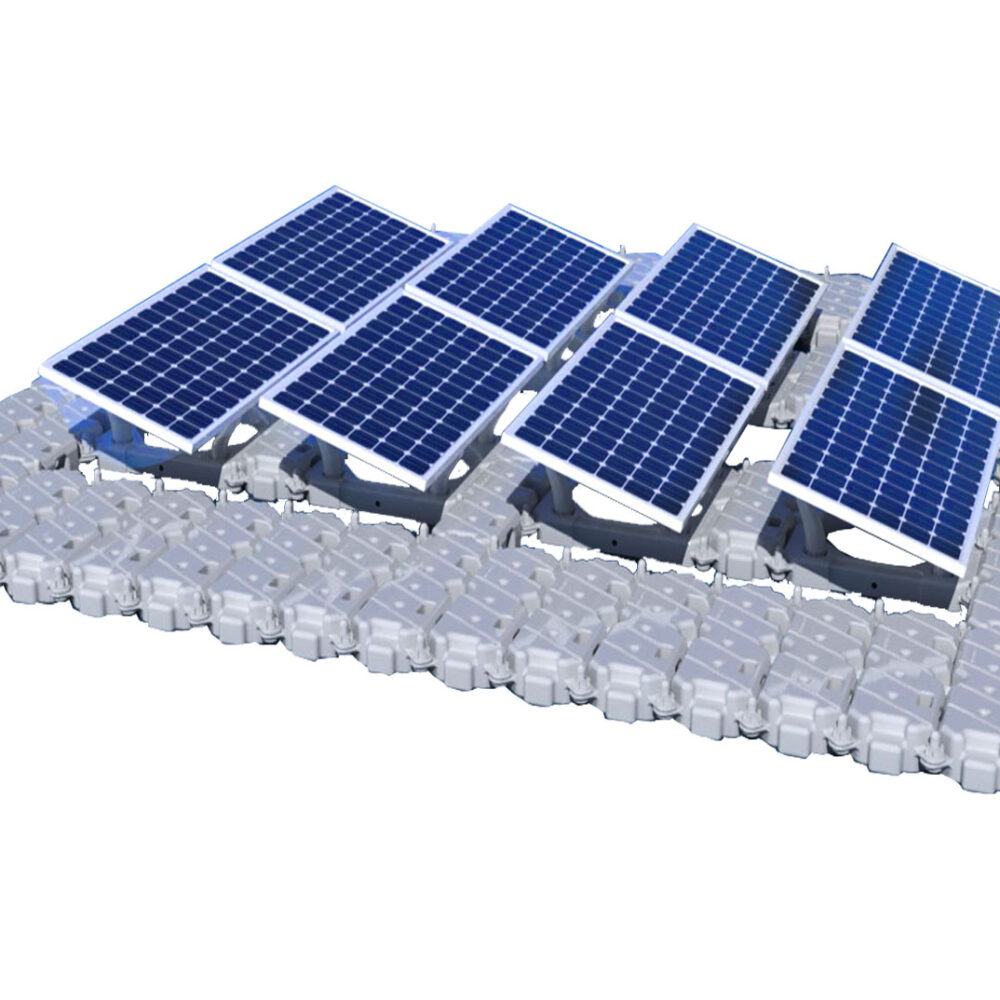

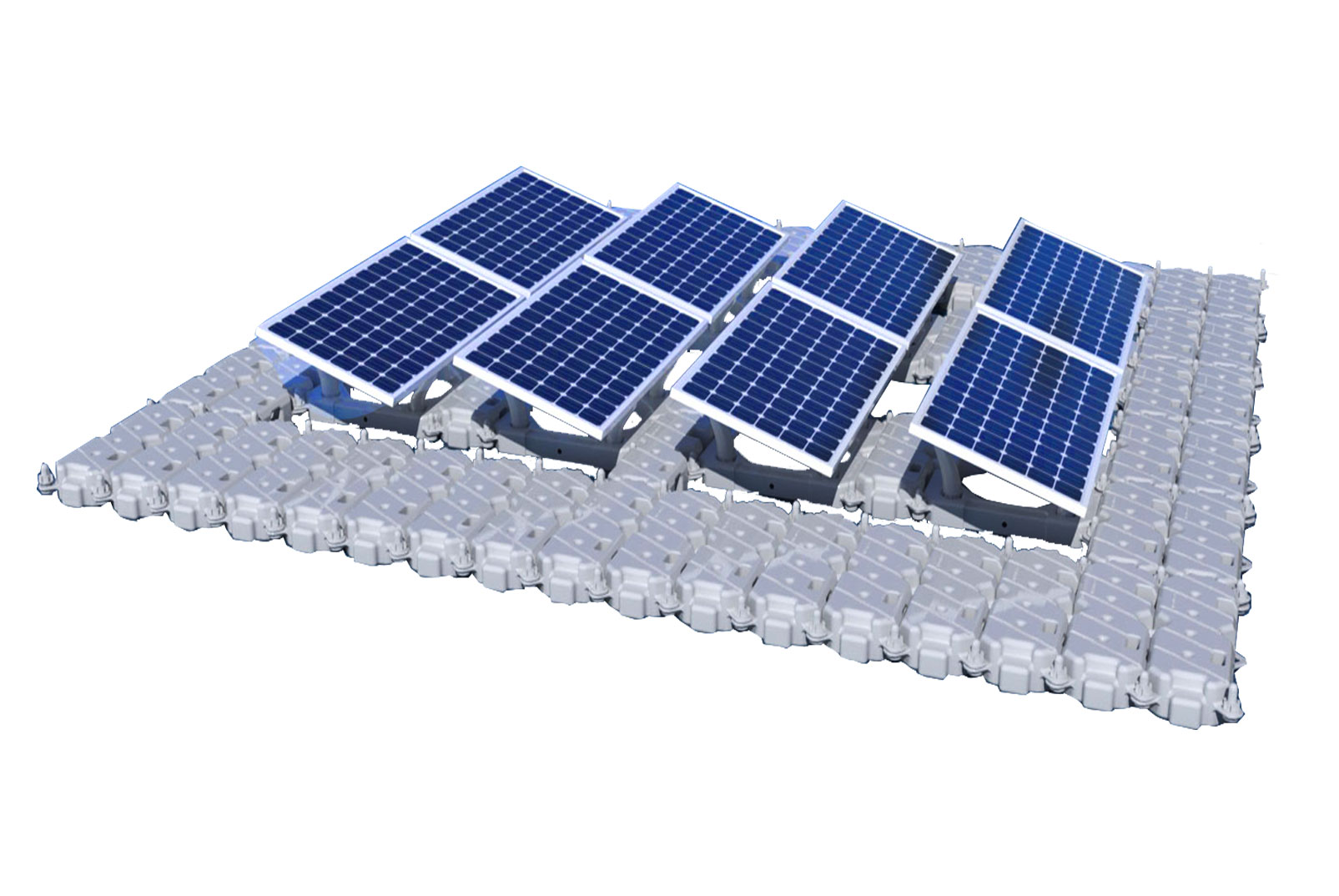

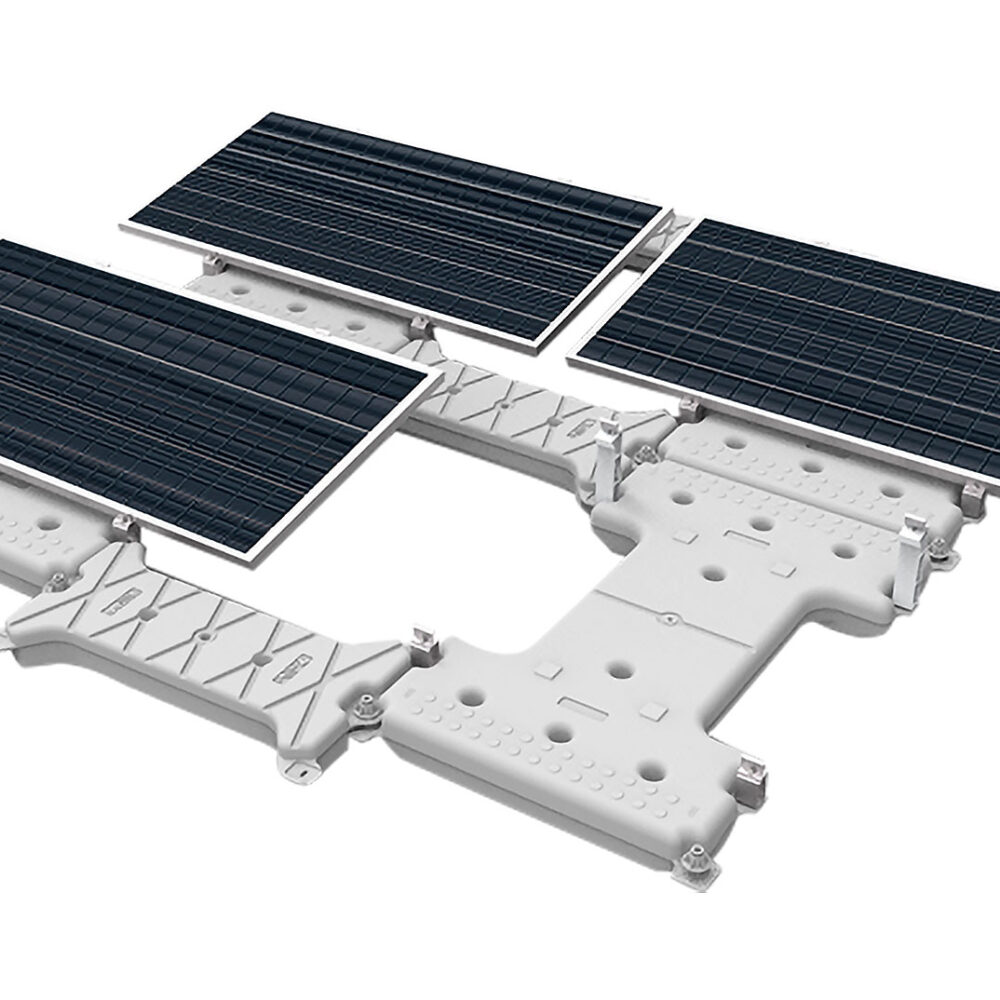

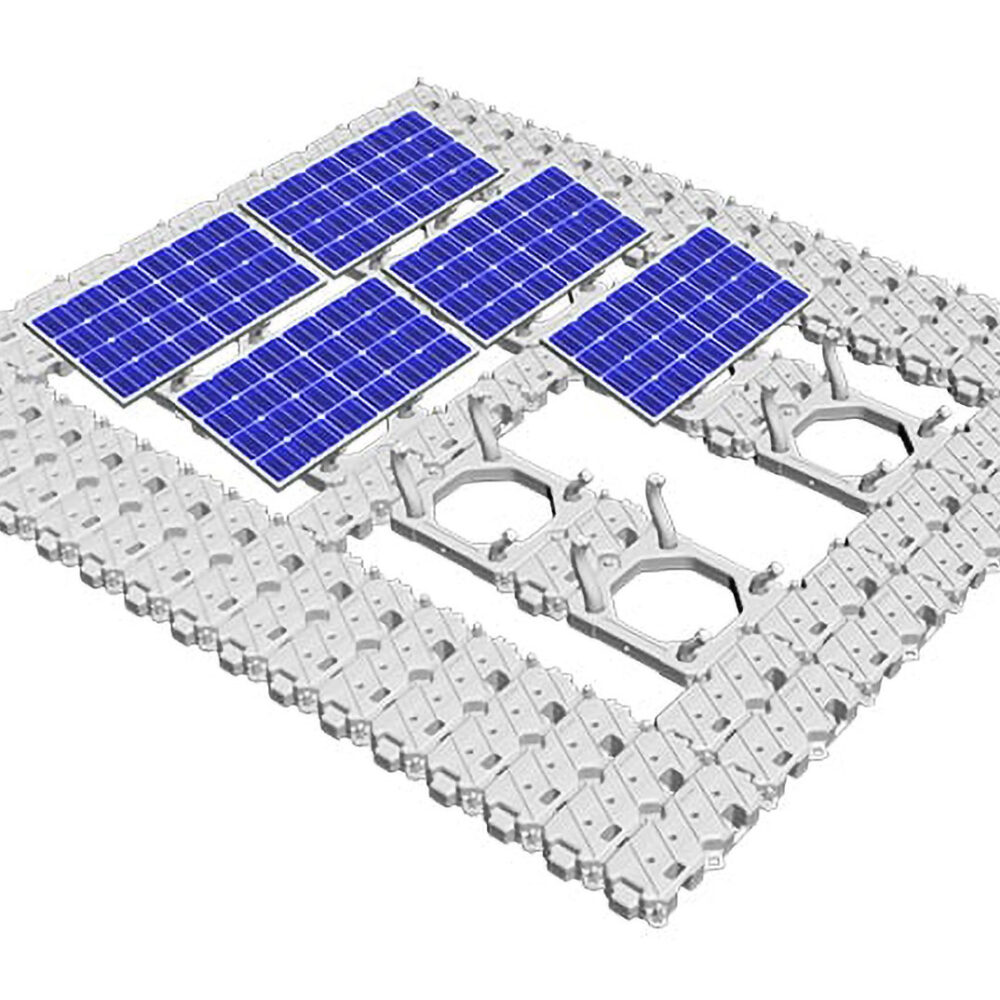

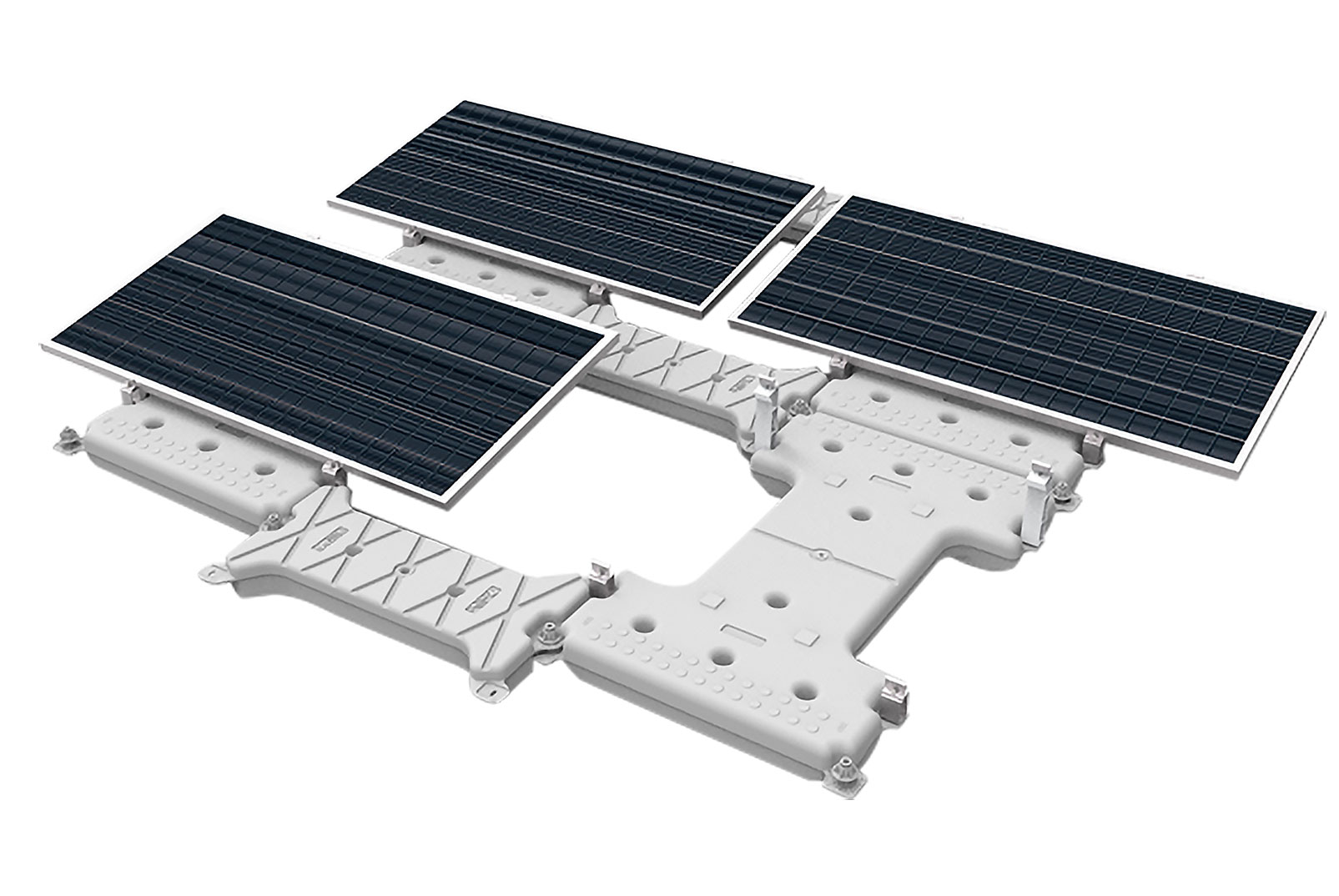

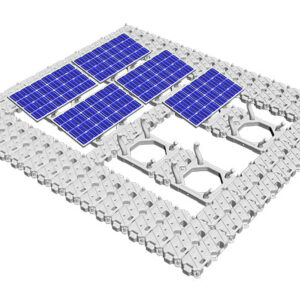

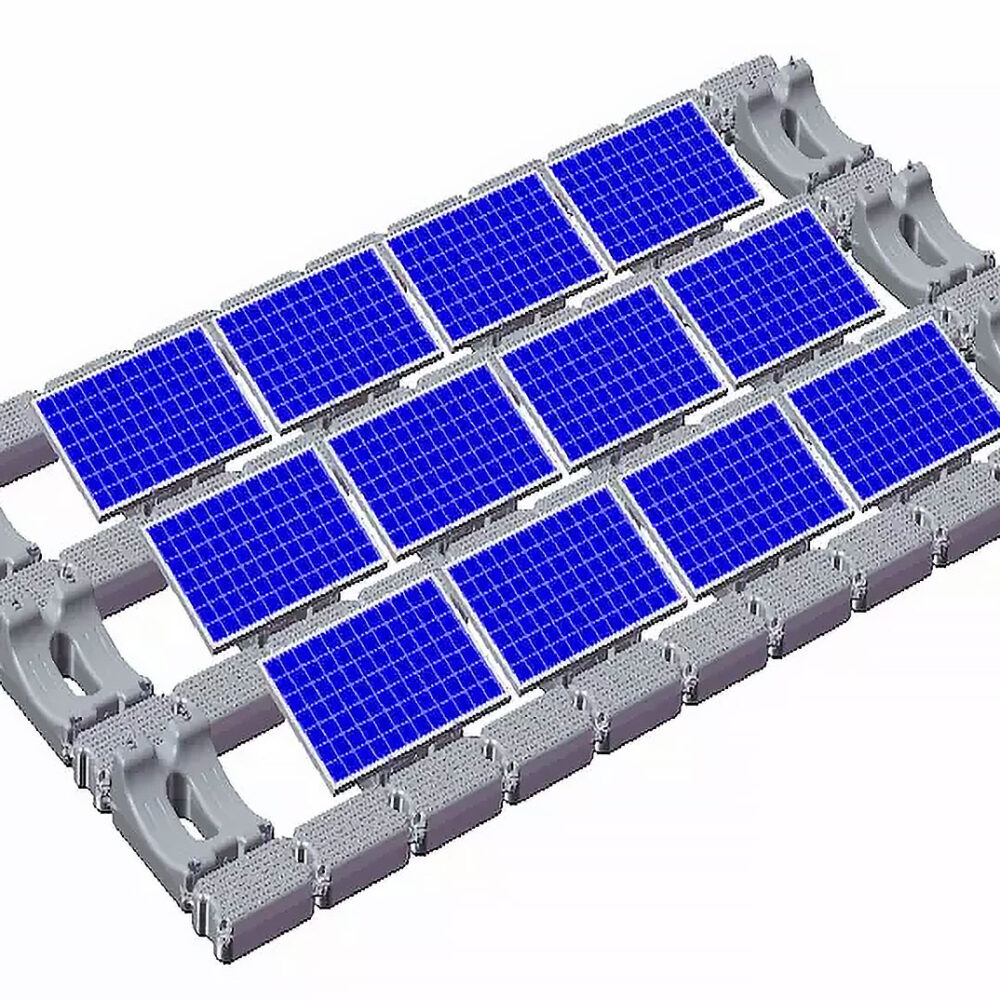

Floaters/Pontoons: |
|
|
These are the buoyant structures that support the solar panels and are typically made of HDPE for its durability and resistance to UV, water absorption, and aging. |
|
– |

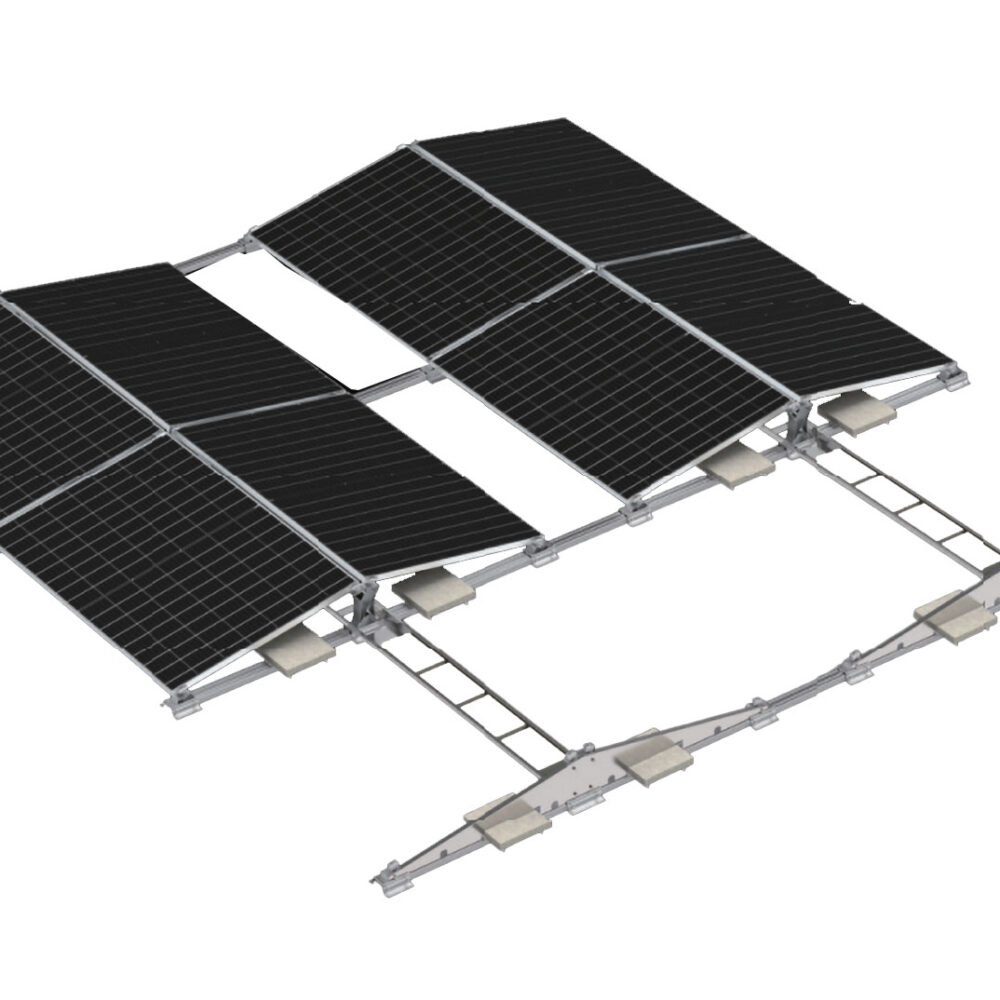

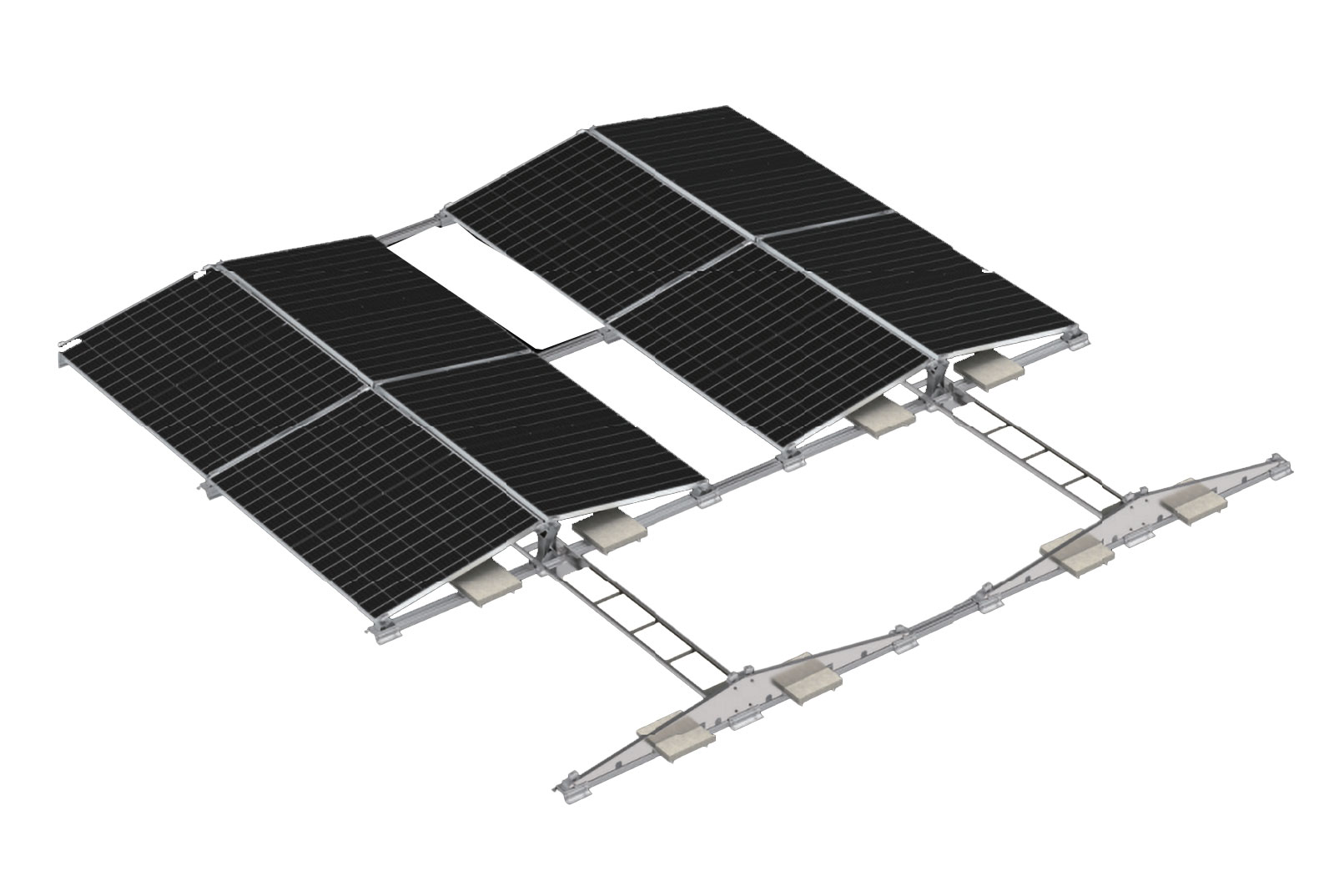

Mounting Structure: |
|
|
This framework holds the solar panels securely on the floaters and can be made of materials like aluminum alloy or carbon steel, depending on the specific system. |
|
– |
Anchoring System: |
|
|
This system secures the entire floating platform to the waterbed or shoreline. Options include anchors, ropes, and elastic springs, chosen based on the water body’s characteristics and water level variations. |
|
– |

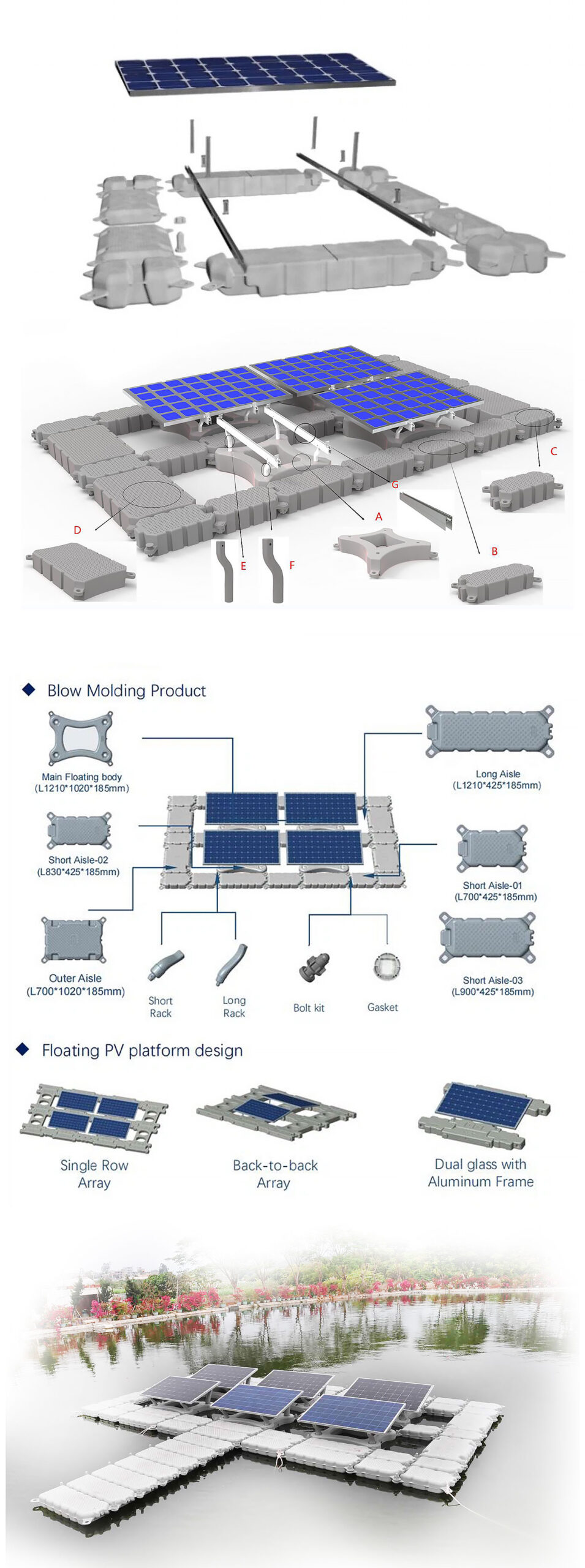

Modular Design: |
|
|
Floating mounting systems often utilize a modular design, allowing for easy expansion and customization. |
|
– |
Connectors and Fasteners: |
|
|
These components, often made of materials like zinc-nickel alloy, HDPE, or Q235B steel, connect the various parts of the system. |
|
Design and Functionality |
||
– |
Tilt Angle: |
|
|
The tilt angle of the solar panels can be adjusted to optimize energy generation, often within a range of 0 to 15 degrees. |
|
– |
Installation: |
|
|
These systems are designed for relatively quick and easy installation, often with pre-assembled components to save on labor |
|
– |
Maintenance: |
|
|
The systems are designed to be easily maintained, with features like integrated walkways for access to the panels. |
|
Advantages of Floating Mounting Systems: |
||
– |
Space Optimization: They utilize existing water bodies, freeing up land for other uses. |
|
– |
Increased Efficiency: The cooling effect of the water can improve the performance of the solar panels. |
|
– |
Reduced Evaporation: Floating solar panels can help reduce water evaporation from the water body. |
|
– |
Algae Growth Inhibition: They can help reduce algae growth in the water. |
|
Specific Examples: |
||
– |
Intech Floating-PV-System: |
|
|
Uses a 15° module tilt for a self-cleaning effect and offers an integrated walkway for maintenance. |
|
– |
Mibet Floating Solar Mounting System G4N+: |
|
|
Features a modular design for easy installation and can be configured for various array designs. |
|
– |
MRac Floating PV Mounting System G4S: |
|
|
Offers different tilt angles (5°, 10°, 15°) and can handle wind speeds up to 51m/s and snow loads up to 1KN/m2. |
|
|
||
Specification of Flat Roof Mounting System for Solar Panels |
||
Item |
Description / Specification |
|
Mounting Type |
Floating Solar Mounting System (Floating PV / FPV) |
|
Application |
Lakes, reservoirs, water treatment plants, irrigation ponds |
|
Float Material |
High-Density Polyethylene (HDPE), UV-resistant and non-toxic |
|
Structure Material |
Aluminum Alloy (AL6005-T5) or Hot-Dip Galvanized Steel (for panel support) |
|
Buoyancy per Float |
~150–200 kg (depending on model and water level) |
|
Tilt Angle |
5° – 15° (fixed), optimized for sun exposure on water |
|
Mounting Orientation |
Portrait or Landscape |
|
Wind Load Resistance |
Up to 150–180 km/h (site dependent) |
|
Wave Resistance |
Up to 0.5 m – 1.5 m wave height |
|
Snow Load Resistance |
Up to 1.5 – 2.0 kN/m² |
|
Anchor System |
Mooring system (anchors + ropes/cables, depending on depth and wind) |
|
Cable Management |
UV-resistant conduits or floating cable trays |
|
Environmental Resistance |
UV-resistant, anti-algae, anti-corrosion |
|
Drainage Design |
Integrated holes or channels to avoid water accumulation |
|
Fire Safety |
Fire retardant HDPE (optional), IEC 61730 / UL 94-V0 compliant |
|
Expected Lifespan |
≥ 25 years |
|
Compliance Standards |
IEC 61215, IEC 61730, ISO 9001, TUV, UL |
|
|
||
Examples of specifications for some types of Floating Mounting System |
||
SGF-TS30 |
||
Product Characteristics |
||
Model No. |
SGF-TS30 |
|
Product System Overview |
||
Type |
Floating |
|
Mounting System Arrangement |
Columns |
|
Panel Orientation |
Portrait, Landscape |
|
Snow Load |
1.65 kN/m2 |
|
Main Floating Body |
||
Materials |
HDPE |
|
Small Parts Materials |
Aluminum |
|
Dimension (L/W/H) |
2465 mm |
|
|
||
Floating Solar PV Structure System |
||
Product Characteristics |
||
Model No. |
Floating Solar PV Structure System |
|
Product Warranty |
10 Years |
|
Product System Overview |
||
Type |
Floating |
|
Panel Framing |
Framed, Unframed |
|
Tilt Angle |
0-15 ° |
|
Wind Load |
216 km/h |
|
Snow Load |
1 kN/m2 |
|
Main Floating Body |
||
Materials |
HDPE, Stainless Steel |
|
Small Parts Materials |
Aluminum, EPDM |
|
Dimension (L/W/H) |
1470 N |
|
|
||
FS-P1 |
||
Product Characteristics |
||
Model No. |
FS-P1 |
|
Product Warranty |
10 Years |
|
Product System Overview |
||
Type |
Floating |
|
Panel Framing |
Framed, Unframed |
|
Panel Orientation |
Portrait, Landscape |
|
Tilt Angle |
0-15 ° |
|
Wind Load |
200 km/h |
|
Snow Load |
0.65 kN/m2 |
|
Temperature Tolerance |
-40~85 °C |
|
Main Floating Body |
||
Materials |
HDPE, Stainless Steel |
|
Small Parts Materials |
Aluminum, EPDM |
|
Buoyancy |
880 N |
|
Thickness |
2 mm |
|
Dimension (L/W/H) |
774x774x445 mm |
|
|
||
GS-Floating Mounting System Solution |
||
Product Characteristics |
||
Model No. |
GS-Floating Mounting System Solution |
|
Product Warranty |
25 Years |
|
Product System Overview |
||
Type |
Floating |
|
Panel Framing |
Framed, Unframed |
|
Panel Orientation |
Portrait, Landscape |
|
Temperature Tolerance |
-40~100 °C |
|
|
|
|
SF-G4S |
||
Product Characteristics |
||
Model No. |
SF-G4S |
|
Product Warranty |
5 Years |
|
Product System Overview |
||
Type |
Floating |
|
Panel Framing |
Framed |
|
Panel Orientation |
Landscape |
|
Tilt Angle |
5-10 ° |
|
Wind Load |
144 km/h |
|
Snow Load |
1 kN/m2 |
|
Main Floating Body |
||
Materials |
HDPE |
|
Small Parts Materials |
Aluminum |
|
