Pitched Roof Mounting System Detailed Specifications

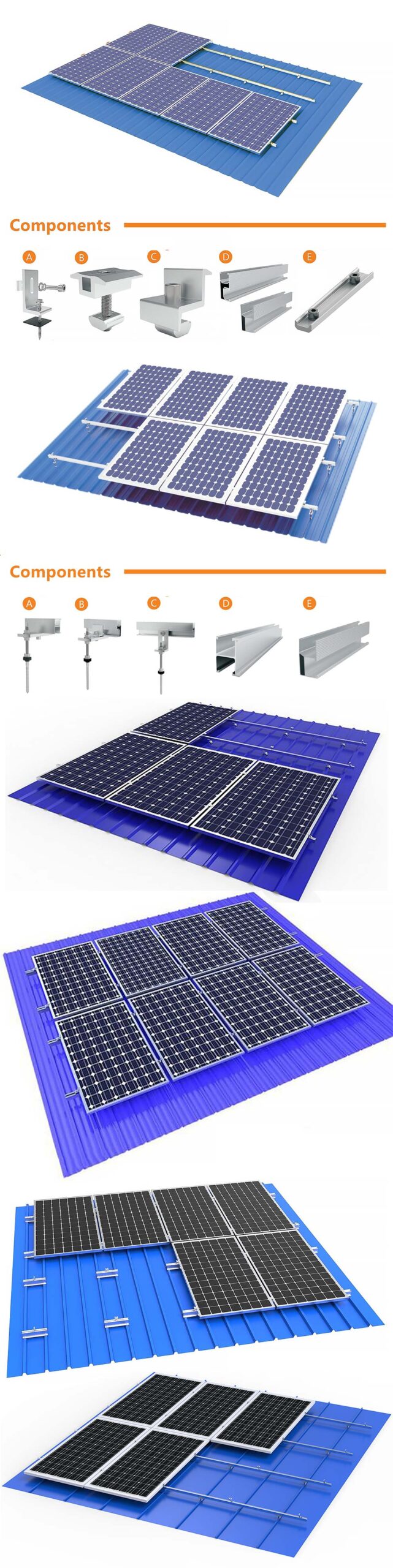

Key Components and Specifications:

–

Rails:

These provide the structural framework for attaching the solar panels. They can be made of aluminum or steel and are designed to handle wind and snow loads.

–

Mounting Feet/Hooks:

These secure the rails to the roof structure, often using screws, clamps, or specialized hooks that fit under or around tiles.

–

Clamps:

These hold the solar panels to the rails, ensuring they are firmly attached and properly spaced

–

Material Compatibility:

The mounting system components should be compatible with the roof material (e.g., tile, metal sheeting, slate) to ensure proper installation and long-term durability.

–

Weather Resistance:

Components should be made of corrosion-resistant materials (e.g., aluminum, stainless steel) to withstand harsh weather conditions.

–

Installation Considerations:

The system should be designed for easy and efficient installation, minimizing labor costs and potential roof damage.

–

Code Compliance:

The system should meet relevant building codes and standards for solar panel installations.

Specific types of pitched roof systems:

–

Tile Roof Mounting Systems:

Utilize tile hooks or specialized mounting feet that integrate with the tile pattern, often requiring no penetration through the tiles themselves.

–

Metal Roof Mounting Systems:

Employ mounting feet that fasten directly to the roof sheeting or substructure, potentially using self-tapping screws or specialized clamps.

–

Universal Systems:

Offer flexibility to accommodate various roof types and panel configurations, often using adjustable mounting feet and rails

Additional factors:

–

Roof Pitch:

The angle of the roof impacts the design of the mounting system and the type of components used.

–

Snow and Wind Loads:

The system must be designed to withstand the specific snow and wind loads in the installation location.

–

Grounding and Bonding:

Proper grounding and bonding of the system are essential for electrical safety.

–

Lightning Protection:

Consider integrating lightning protection measures, especially for systems installed on taller buildings.

Specification of Pitched Roof Mounting System for Solar Panels

Item

Description / Specification

Mounting Type

Pitched Roof Mounting System

Roof Types Supported

Tile Roof, Metal Roof, Asphalt Shingle Roof

Tilt Angle

Depends on roof slope (typically 15°–45°), or tilt-adjustable frames

Mounting Orientation

Portrait / Landscape

Mounting Method

Rail-based mounting using roof hooks, clamps, or L-feet brackets

Structure Material

Aluminum Alloy (AL6005-T5)

Fasteners Material

Stainless Steel (SUS304)

Rail Type

Extruded aluminum rail with anodized finish

Panel Fixation

Mid-clamps and End-clamps

Installation Method

Roof-penetrating or non-penetrating depending on roof type

Wind Load Resistance

Up to 160 km/h (as per site conditions)

Snow Load Resistance

Up to 1.4 – 2.4 kN/m² (depending on roof location)

Waterproofing

EPDM rubber gaskets, flashing plates, or silicone sealant

Adjustability

Vertical and horizontal alignment adjustments supported

Fire Resistance

UL 2703, IEC 61730 certified components

Expected Lifespan

≥ 25 years

Compliance Standards

AS/NZS 1170, DIN 1055, UL 2703, JIS C8955

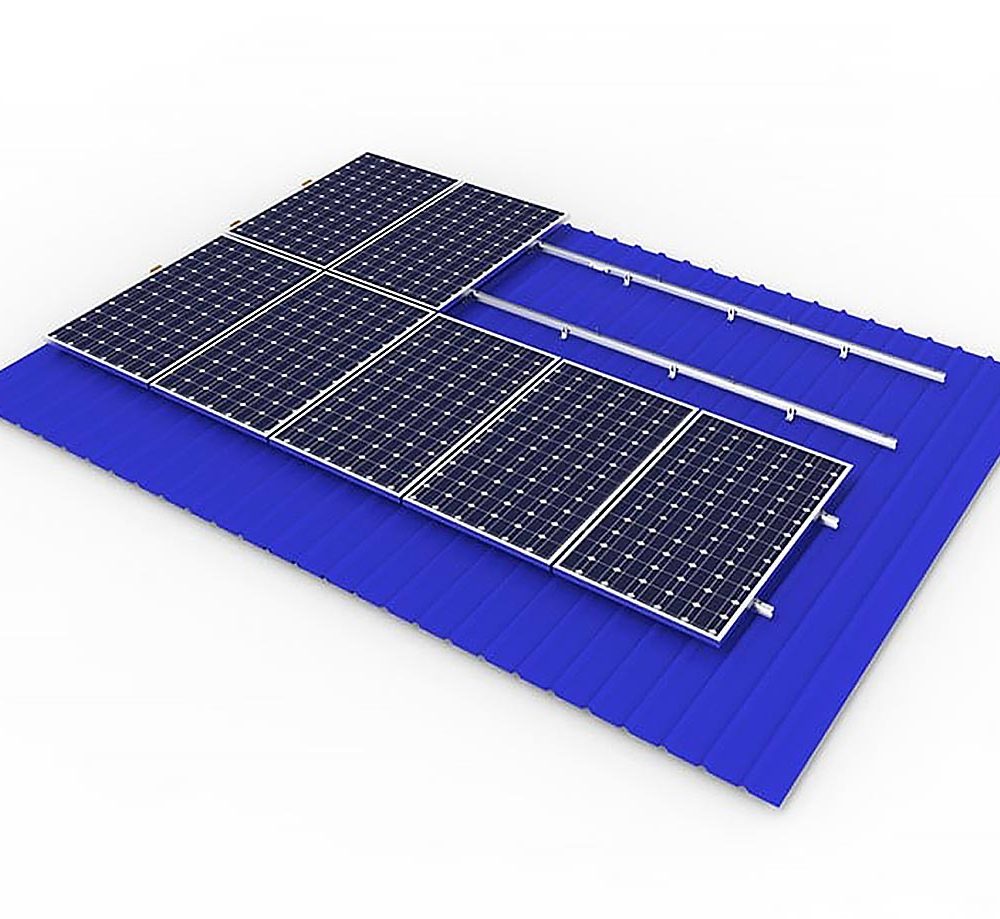

FON-SAN-Kit 5000 Metal Roof Solar Mounting System

Product Characteristics

Model No.

FON-SAN-Kit 5000

Product Warranty

15 Years

System Overview

Type

Pitched Roof

Mounting System Arrangement

Rows

Panel Framing

Framed, Unframed

Panel Orientation

Portrait, Landscape

Roof Types

Seam Metal, Steel

Roof Pitch

0-15 °

Wind Load

216 km/h

Snow Load

1.4 kN/m2

General Data

Supporting Structure Materials

Aluminium

Small Parts Materials

Aluminium, Stainless Steel
