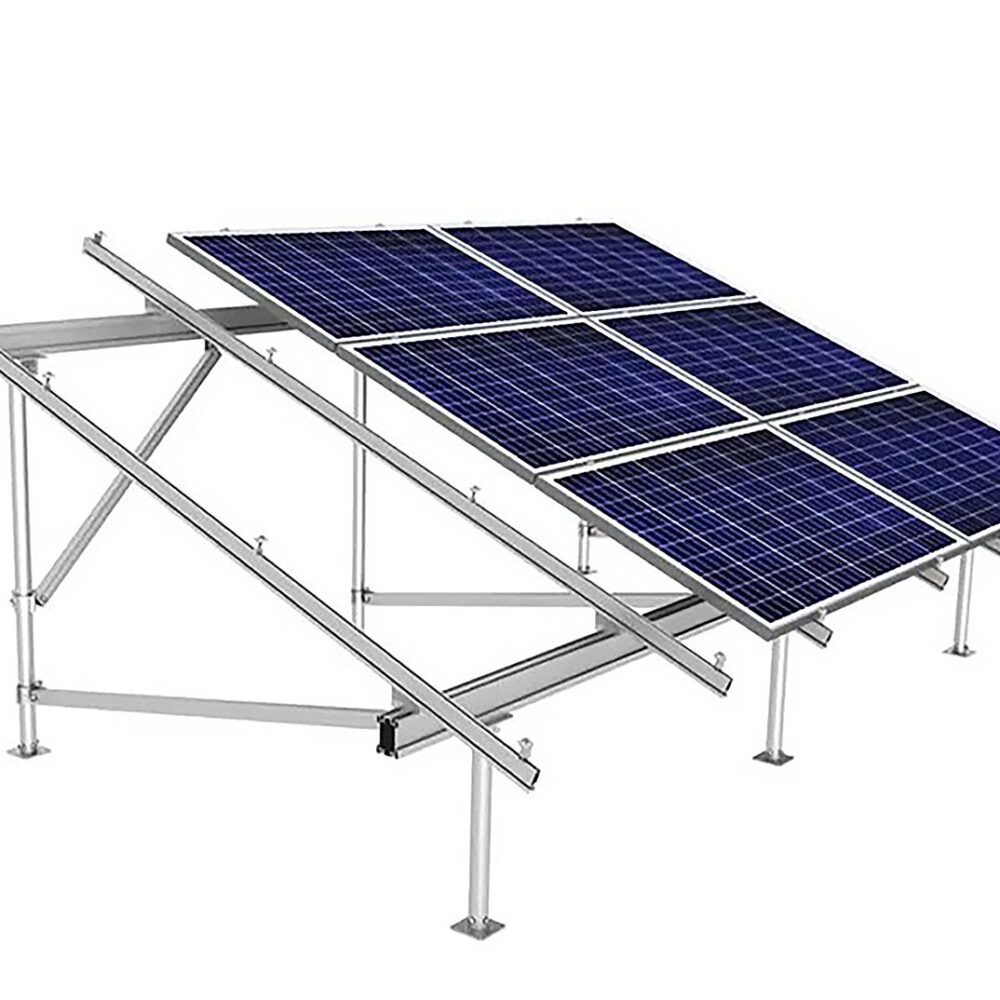

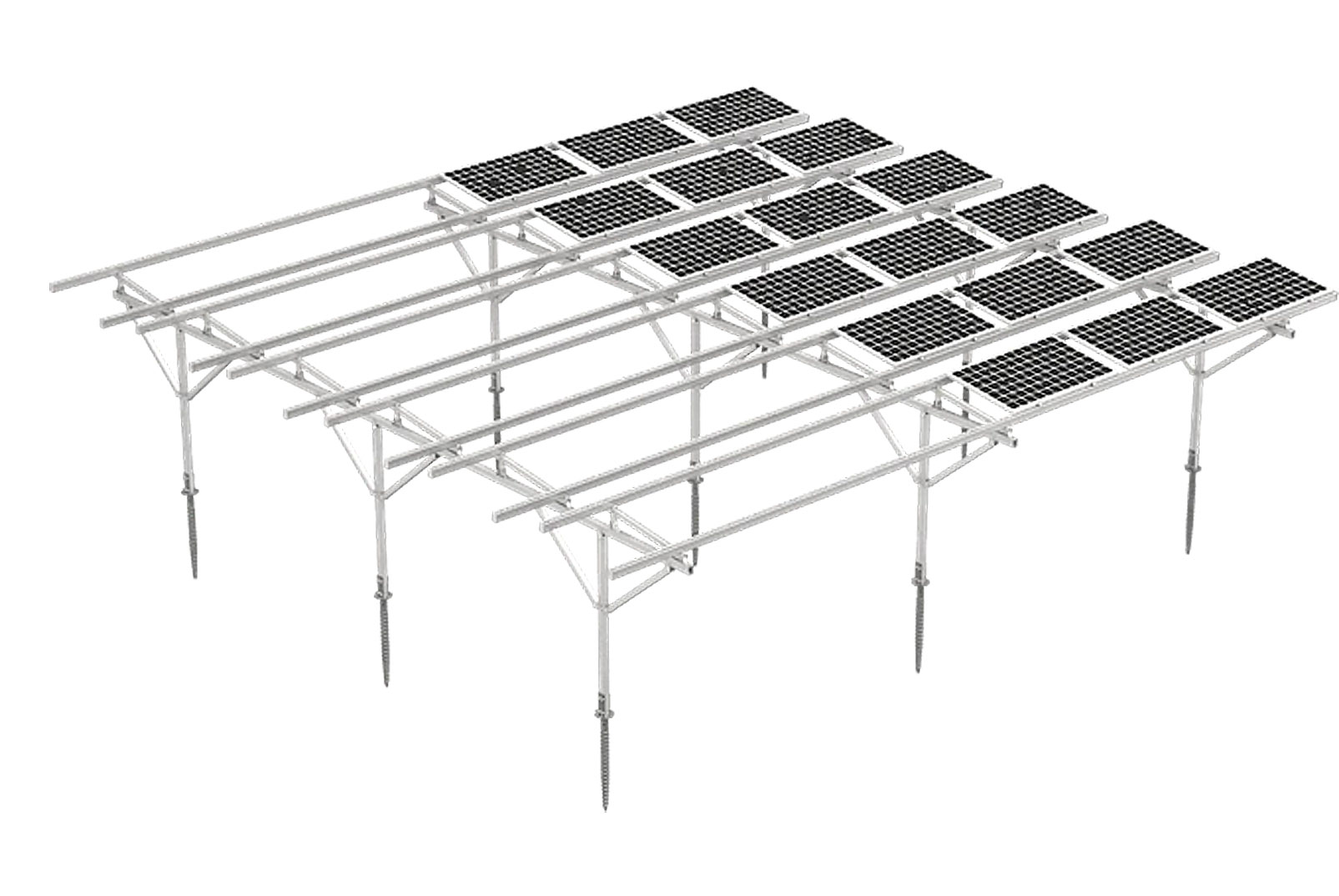

Description
|
Key Components and Specifications: |
||
|
– |

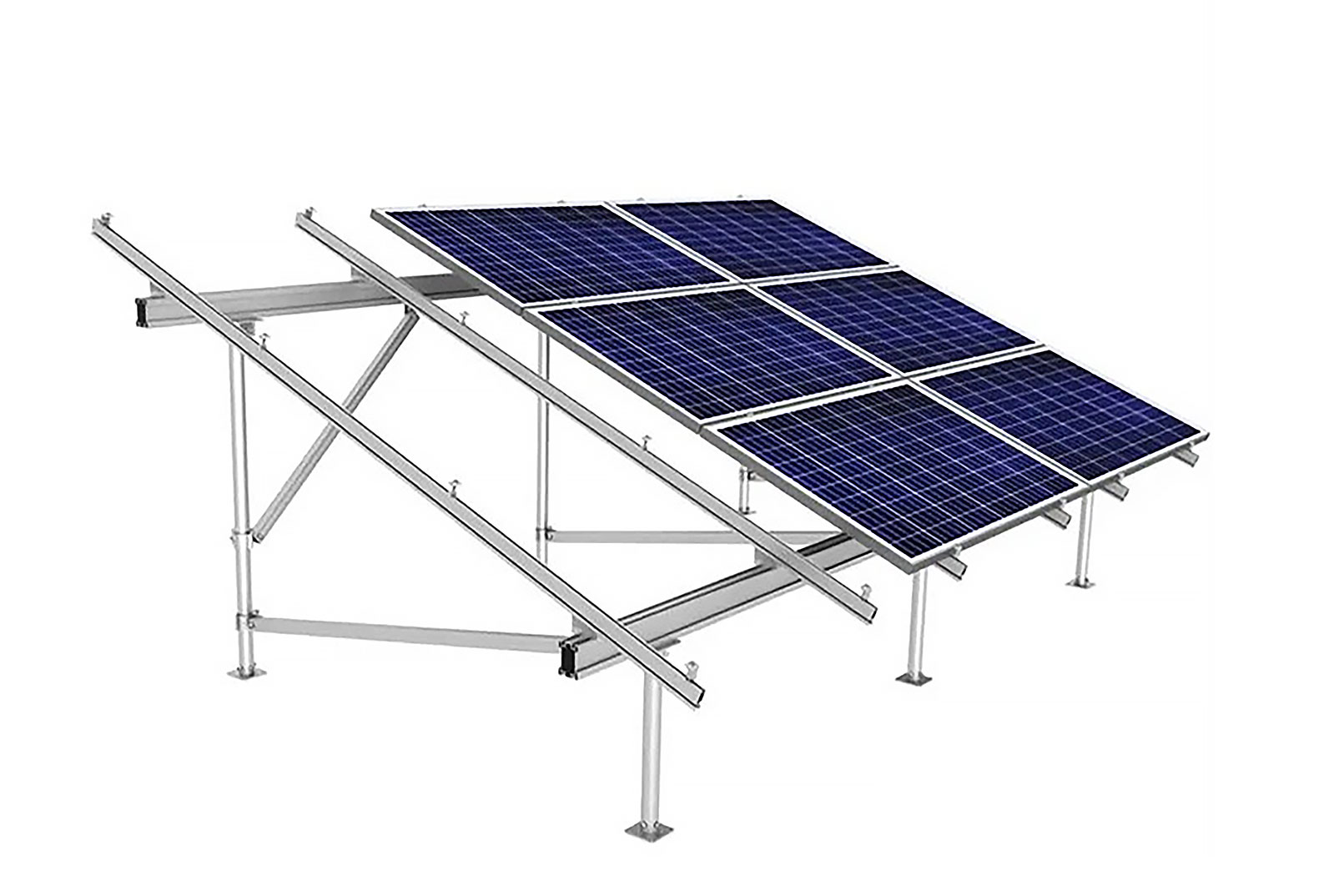

Support Structure: |
|
|
|
This is the framework that holds the solar panels. It can be made of various materials like aluminum or steel, with options for pre-engineered systems or custom-built solutions. |
|
|
– |
Foundations: |
|
|
|

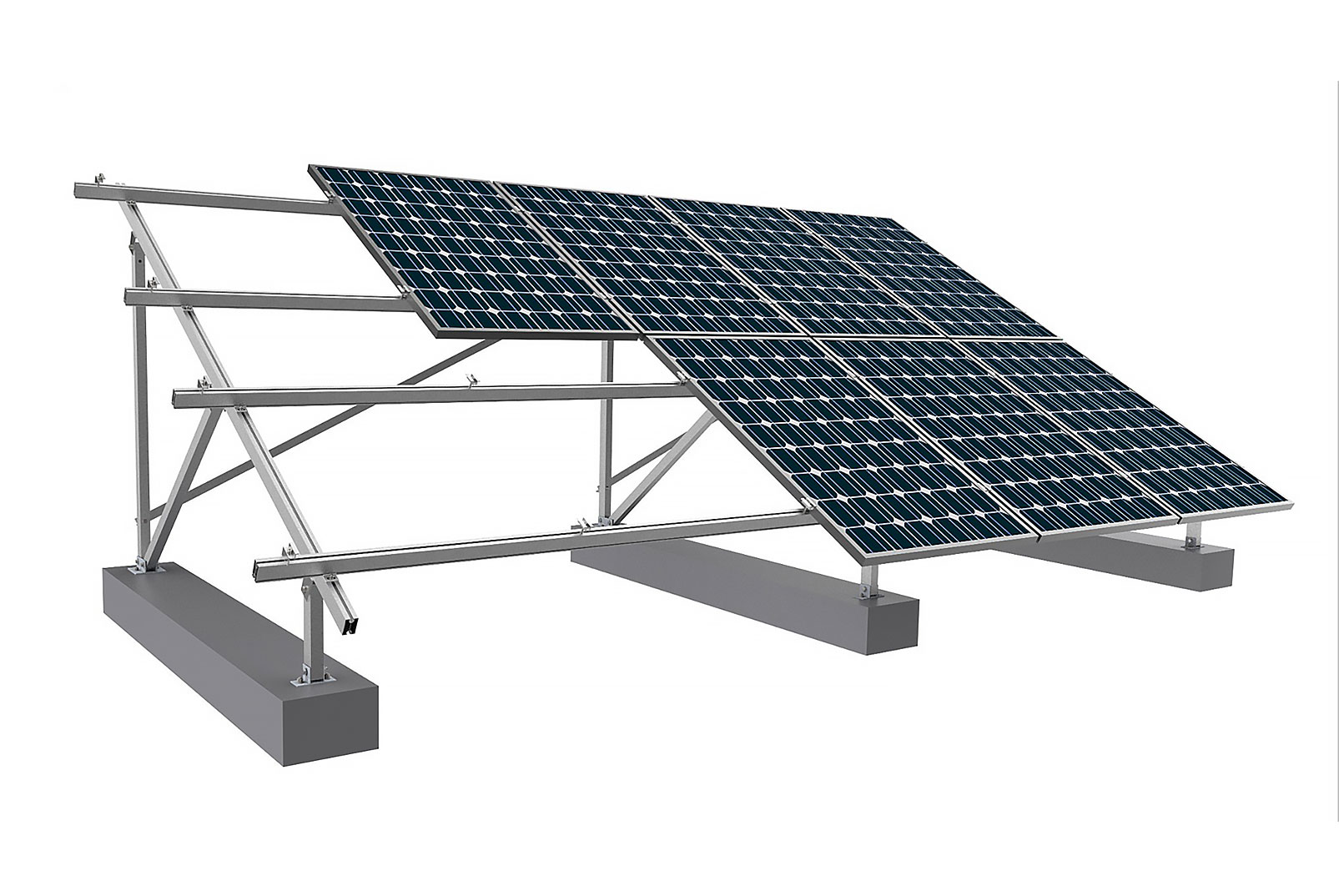

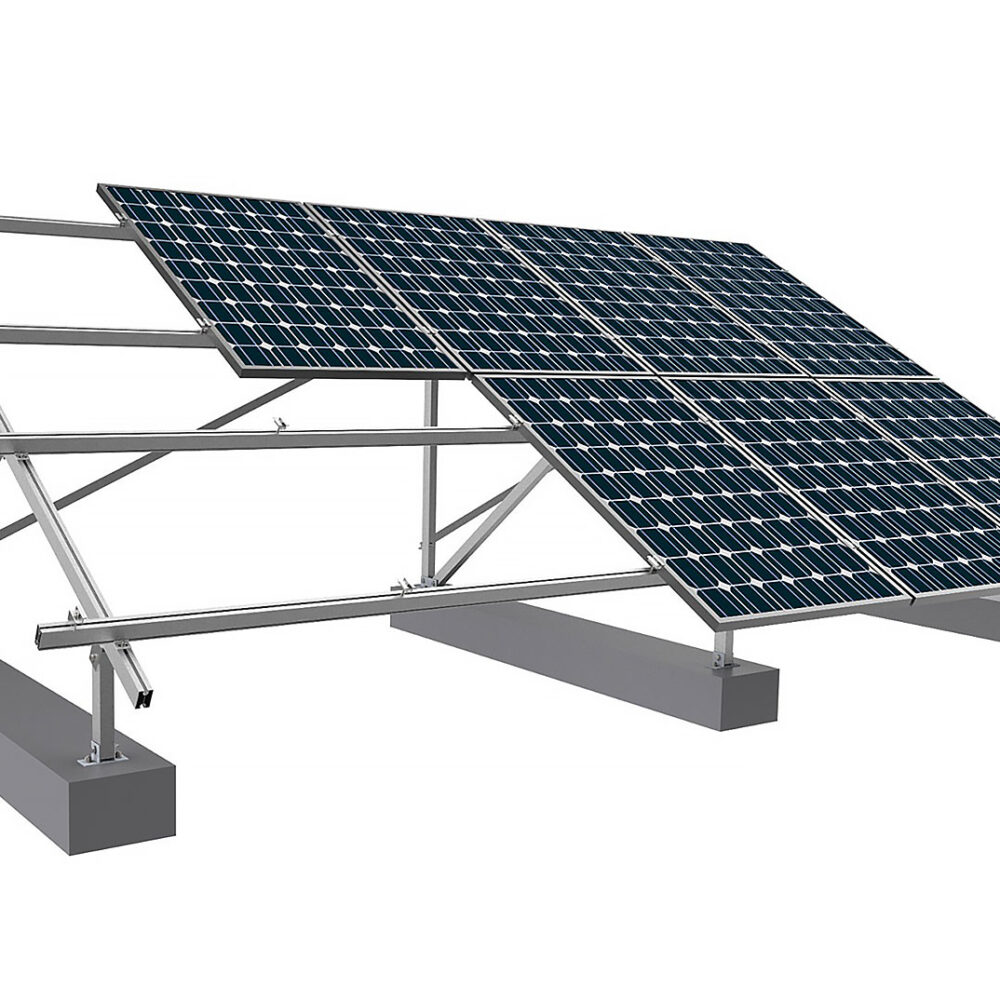

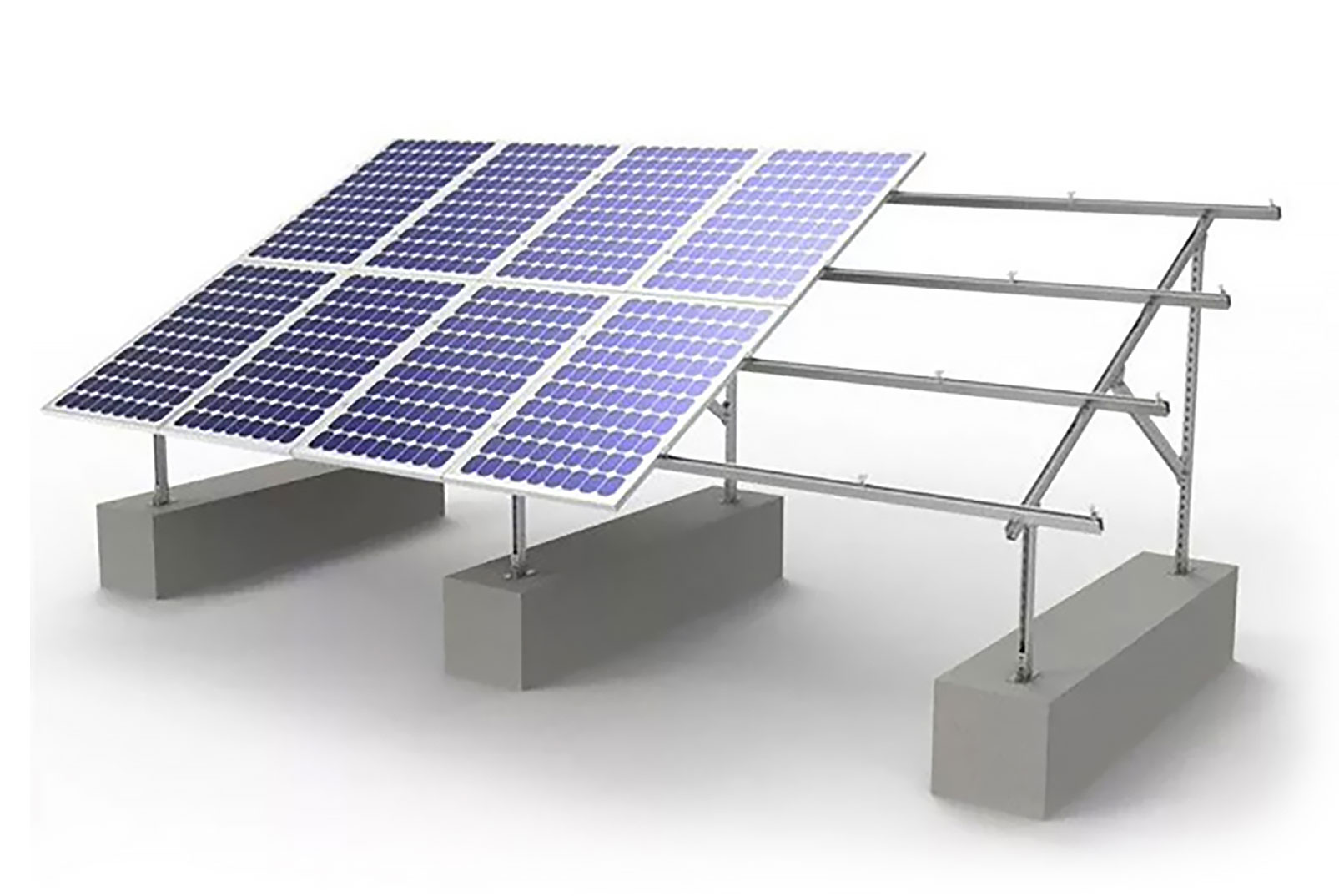

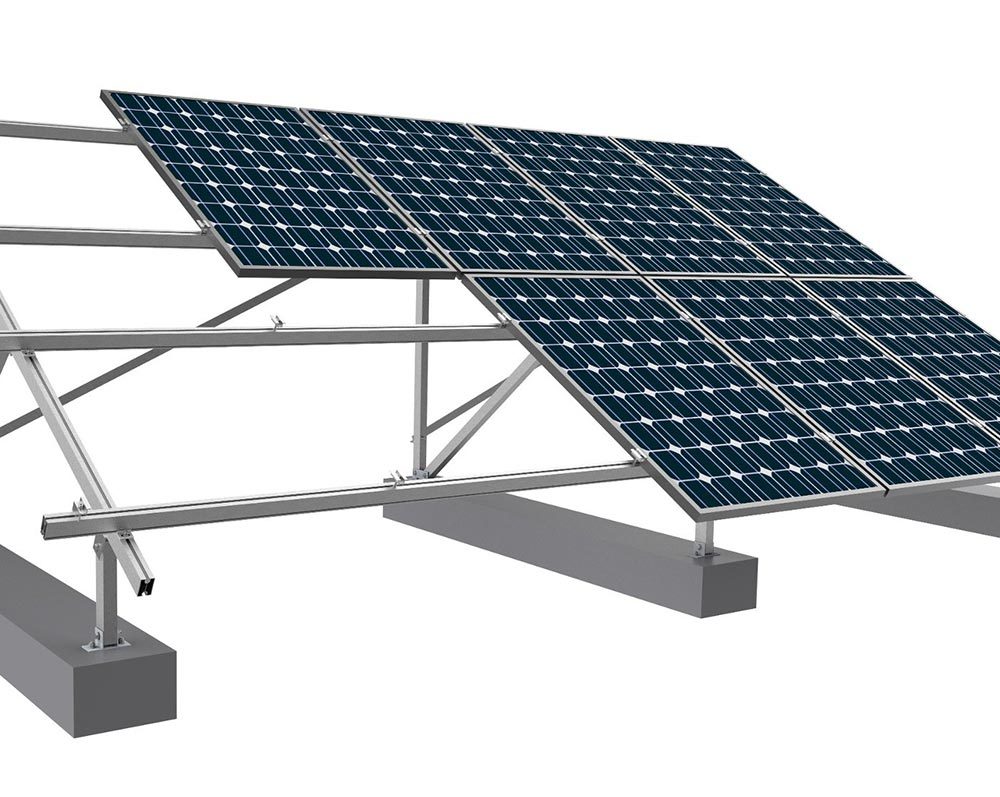

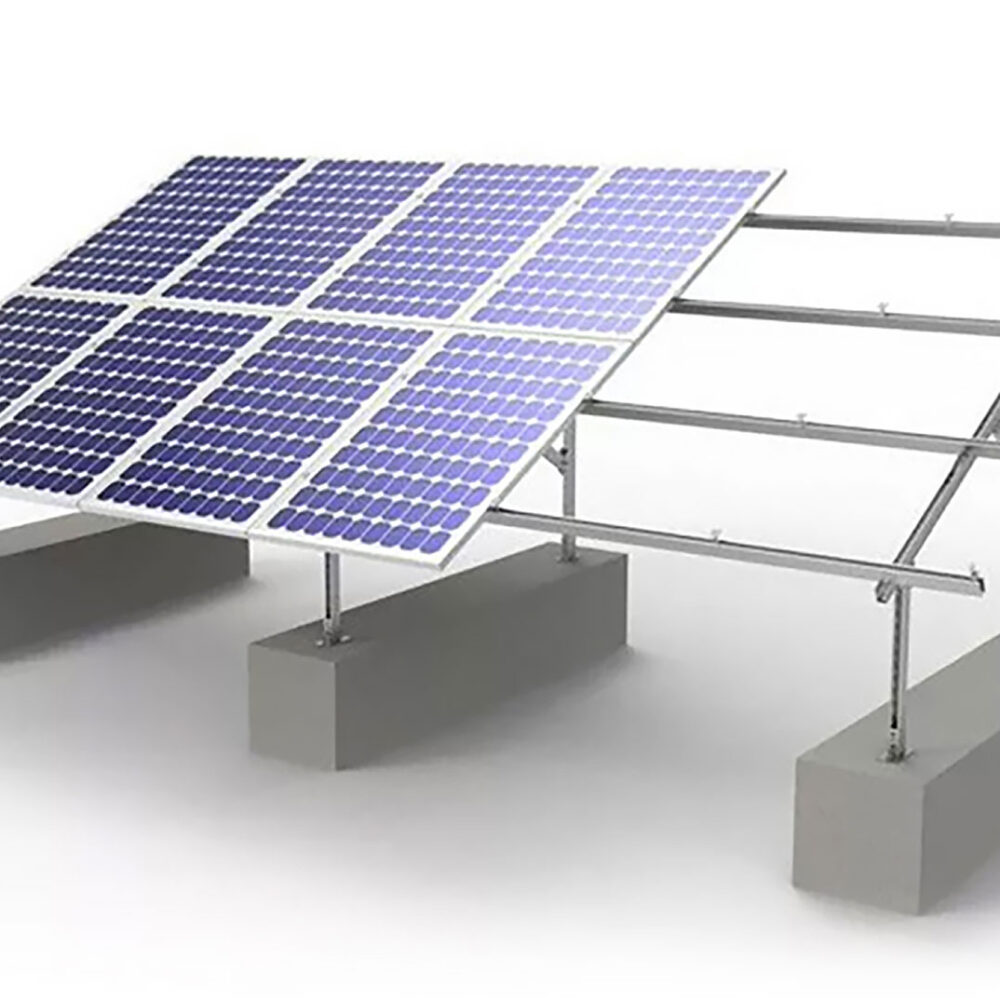

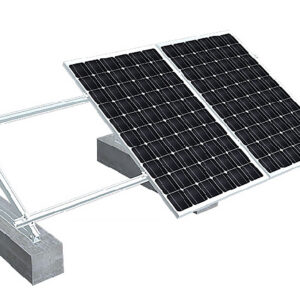

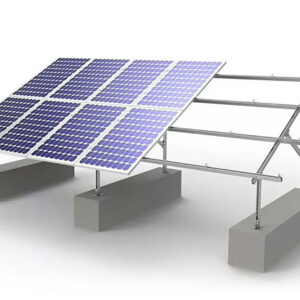

Ground mounts can utilize different foundation types, including ballasted (concrete blocks), screw piles, or direct-fix methods, depending on site conditions and project requirements. |
|
|
– |

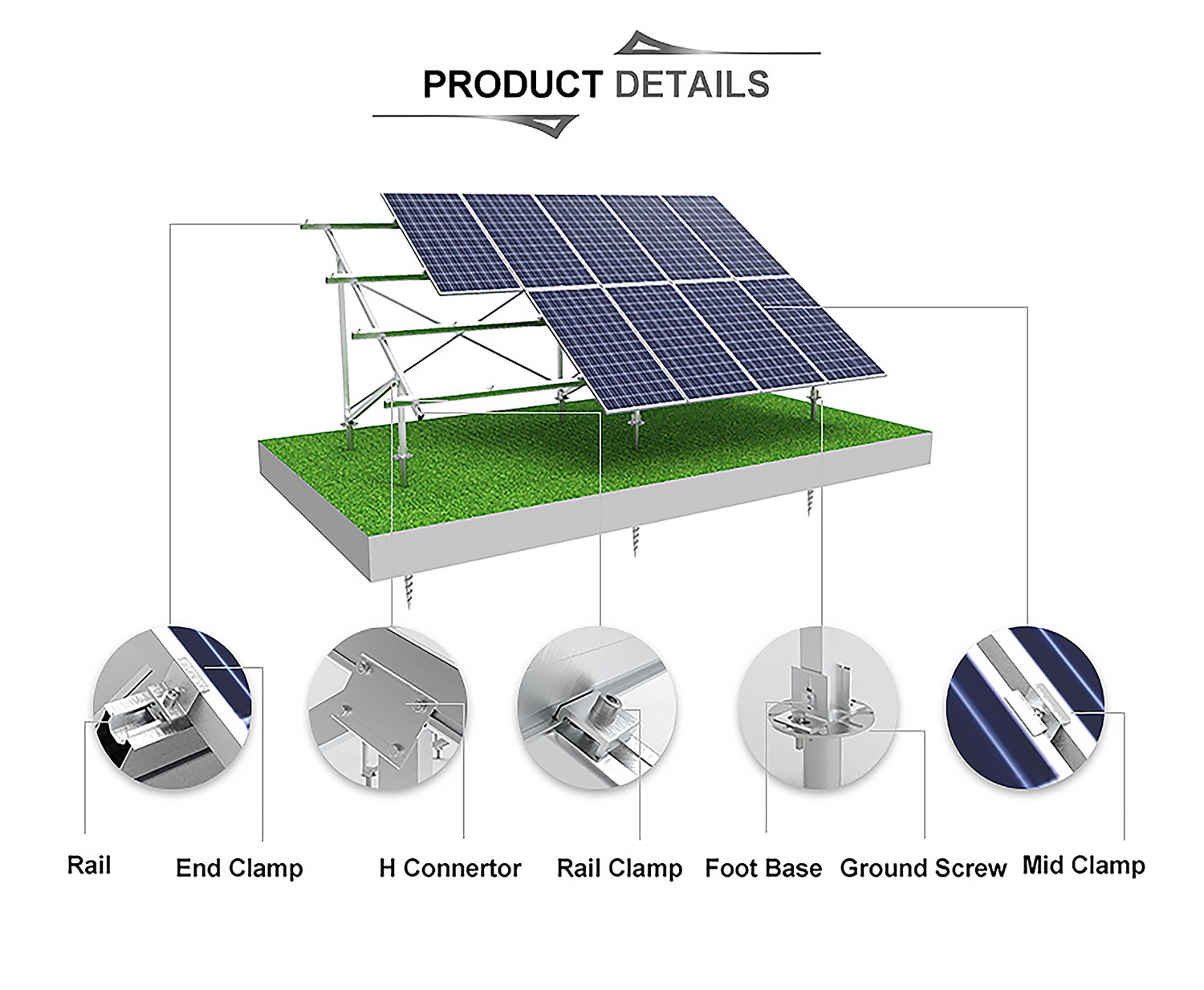

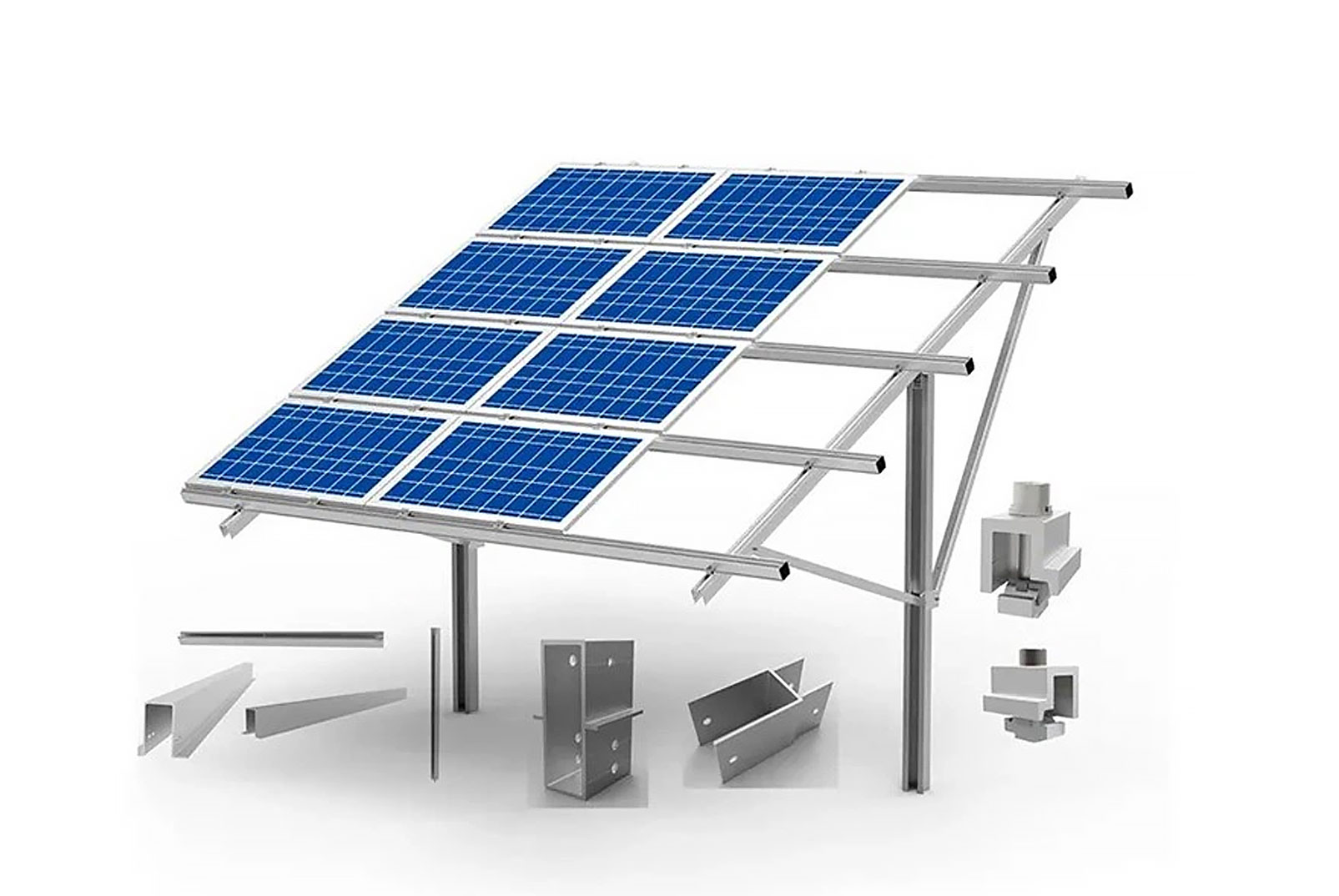

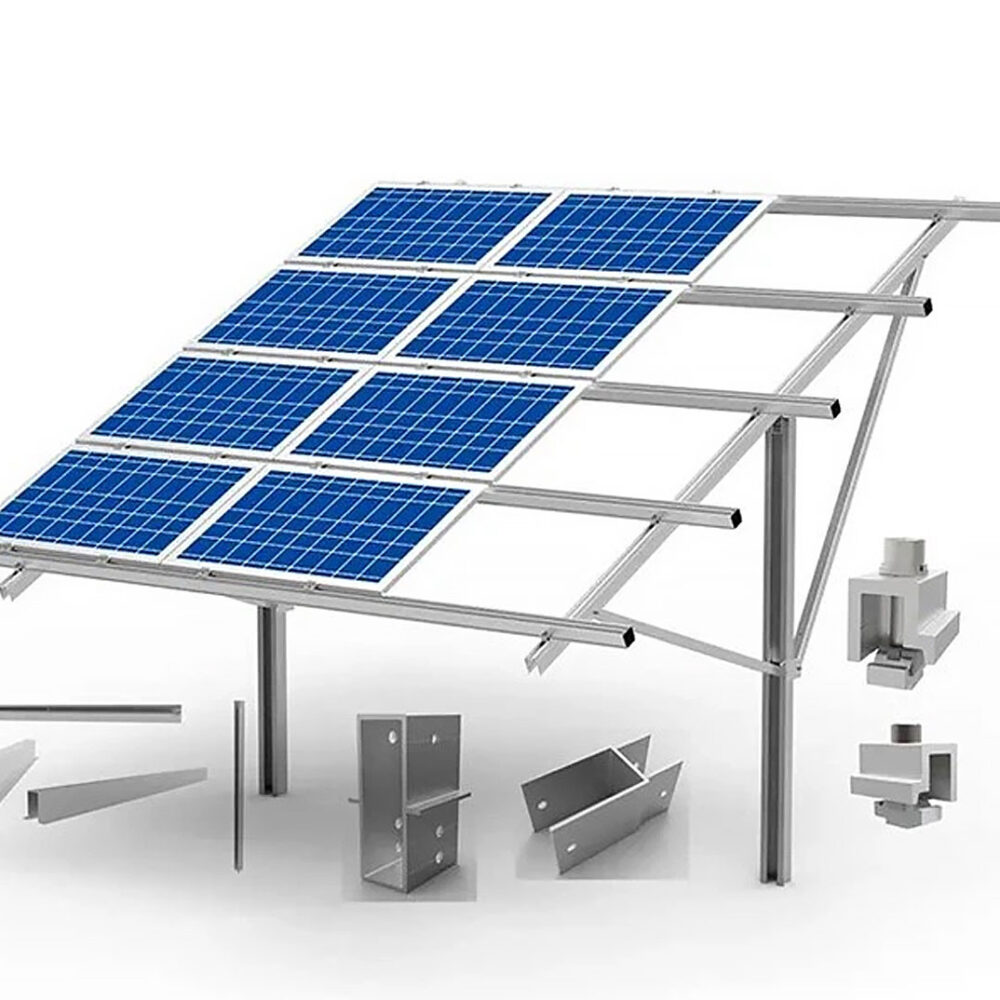

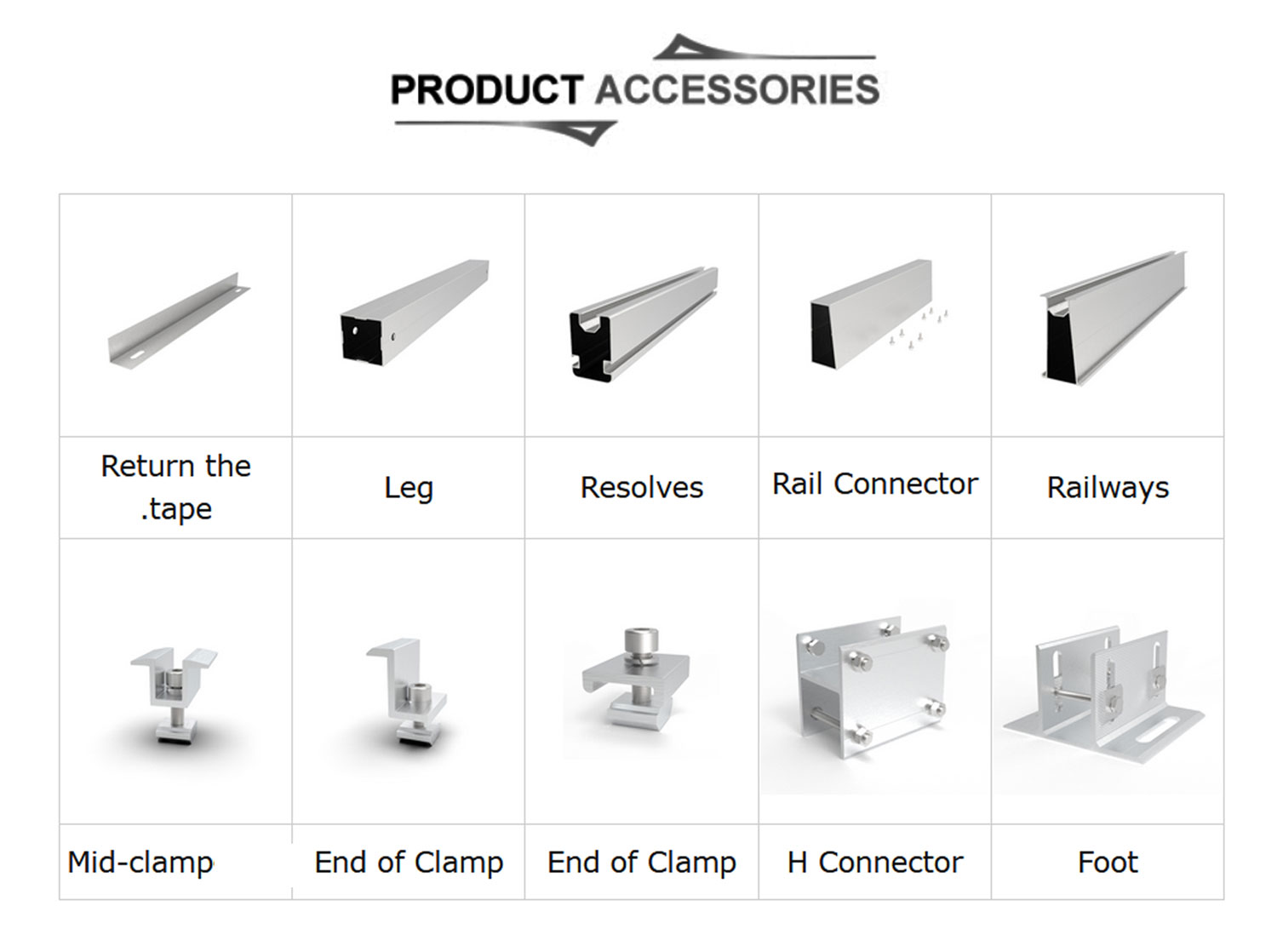

Panel Clamping: |
|
|
|
Solar panels are secured to the mounting structure using clamps, which can be customized based on panel dimensions and manufacturer specifications. |
|
|
– |
Tilt Angle: |
|
|
|
Ground mount systems often allow for adjustable tilt angles, enabling optimization for solar energy capture based on the sun’s path. |
|
|
– |
Wind and Snow Loads: |
|
|
|
The system’s design must consider local wind and snow load conditions to ensure structural integrity. |
|
|
– |
Material Specifications: |
|
|
|
Mounting structures can be made from materials like 6082-T6 aluminum or galvanized steel, often with corrosion-resistant coatings like anodization or hot-dip galvanization. |
|
|
– |
Panel Orientation: |
|
|
|
Ground mount systems can be configured for either portrait or landscape panel orientation, depending on the specific site and project needs. |
|
|
– |
Design Codes: |
|
|
|
Ground mount systems are designed and manufactured according to relevant standards and codes, such as Eurocodes and local building codes. |
|
|
Additional Considerations: |
||
|
– |
Terrain: |
|
|
|
Ground mounts can be adapted to various terrains, including flat, sloped, or uneven ground. |
|
|
– |
Accessibility: |
|
|
|
The design should allow for easy access to the panels for maintenance and cleaning. |
|
|
– |
Cost: |
|
|
|
Ground mount systems can be more cost-effective than other mounting options, particularly for large-scale solar installations. |
|
|
– |
Environmental Impact: |
|
|
|
Ground mounts can be designed to minimize environmental impact, such as by allowing vegetation growth underneath the panels. |
|
|
|
||
|
Specification of Ground Mounting System for Solar Panels |
||
|
Item |
Description / Specification |
|
|
Mounting Type |
Ground Mounting System (Fixed Tilt / Adjustable Tilt / Tracking) |
|
|
Tilt Angle |
15° – 45° (Fixed or adjustable depending on location) |
|
|
System Orientation |
South-facing (in Northern Hemisphere) or as per site design |
|
|
Structure Material |
Aluminum Alloy (Al 6005-T5) or Hot-Dip Galvanized Steel |
|
|
Fastener Material |
Stainless Steel (SUS304) |
|
|
Foundation Type |
Ground Screws or Concrete Foundation |
|
|
Wind Resistance |
Up to 160 km/h or as per local standards |
|
|
Snow Load Resistance |
Up to 1.5 kN/m² (depending on site conditions) |
|
|
Panel Mounting Type |
Portrait or Landscape |
|
|
Adjustability |
Horizontal and/or Vertical (±20 mm depending on design) |
|
|
Expected Lifespan |
≥ 25 years |
|
|
Compliance Standards |
AS/NZS 1170, JIS C8955, DIN 1055, IEC 61215 |
|
|
Protection Grade |
UV, Corrosion, and Heat Resistant |
|
|

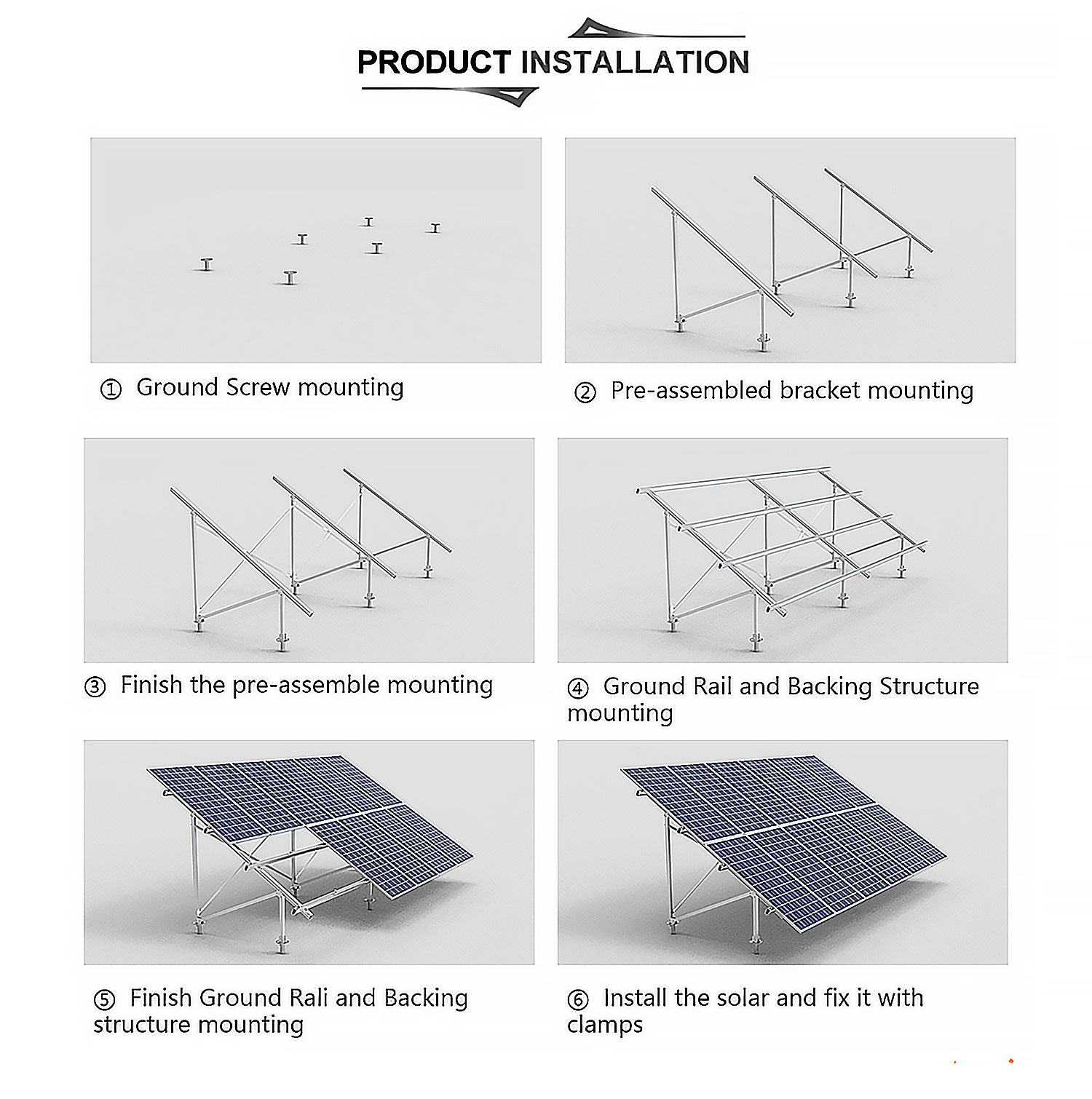

Installation Method |
Mechanical Screws, Easy Lock-in Clamps, No Welding |
|
|
|
||
|
Examples of specifications for some types of Ground Mounting System |
||
|

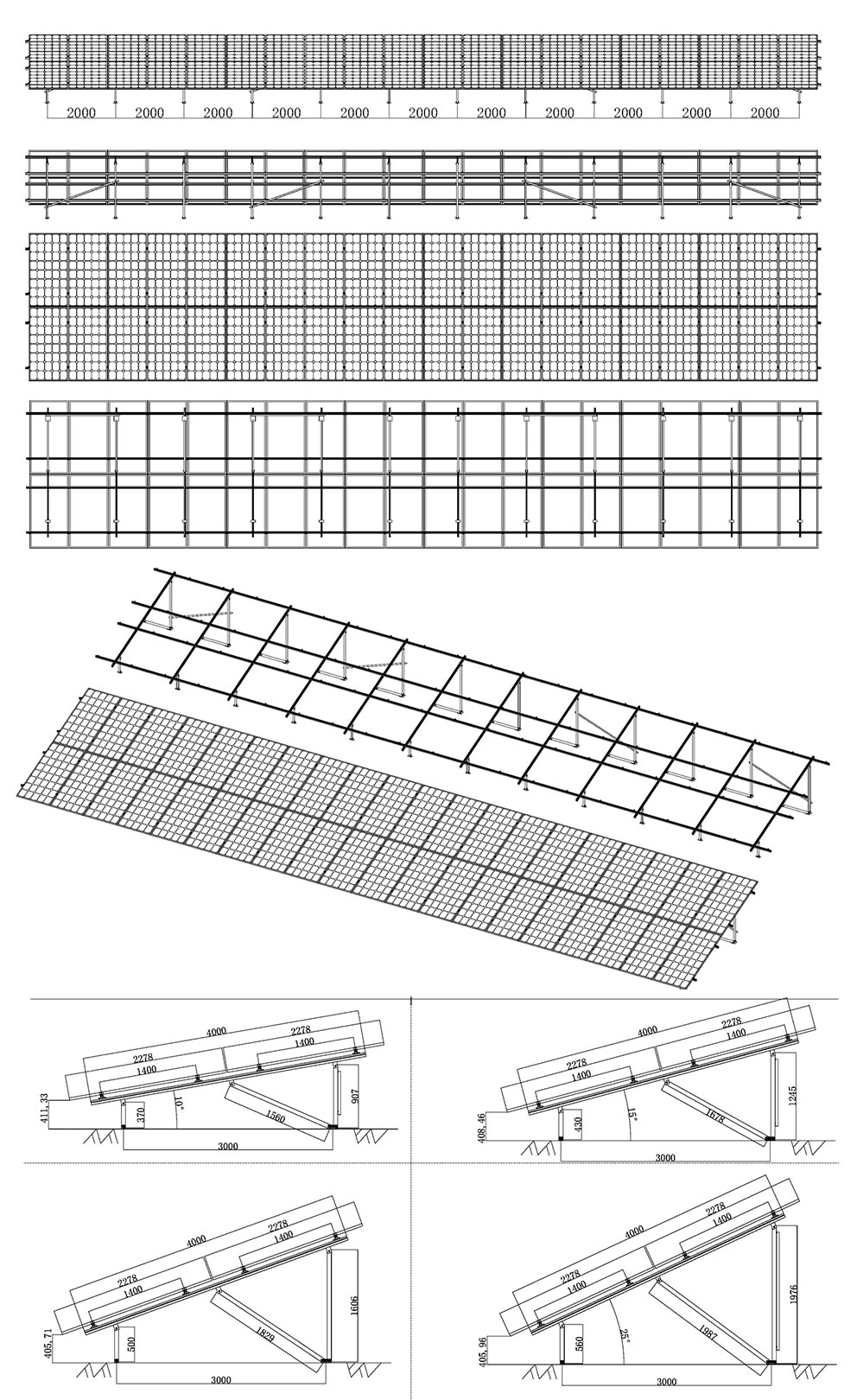

Ground PV Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
Ground PV Mounting System |
|
|
Product Warranty |
10 Years |
|
|
System Overview |
||
|
Type |
Ground |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait |
|
|
Tilt Angle |
0-45 ° |
|
|
Wind Load |
160 km/h |
|
|
Snow Load |
1 kN/m2 |
|
|
General Data |
||
|
System Dimension(L*W*H) |
5950x1000x300 mm |
|
|
Panel Width |
1134 mm |
|
|
Weight |
28 kg/m2 |
|
|
Supporting Structure Materials |
Aluminium, Galvanized Steel |
|
|
Small Parts Materials |
Aluminium, Stainless Steel, Galvanized Steel |
|
|
|
||
|
GA2 Ground Solar Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
GA2 |
|
|
Product Warranty |
10 Years |
|
|
Product System Overview |
||
|
Type |
Ground |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait |
|
|
Tilt Angle |
0-45 ° |
|
|
Wind Load |
165.6 km/h |
|
|
Snow Load |
6 kN/m2 |
|
|
General Data |
||
|
Supporting Structure Materials |
Aluminium, Stainless Steel |
|
|
Small Parts Materials |
Aluminium, Stainless Steel |
|
|
|
||
|
C-Profile Zn-Al-Mg Coated Steel Solar Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
C-Profile Zn-Al-Mg Coated Steel Solar Mounting System |
|
|
Product Warranty |
15 Years |
|
|
Product System Overview |
||
|
Type |
Ground |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait, Landscape |
|
|
Tilt Angle |
0-45 ° |
|
|
Wind Load |
216 km/h |
|
|
Snow Load |
2.4 kN/m2 |
|
|
General Data |
||
|
Weight |
23 kg/m2 |
|
|
Supporting Structure Materials |
Aluminium, Stainless Steel, Galvanized Steel |
|
|
Small Parts Materials |
Aluminium, Stainless Steel, Galvanized Steel |
|
|
|
||
|

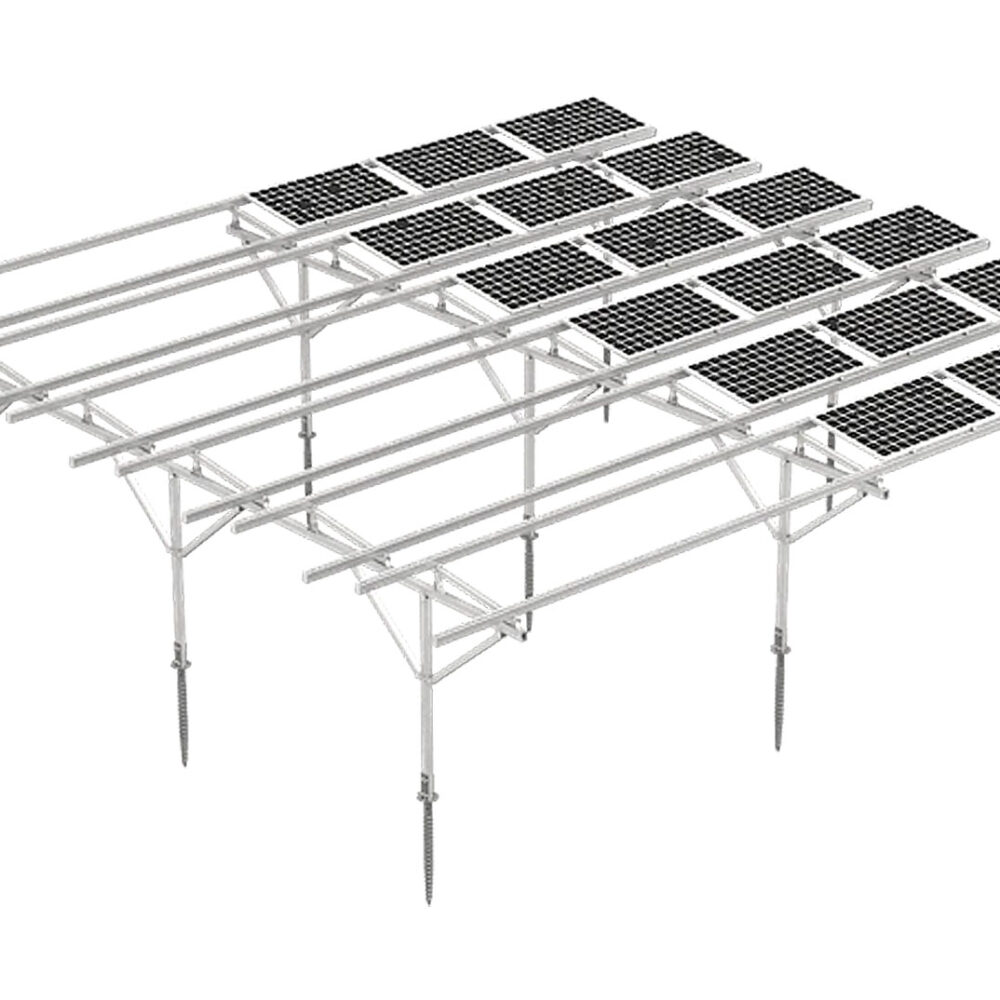

U Pile Ground Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
U Pile Ground Mounting System |
|
|
Product Warranty |
15 Years |
|
|
System Overview |
||
|
Type |
Ground |
|
|
Mounting System Arrangement |
Rows, Columns |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait, Landscape |
|
|
Tilt Angle |
0-60 ° |
|
|
Maximum Terrain Slope |
60 ° |
|
|
Wind Load |
198 km/h |
|
|
Snow Load |
1.4 kN/m2 |
|
|
General Data |
||
|
Panel Width |
950-1200 mm |
|
|
Supporting Structure Materials |
Aluminium |
|
|
Small Parts Materials |
Aluminium, Stainless Steel, Galvanized Steel |
|
