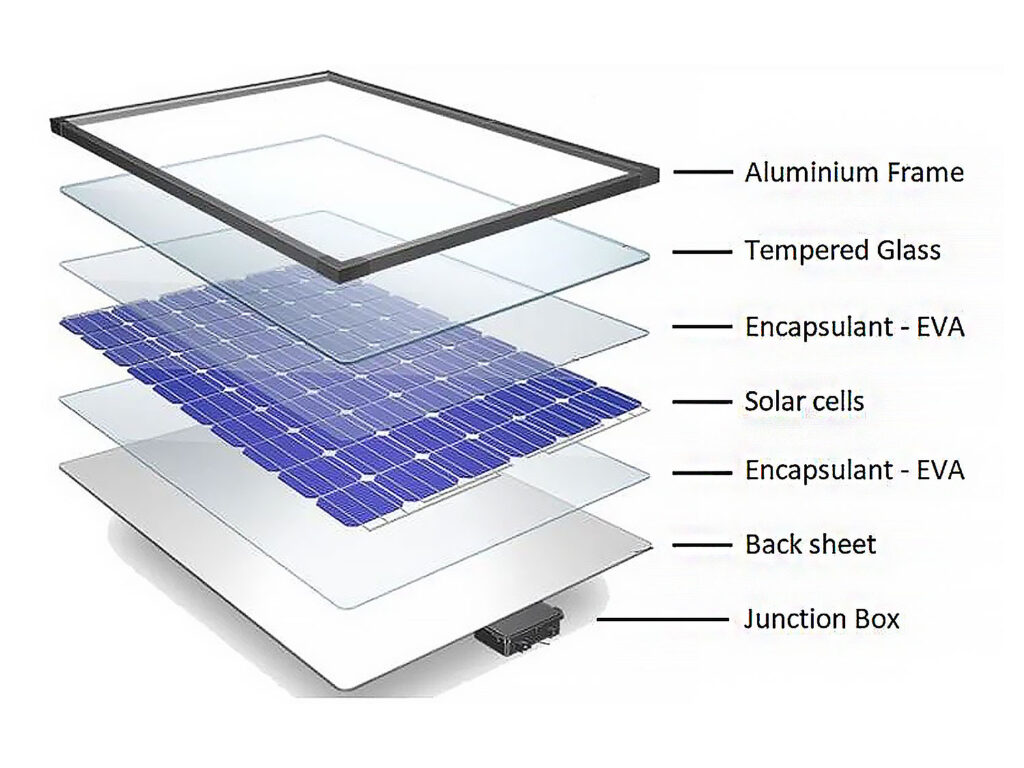

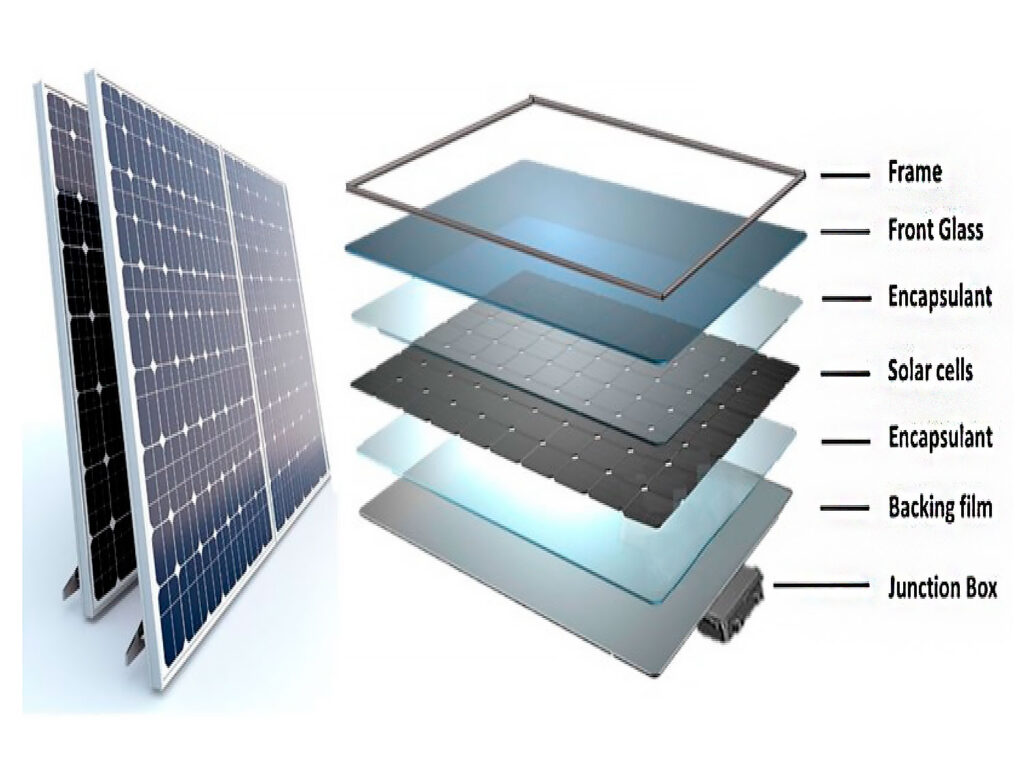

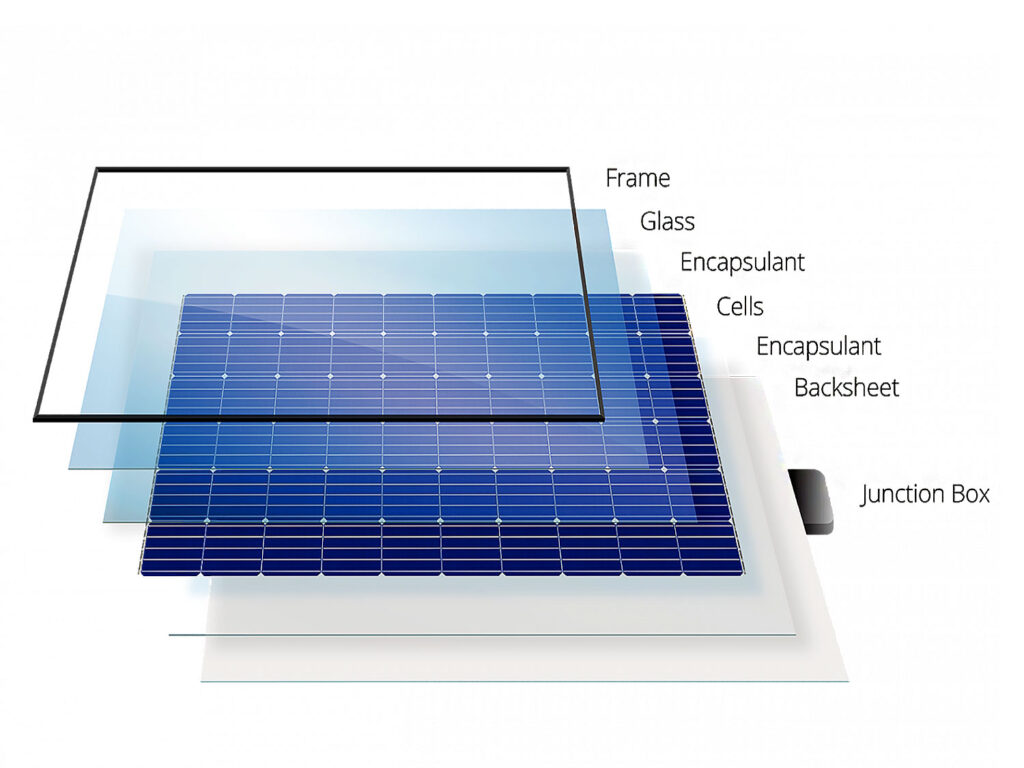

Description
|

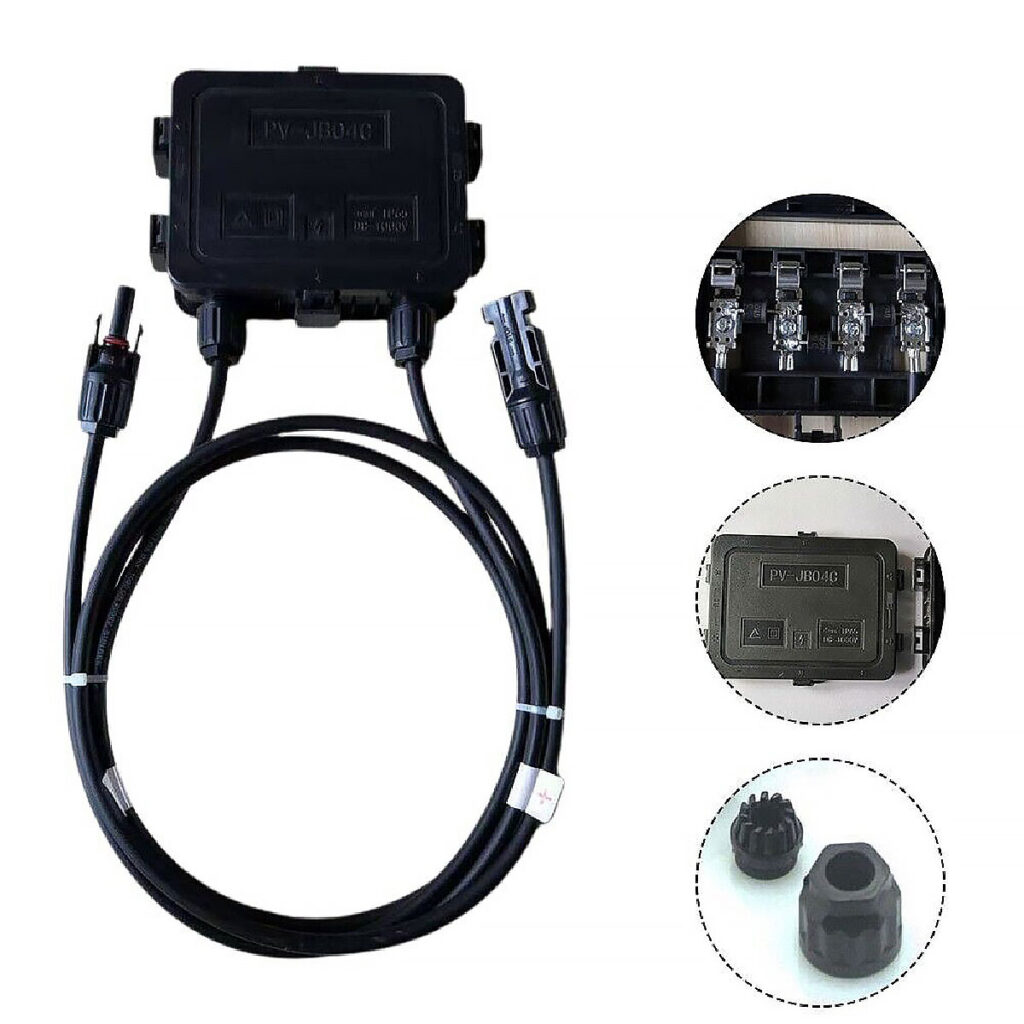

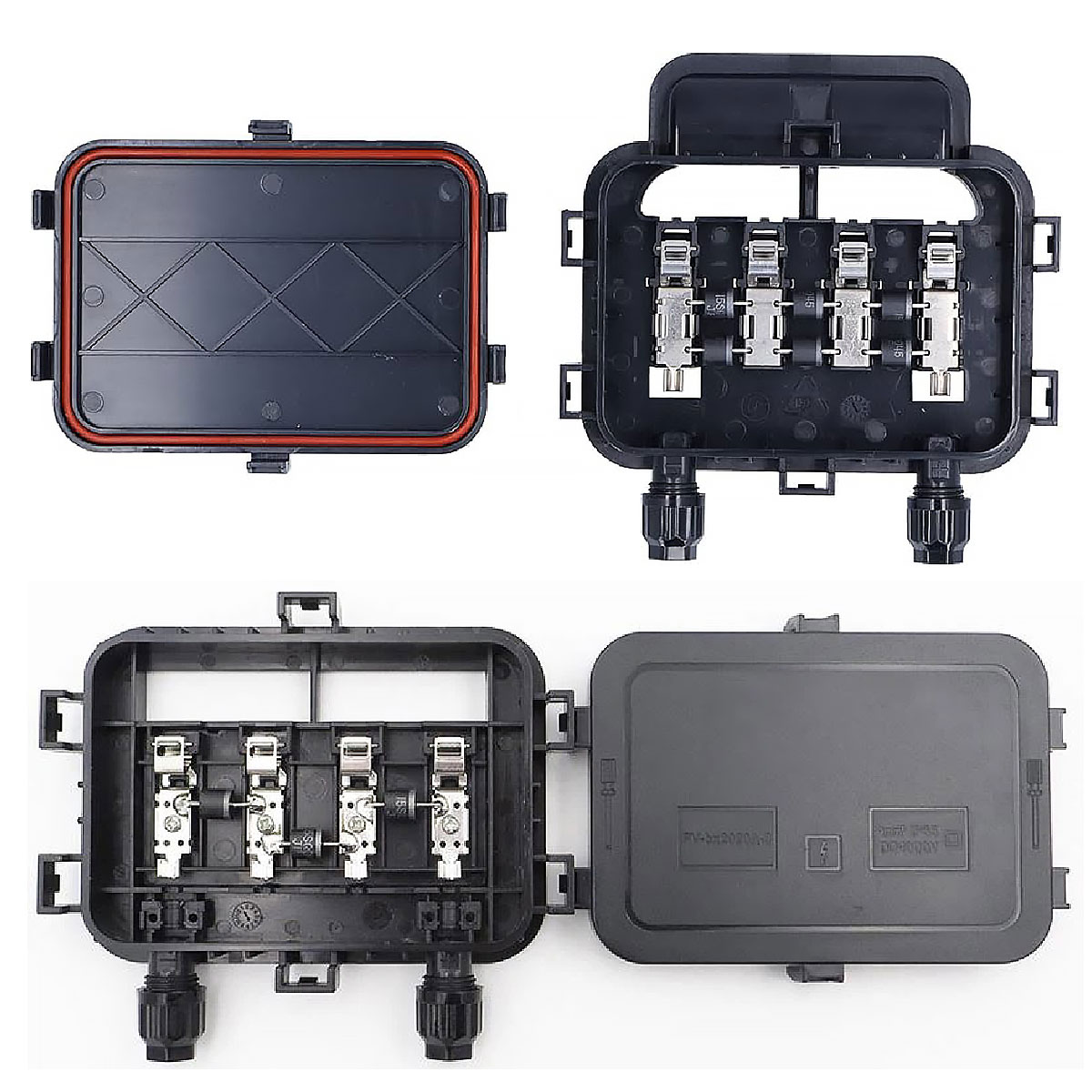

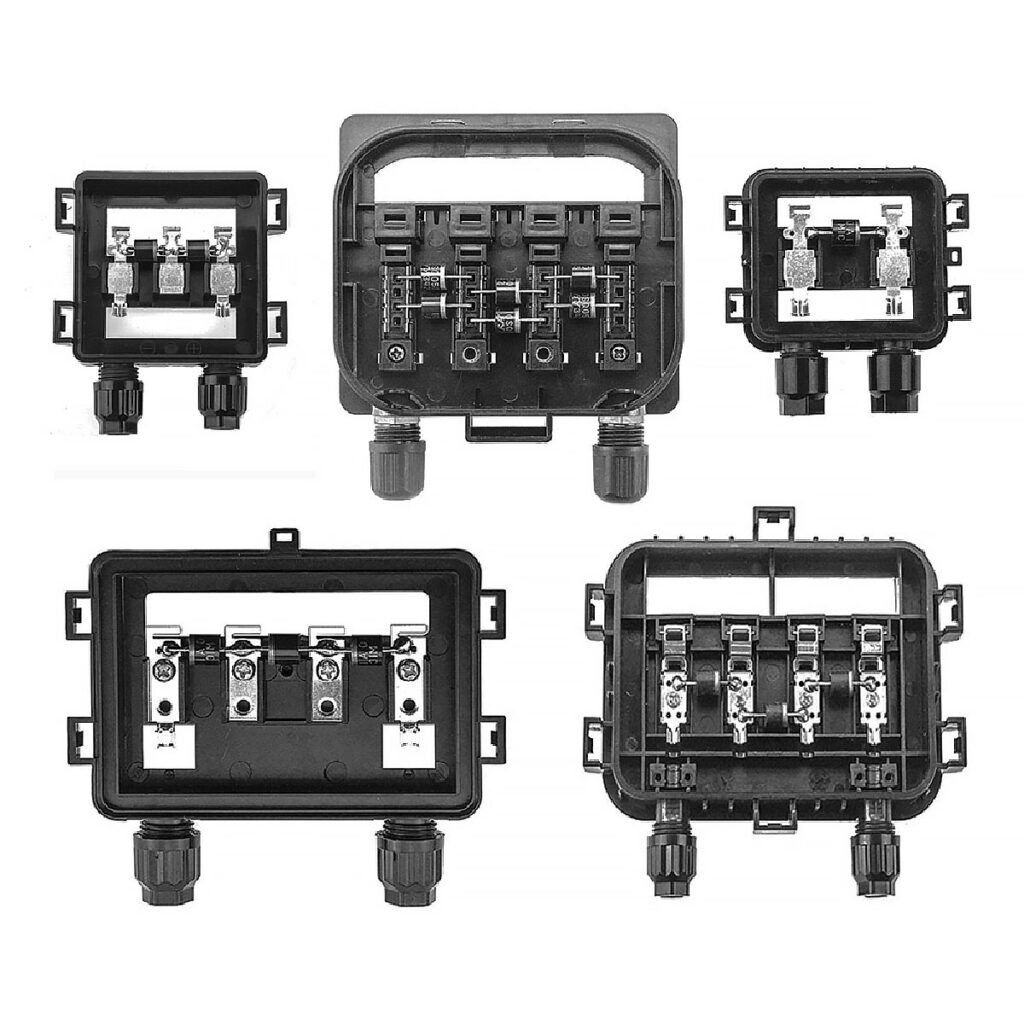

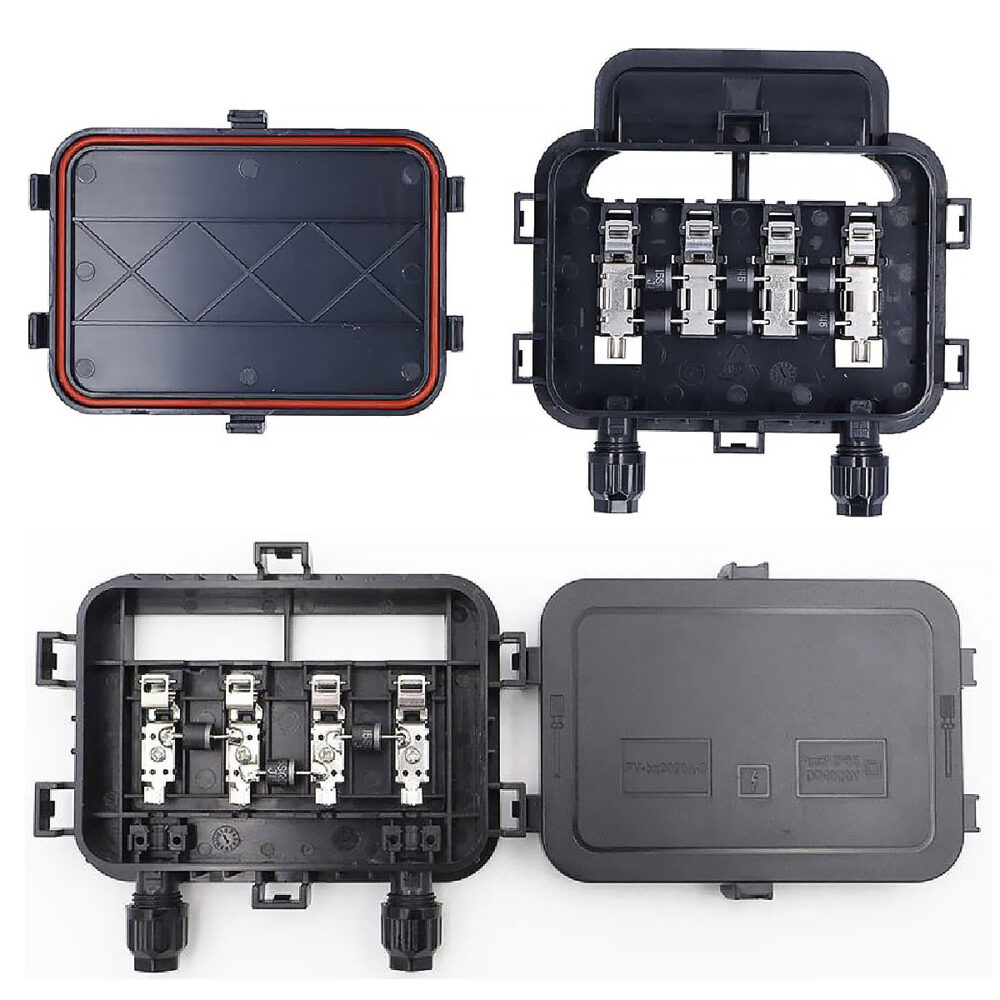

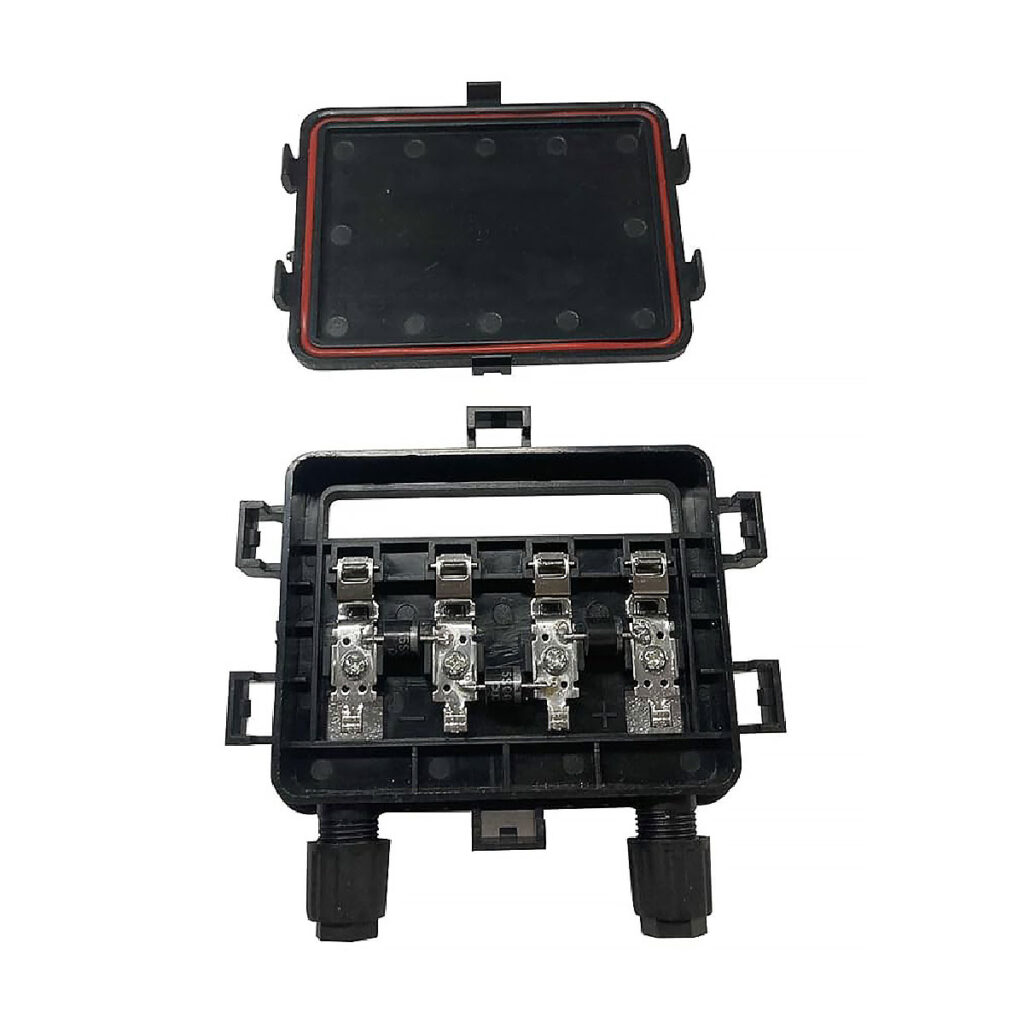

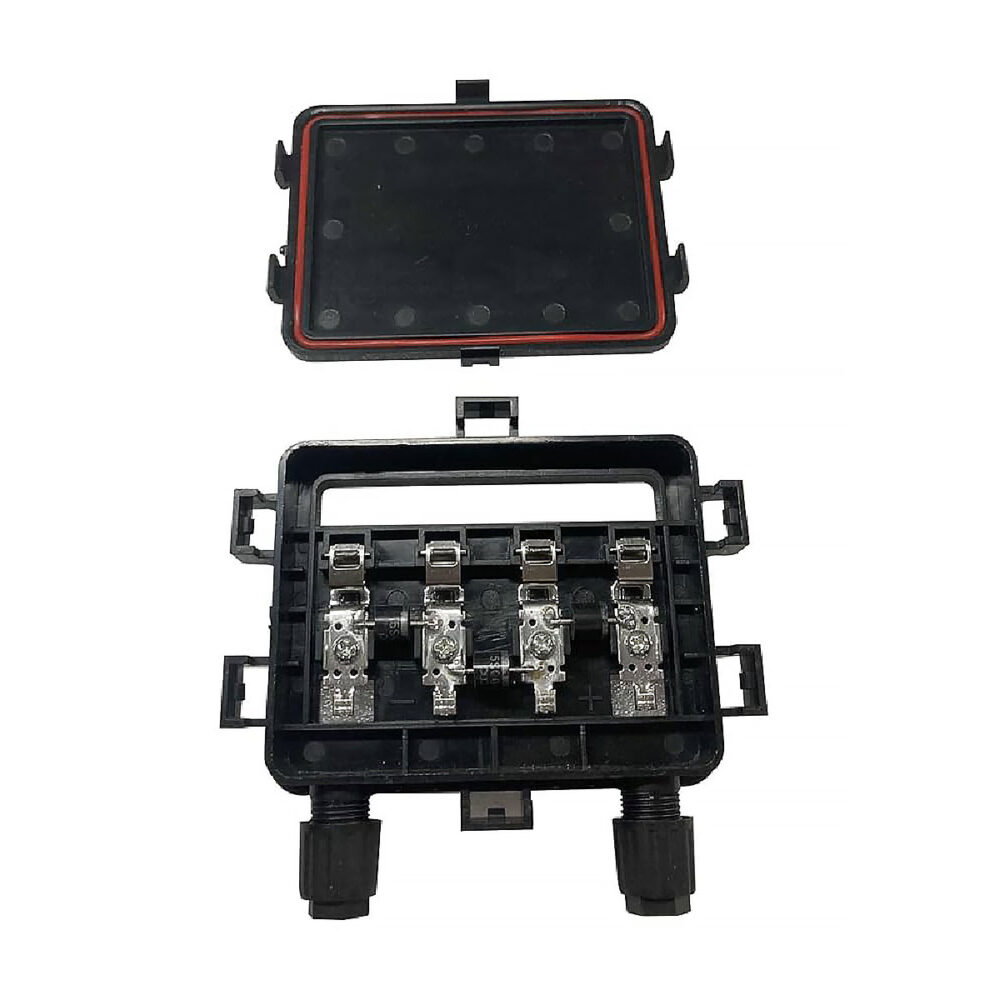

General Specifications about Solar Junction Box |
|||
|
Key Specifications |
|||
|
– |
Rated Voltage: Typically 1500V DC, but can vary. |
||
|
– |
Rated Current: Varies based on the solar panel’s output, often 10A, 15A, 20A, or 25A. |
||
|
– |
Temperature Range: -40°C to +85°C or higher, depending on the application. |
||
|
– |
Ingress Protection (IP) Rating: IP65, IP67, or IP68, indicating protection against dust and water ingress. |
||
|
– |
Cable Size: Typically uses 4mm² (12AWG) stranded wire. |
||
|
– |
Number of Diodes: May contain one or more diodes for bypass or blocking purposes. |
||
|
– |

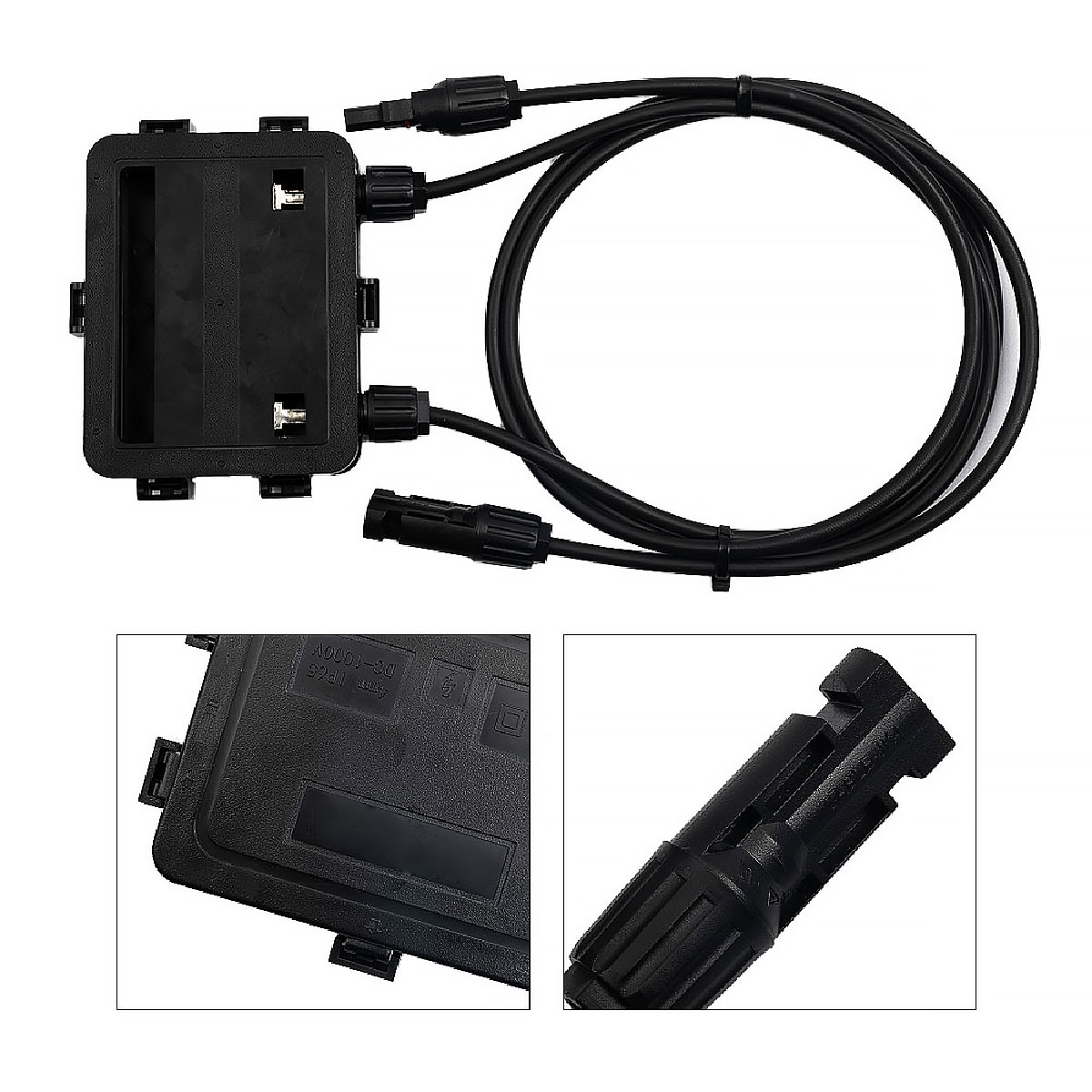

Connector Type: MC4 connectors are standard, but other compatible connectors may be used. |
||
|
– |
Material: The enclosure is often made of PPO/PPE, offering good insulation and UV resistance. |
||
|
Functional Features: |
|||
|
– |

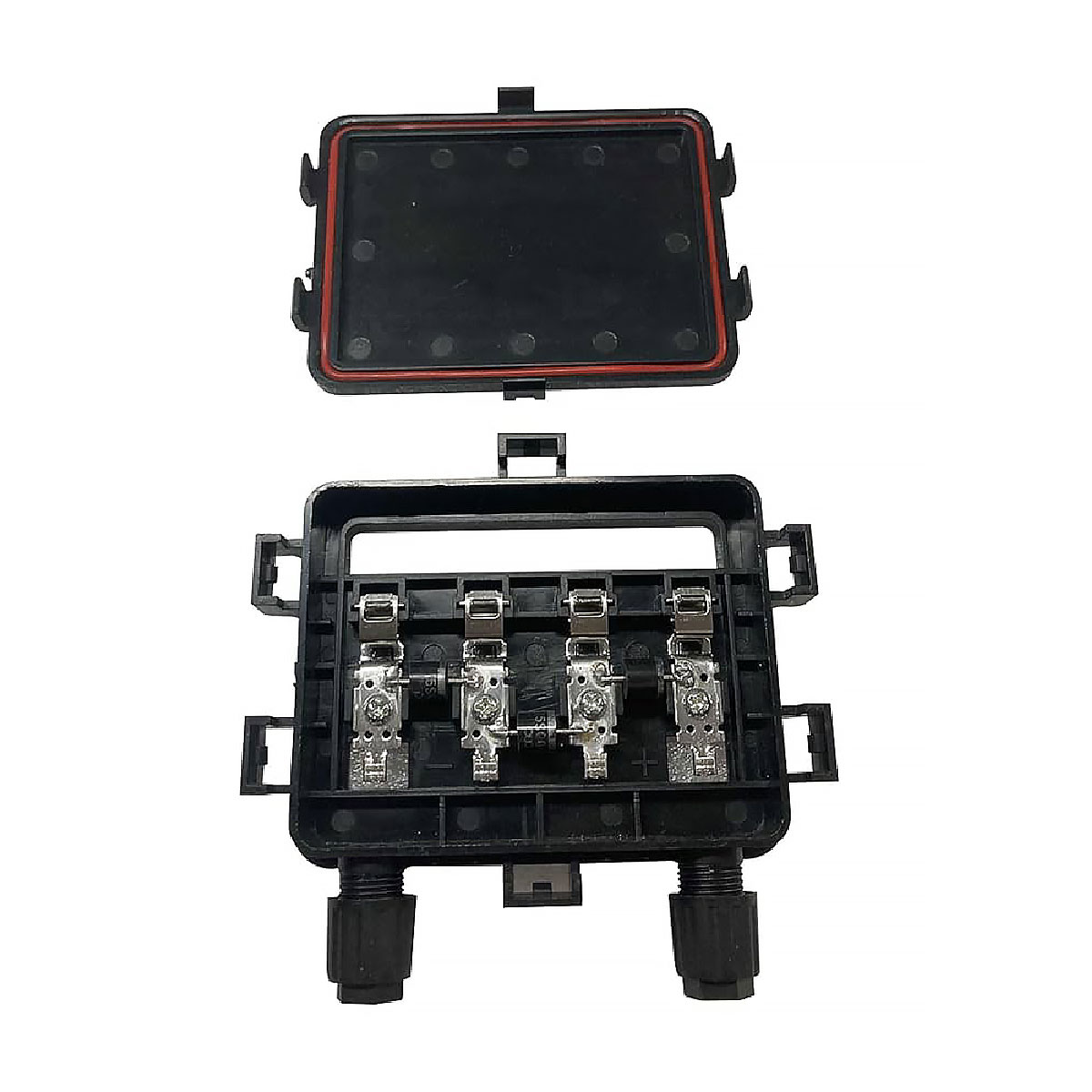

Bypass Diodes: Protect against hotspot damage by allowing current to bypass shaded or damaged cells. |
||
|
– |
Weather Protection: Sealed to prevent ingress of water and dust. |
||
|
– |
Thermal Resistance: Withstands high temperatures generated during panel operation. |
||
|
Important Considerations: |
|||
|
– |
Current Rating: Choose a junction box with a rated current higher than the solar panel’s maximum output |
||
|
– |
Environmental Conditions: Select a junction box with a suitable IP rating for the installation location’s climate (e.g., IP67 for areas with high humidity). |
||
|
– |
Connection Method: Ensure the junction box’s connection method (e.g., clamping, soldering) is compatible with the solar panel’s wiring. |
||
|
|
|||
|
Technical Specifications of a Solar Panel Junction Box (Common Specifications ( |
|||
|
Typical specifications for a solar panel junction box (these values may vary slightly depending on the manufacturer and model). |
|||
|
Parameter |
Specification |
||
|
Rated Voltage |
1000 V DC / 1500 V DC |
||
|
Rated Current |
10 A – 20 A (depending on solar panel wattage) |
||
|
Number of Diodes |
3 (Bypass diodes for protection against shading effects) |
||
|
Contact Resistance |
≤ 0.5 mΩ |
||
|
Protection Class |
IP65 / IP67 (Waterproof and dustproof) |
||
|
Flame Class |
UL94-V0 (Flame retardant) |
||
|
Insulation Resistance |
≥ 1000 MΩ (at 1000 V DC) |
||
|
Cable Entry |
2 or 3 cable glands (for +, −, and sometimes grounding) |
||
|
Cable Size Compatibility |
2.5 mm² / 4.0 mm² / 6.0 mm² |
||
|
Connector Type |
MC4-compatible or custom connectors |
||
|
Temperature Range |
-40°C to +85°C |
||
|
Material (Housing) |
High-quality PPO or PA (UV & weather-resistant plastic) |
||
|
Mounting Method |
Adhesive, Clips, or Screws (on the solar panel backsheet) |
||
|
Standards Compliance |
IEC 62790, UL 3730, TUV certified |
||
|
|
|||
|
|
|||
|

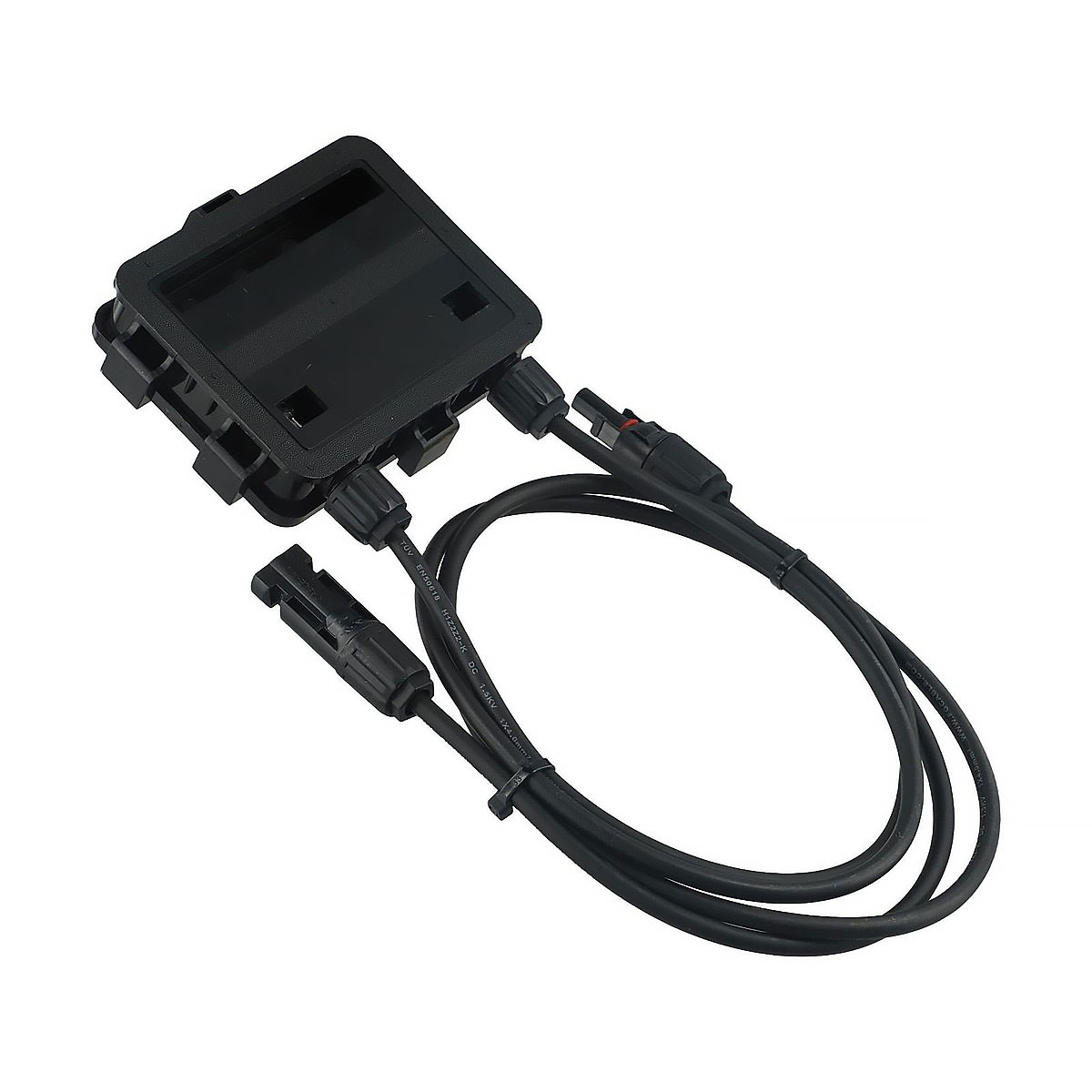

3Qxy Positive & Negative All-in-One Junction Box A2 |
|||
 |
|||
|
|
|||
|
Product Specifications |
|||
|
Rated Voltage |
IEC 1500V/UL1500V |
||
|
Rated Curren |
IEC18A/UL18A IEC20A/UL25A IEC22A/UL30A IEC25A/UL30A IEC30A/UL30A IEC32A/UL32A IEC35A/UL35A |
||
|
Glue Volume |
1*7mL |
||
|
Application Class |
Class A |
||
|
Temperature Range |
-40℃ ~ +85℃ |
||
|
Protection Degree |
IP68 |
||
|
TUV Certificate NO |
R50510013, No.B 077362 0009 Rev.04 |
||
|
UL Certificate NO |
E312223 |
||
|
Flame Class |
5VA |
||
|
|
|||
|
3Q-M |
|||
   |
|||
|
|
|||
|
Product Specifications |
|||
|
Rated Voltage |
IEC 1500V/UL1500V |
||
|
Rated Curren |
IEC 20A/25A/30A |
||
|
Glue Volume |
3*8mL(approx.) |
||
|
Application Class |
Class A |
||
|
Temperature Range |
-40℃ ~ +85℃ |
||
|
Protection Degree |
IP68 |
||
|
Size of Ribbons |
Max.8mm |
||
|
Size of Cables |
4mm²/12AWG |
||
|
TUV Certificate NO |
R50510013, NO.B 007362 0009 Rev.03 |
||
|
UL Certificate NO |
E312223 |
||
|
Flame Class |
5VA |
||
|
|
|
||
|
|

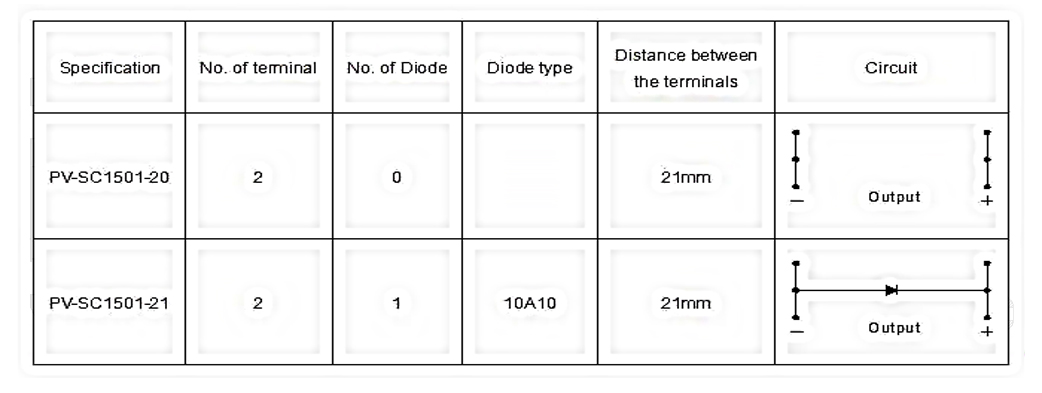

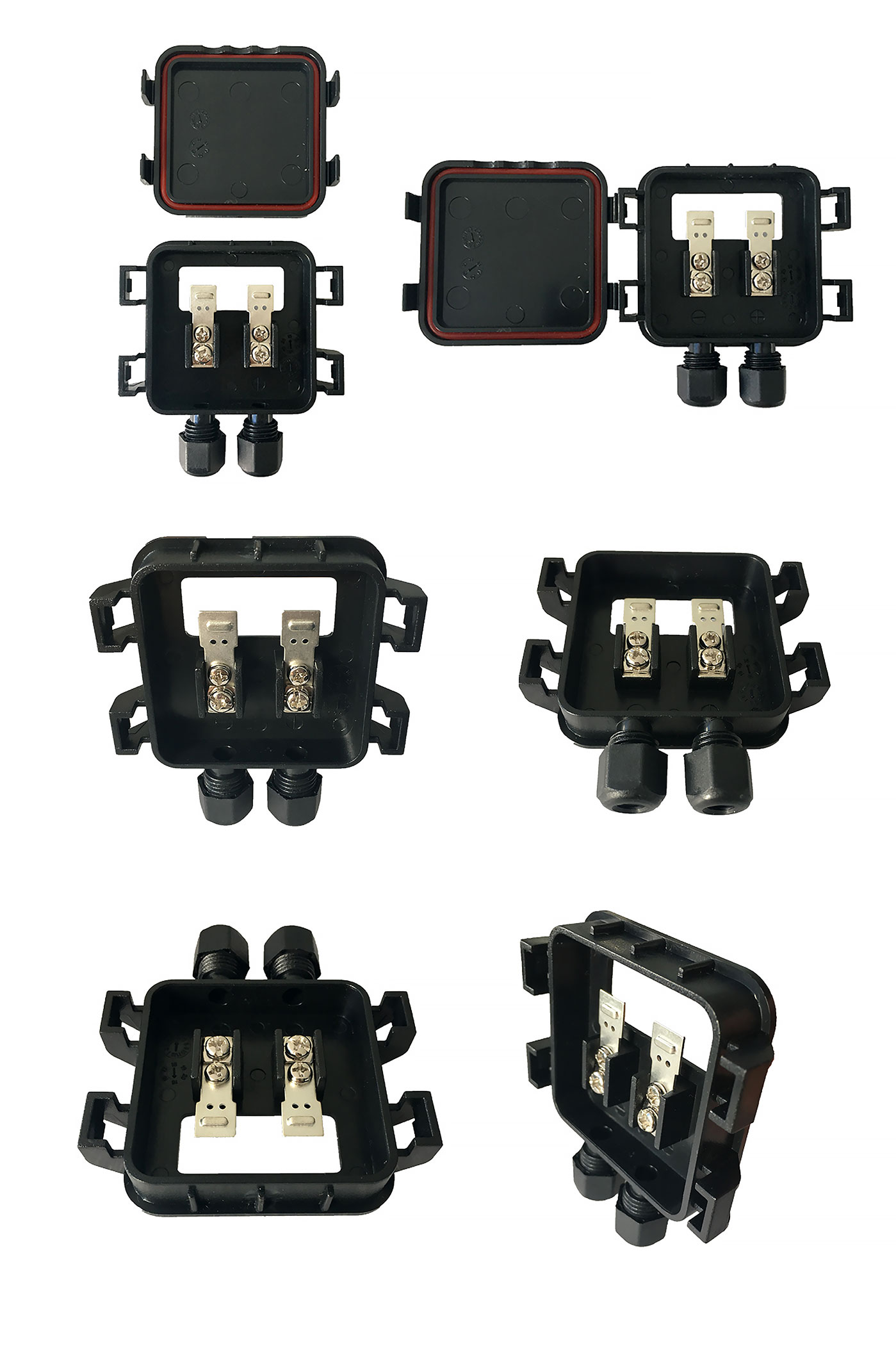

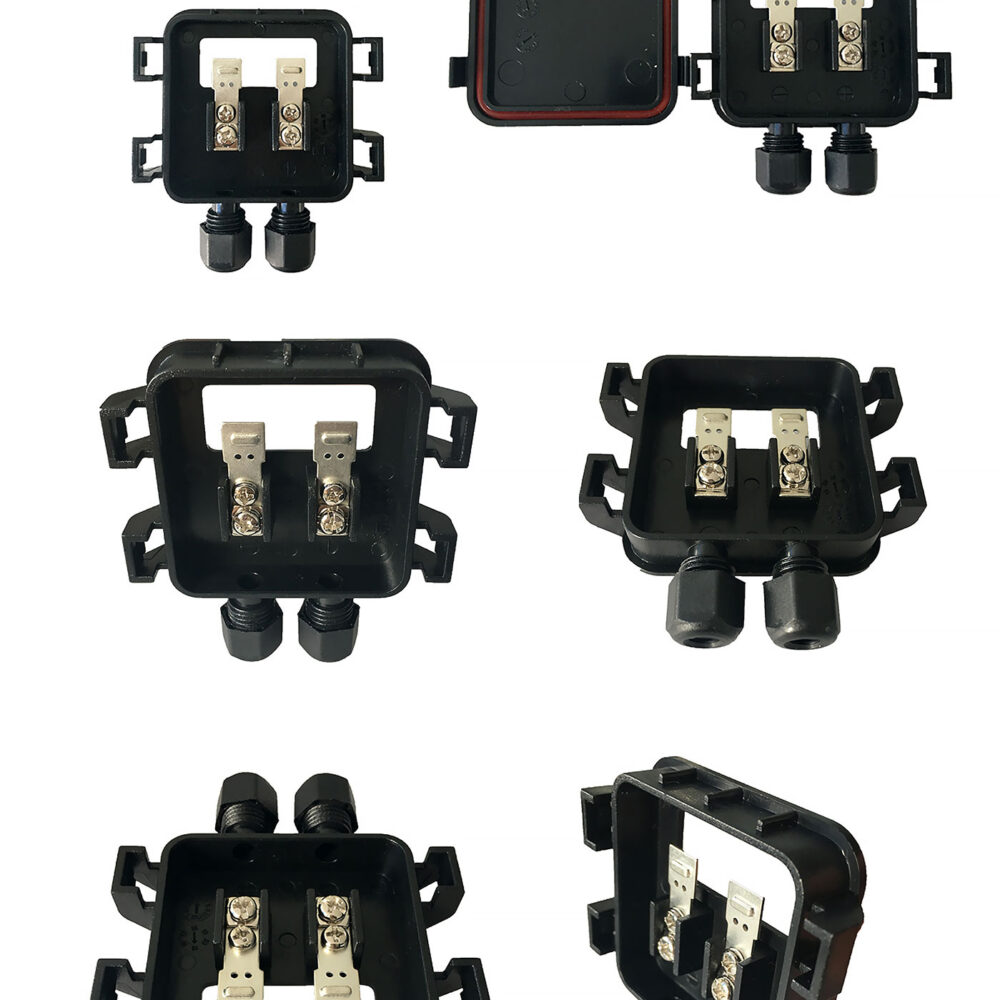

PV-SC1501 |
||
|
|
   |
||
|
|
|
||
|
|
Product Specifications |
||
|
|
Rated Voltage |
1000VDC |
|
|
|
Insulation Material |
PPO |
|
|
|
Connector |
PV-SC01 |
|
|
|
Contact Material |
Copper alloy,tin plated |
|
|
|
Bonding mode |
Silica gel |
|
|
|
The bonding area |
2000mm2 |
|
|
|
Connection Cable |
A:2*0.3-1.5mm2 / B:1*2.5-4mm2 |
|
|
|
Width Of Copper Ribbon |
Up to 6mm |
|
|
|
Protection Degree |
IP65 |
|
|
|
Protection Class |
ClassII |
|
|
|
Flame Class |
UL94-V0 |
|
|
|
Temperature Range |
-40℃-+85℃ |
|
|
|
Waterproofing structure |
O-ring Sea |
|
|
|
Width Of Copper Ribbon |
Up to 6mm |
|
|
|
Connection Method |
Soldering |
|
|
|
Overall Dimension |
79(65) *78(65）*18mm |
|
|
|
Connector |
A: PV-SC01 / B: NO |
|
