Description
|
Key Components and Specifications: |
||
|
– |

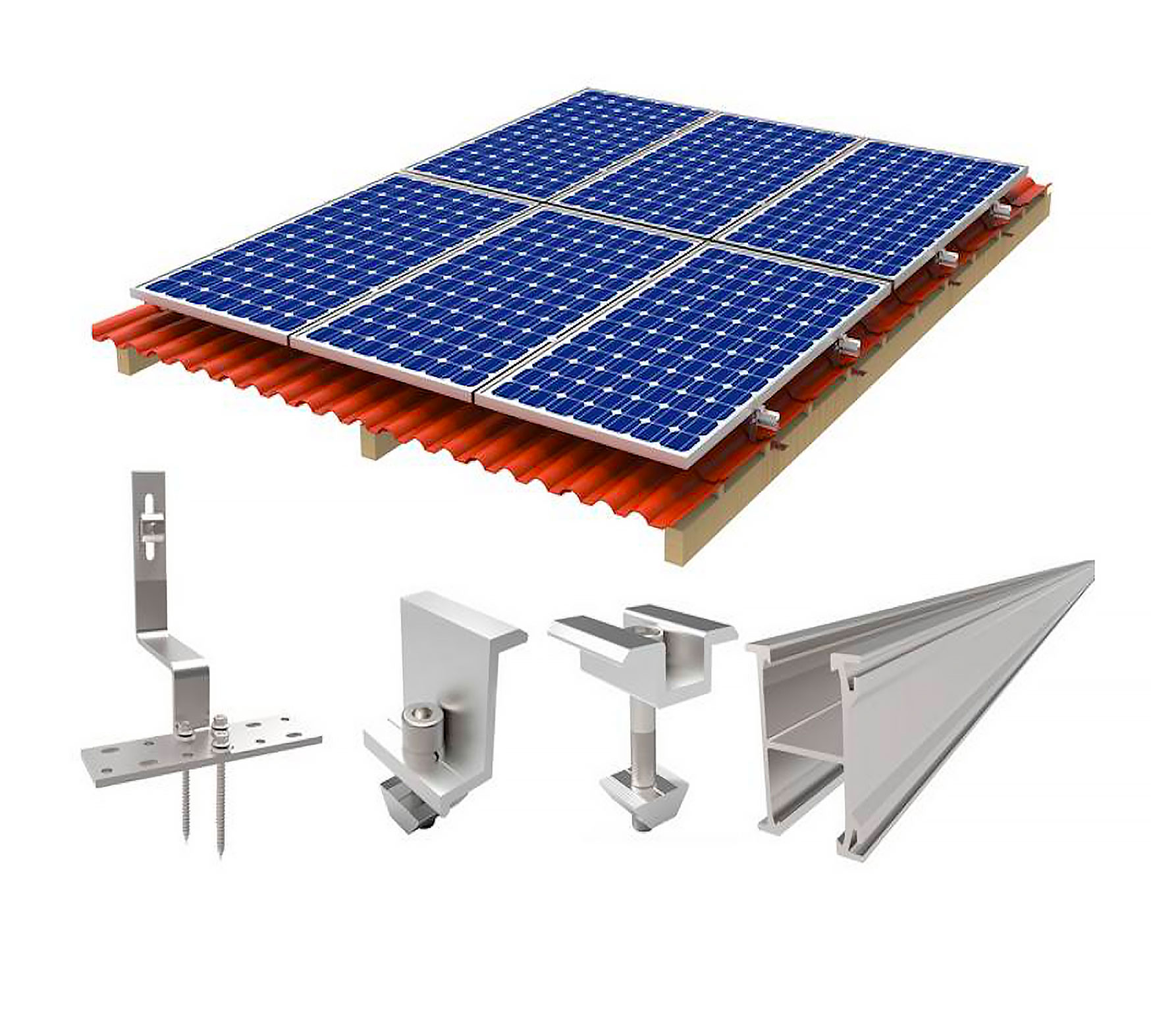

Rails: |
|
|
|
These provide the structural framework for attaching the solar panels. They can be made of aluminum or steel and are designed to handle wind and snow loads. |
|
|
– |
Mounting Feet/Hooks: |
|
|
|
These secure the rails to the roof structure, often using screws, clamps, or specialized hooks that fit under or around tiles. |
|
|
– |
Clamps: |
|
|
|
These hold the solar panels to the rails, ensuring they are firmly attached and properly spaced |
|
|
– |
Material Compatibility: |
|
|
|
The mounting system components should be compatible with the roof material (e.g., tile, metal sheeting, slate) to ensure proper installation and long-term durability. |
|
|
– |
Weather Resistance: |
|
|
|
Components should be made of corrosion-resistant materials (e.g., aluminum, stainless steel) to withstand harsh weather conditions. |
|
|
– |
Installation Considerations: |
|
|
|
The system should be designed for easy and efficient installation, minimizing labor costs and potential roof damage. |
|
|
– |
Code Compliance: |
|
|
|
The system should meet relevant building codes and standards for solar panel installations. |
|
|
Specific types of pitched roof systems: |
||
|
– |

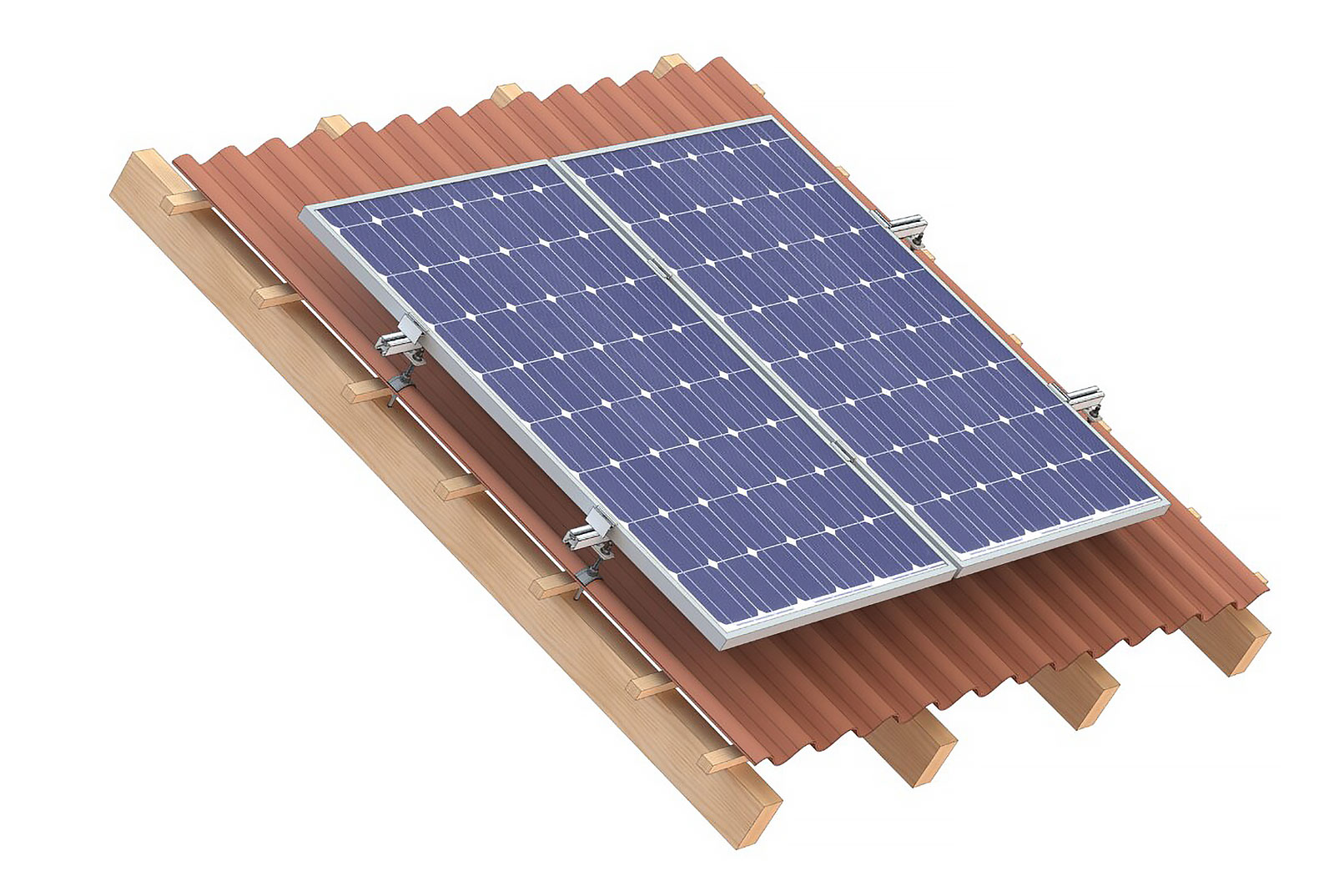

Tile Roof Mounting Systems: |
|
|
|
Utilize tile hooks or specialized mounting feet that integrate with the tile pattern, often requiring no penetration through the tiles themselves. |
|
|
– |

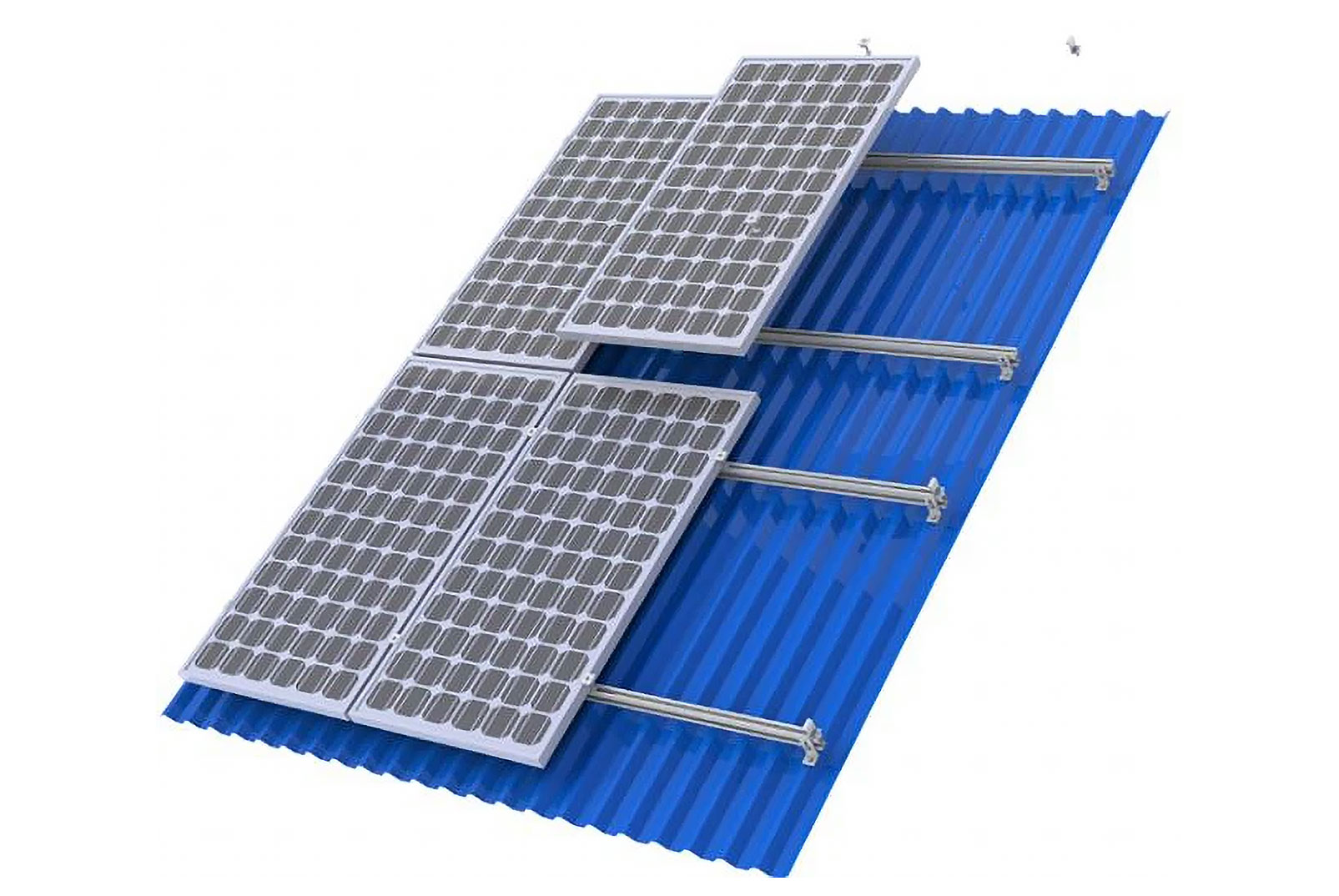

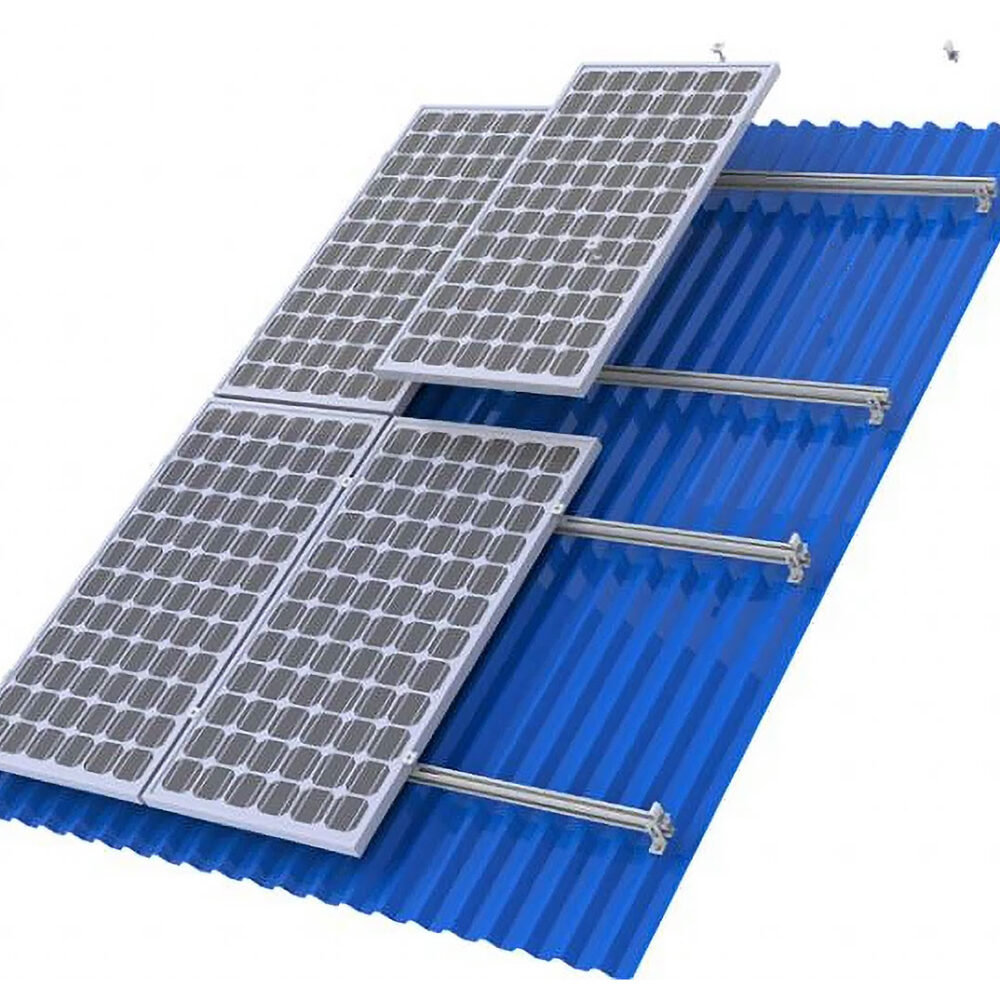

Metal Roof Mounting Systems: |
|
|
|
Employ mounting feet that fasten directly to the roof sheeting or substructure, potentially using self-tapping screws or specialized clamps. |
|
|
– |
Universal Systems: |
|
|
|
Offer flexibility to accommodate various roof types and panel configurations, often using adjustable mounting feet and rails |
|
|
Additional factors: |
||
|
– |
Roof Pitch: |
|
|
|
The angle of the roof impacts the design of the mounting system and the type of components used. |
|
|
– |
Snow and Wind Loads: |
|
|
|
The system must be designed to withstand the specific snow and wind loads in the installation location. |
|
|
– |
Grounding and Bonding: |
|
|
|
Proper grounding and bonding of the system are essential for electrical safety. |
|
|
– |
Lightning Protection: |
|
|
|
Consider integrating lightning protection measures, especially for systems installed on taller buildings. |
|
|
|
||
|
Specification of Pitched Roof Mounting System |
||
|
Item |
Description / Specification |
|
|
Mounting Type |
Pitched Roof Mounting System |
|
|
Roof Types Supported |
Tile Roof, Metal Roof, Asphalt Shingle Roof |
|
|
Tilt Angle |
Depends on roof slope (typically 15°–45°), or tilt-adjustable frames |
|
|
Mounting Orientation |
Portrait / Landscape |
|
|
Mounting Method |
Rail-based mounting using roof hooks, clamps, or L-feet brackets |
|
|
Structure Material |
Aluminum Alloy (AL6005-T5) |
|
|
Fasteners Material |
Stainless Steel (SUS304) |
|
|
Rail Type |
Extruded aluminum rail with anodized finish |
|
|
Panel Fixation |
Mid-clamps and End-clamps |
|
|
Installation Method |
Roof-penetrating or non-penetrating depending on roof type |
|
|
Wind Load Resistance |
Up to 160 km/h (as per site conditions) |
|
|
Snow Load Resistance |
Up to 1.4 – 2.4 kN/m² (depending on roof location) |
|
|
Waterproofing |
EPDM rubber gaskets, flashing plates, or silicone sealant |
|
|
Adjustability |
Vertical and horizontal alignment adjustments supported |
|
|
Fire Resistance |
UL 2703, IEC 61730 certified components |
|
|
Expected Lifespan |
≥ 25 years |
|
|
Compliance Standards |
AS/NZS 1170, DIN 1055, UL 2703, JIS C8955 |
|
|
|
||
|
Examples of specifications for some types of Pitched Roof Mounting System |
||
|

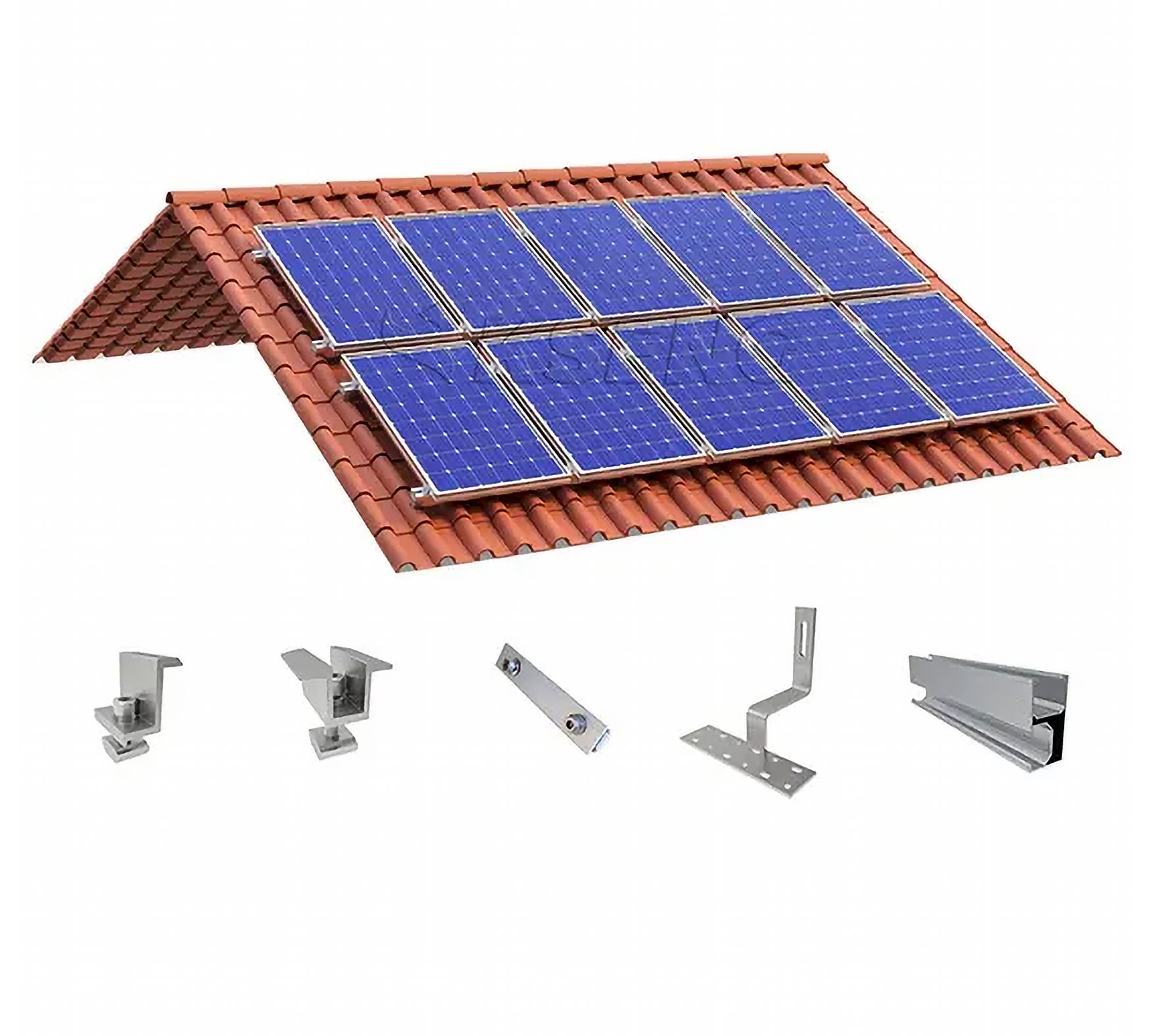

Galzed Tile Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
Galzed Tile Mounting System |
|
|
Product Warranty |
15 Years |
|
|
Product System Overview |
||
|
Type |
Pitched Roof |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait |
|
|
Roof Types |
Tile |
|
|
Tilt Angle |
0-45 ° |
|
|
Roof Pitch |
160 km/h |
|
|
Snow Load |
1 kN/m2 |
|
|
General Data |
||
|
System Dimension (L*W*H) |
5950x1000x300 mm |
|
|
Panel Width |
1134 mm |
|
|
Weight |
30 kg/m2 |
|
|
Supporting Structure Materials |
Aluminium, Stainless Steel |
|
|
Small Parts Materials |
Aluminium, Stainless Steel |
|
|
|
||
|

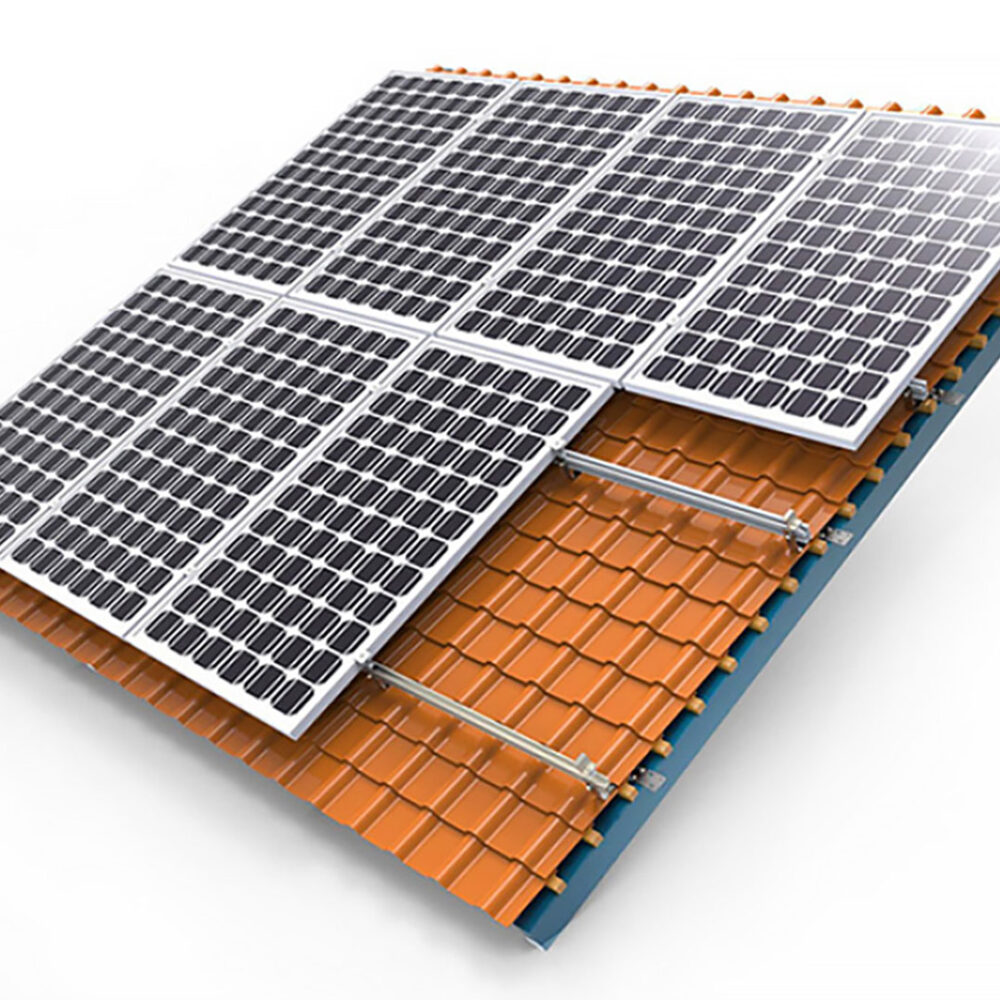

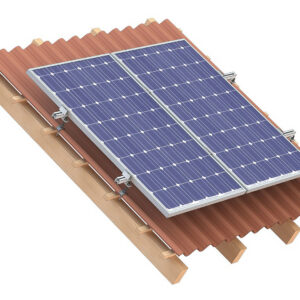

Tile Roof Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
Tile Roof Mounting System |
|
|
Product Warranty |
10 Years |
|
|
Product System Overview |
||
|
Type |
Pitched Roof |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait, Landscape |
|
|
Roof Types |
Tile, Wooden, Seam Metal, Steel, Aluminium, Shingle Surface |
|
|
Roof Pitch |
0-60 ° |
|
|
Wind Load |
216 km/h |
|
|
Snow Load |
1.4 kN/m2 |
|
|
General Data |
||
|
Supporting Structure Materials |
Aluminium |
|
|
Small Parts Materials |
Aluminium, Stainless Steel, Galvanized Steel |
|
|
|
||
|

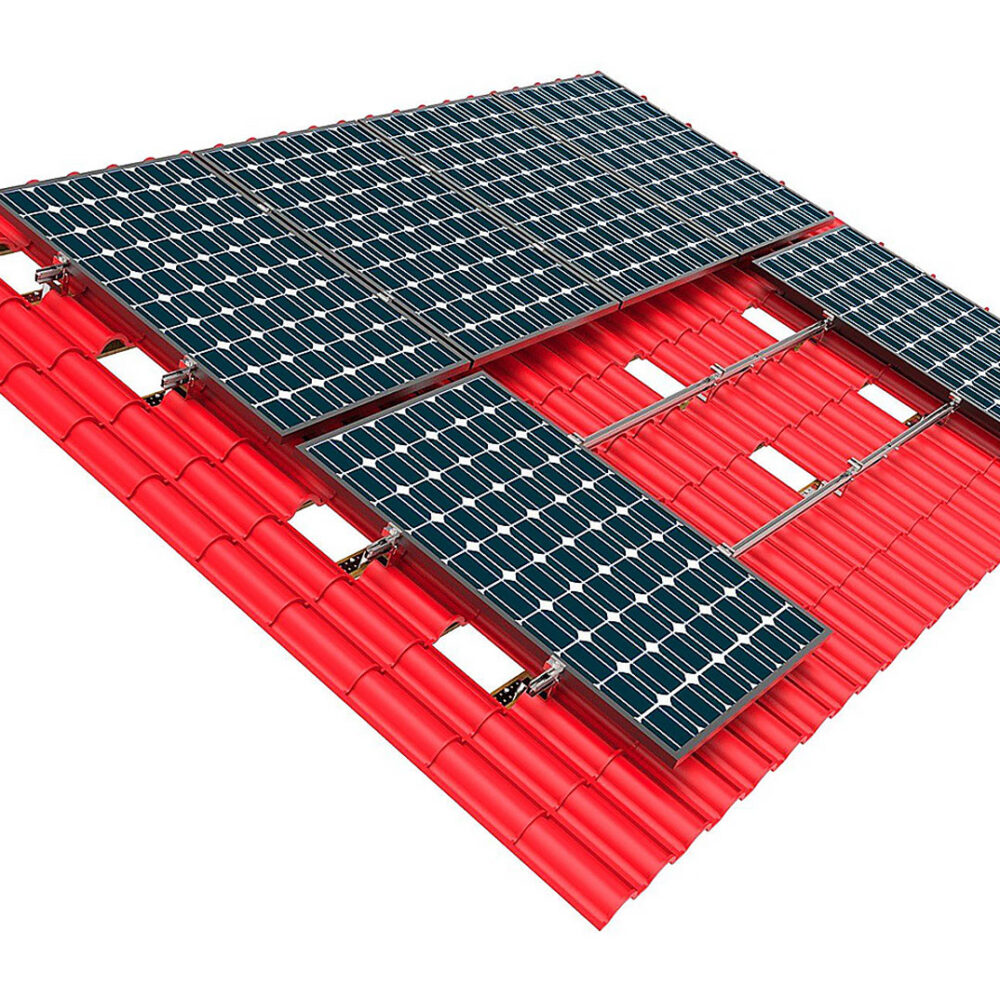

GS-Solar Roof Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
GS-Solar Roof Mounting System |
|
|
Product Warranty |
10 Years |
|
|
Product System Overview |
||
|
Type |
Pitched Roof |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait, Landscape |
|
|
Roof Pitch |
10-60 ° |
|
|
Wind Load |
216 km/h |
|
|
Snow Load |
1.4 kN/m2 |
|
|
General Data |
||
|
Supporting Structure Materials |
Aluminium, Galvanized Steel |
|
|
Small Parts Materials |
Aluminium, Stainless Steel, Galvanized Steel |
|
|
|
||
|

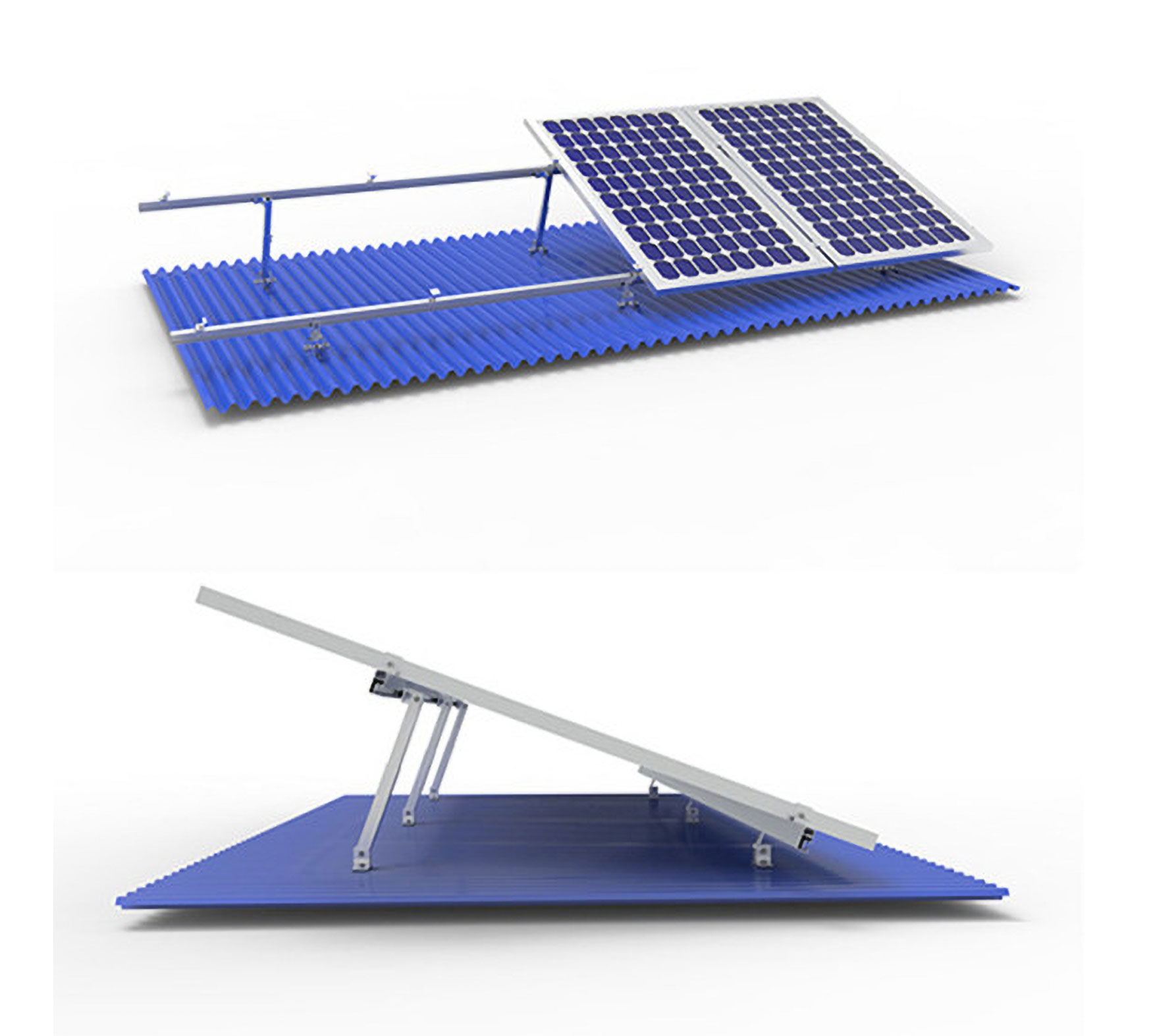

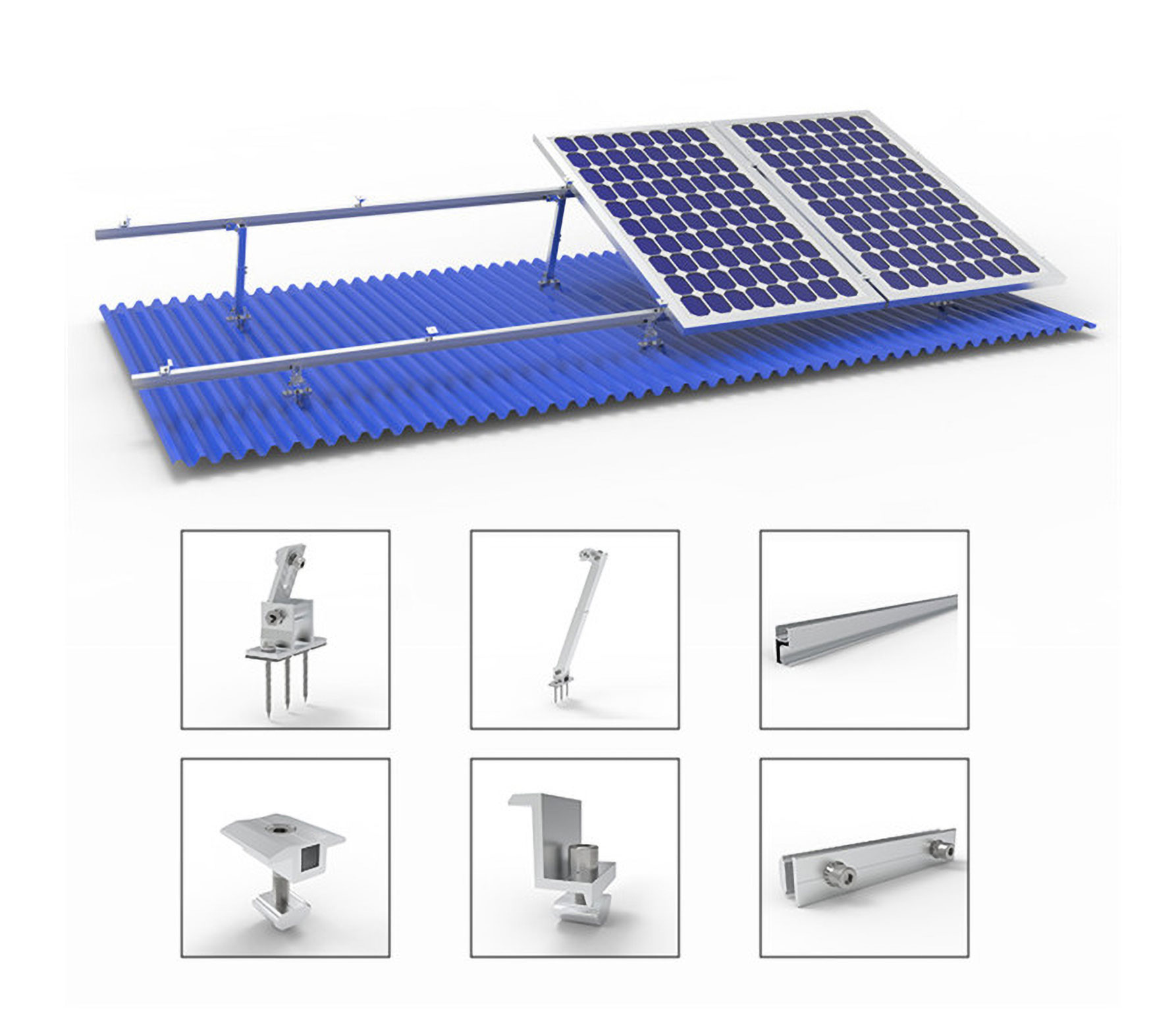

Metal Roof Solar Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
Metal Roof Solar Brackets |
|
|
Product Warranty |
15 Years |
|
|
Product System Overview |
||
|
Type |
Pitched Roof |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait, Landscape |
|
|
Roof Types |
Tile |
|
|
Roof Pitch |
0-30 ° |
|
|
Wind Load |
216 km/h |
|
|
Snow Load |
2.4 kN/m2 |
|
|
General Data |
||
|
Supporting Structure Materials |
Aluminium, Stainless Steel |
|
|
Small Parts Materials |
Aluminium, Stainless Steel |
|
|
|
||
|

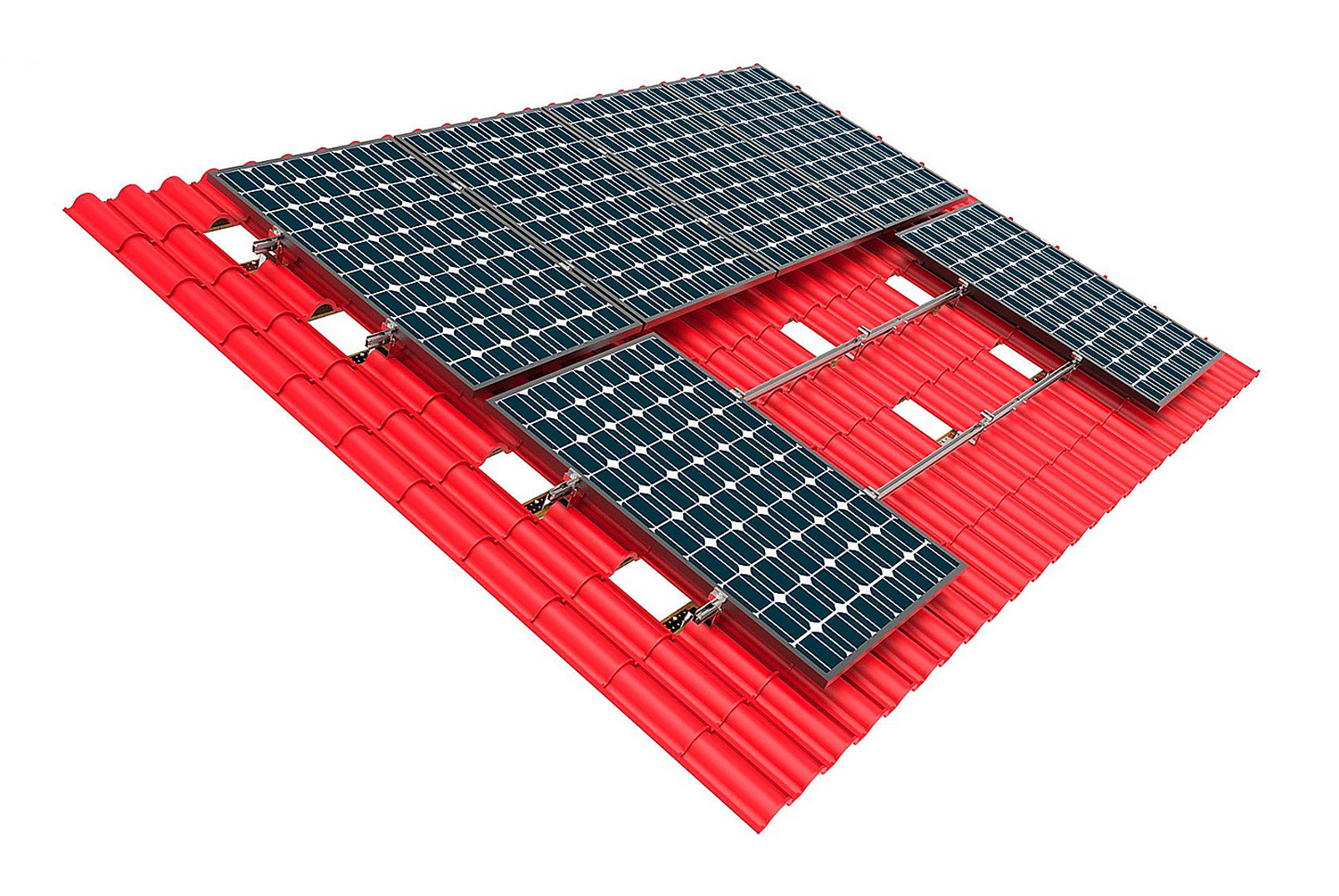

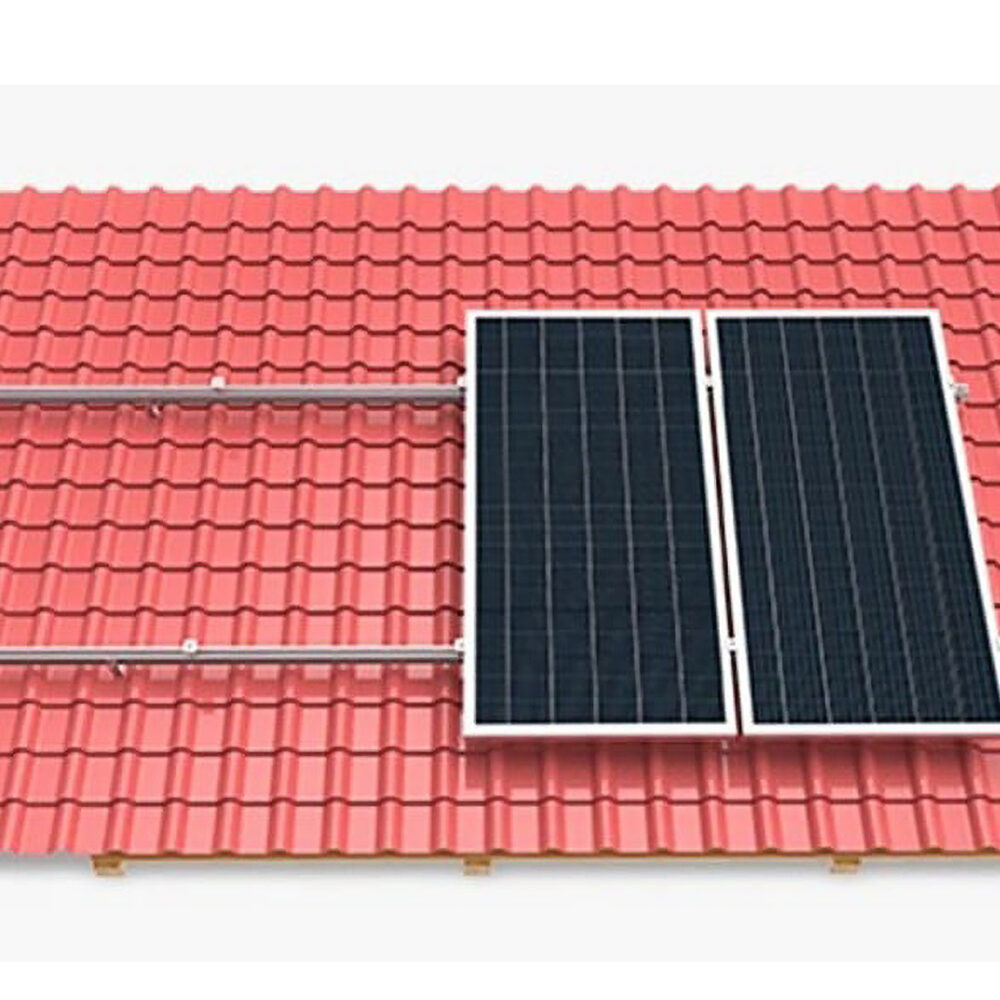

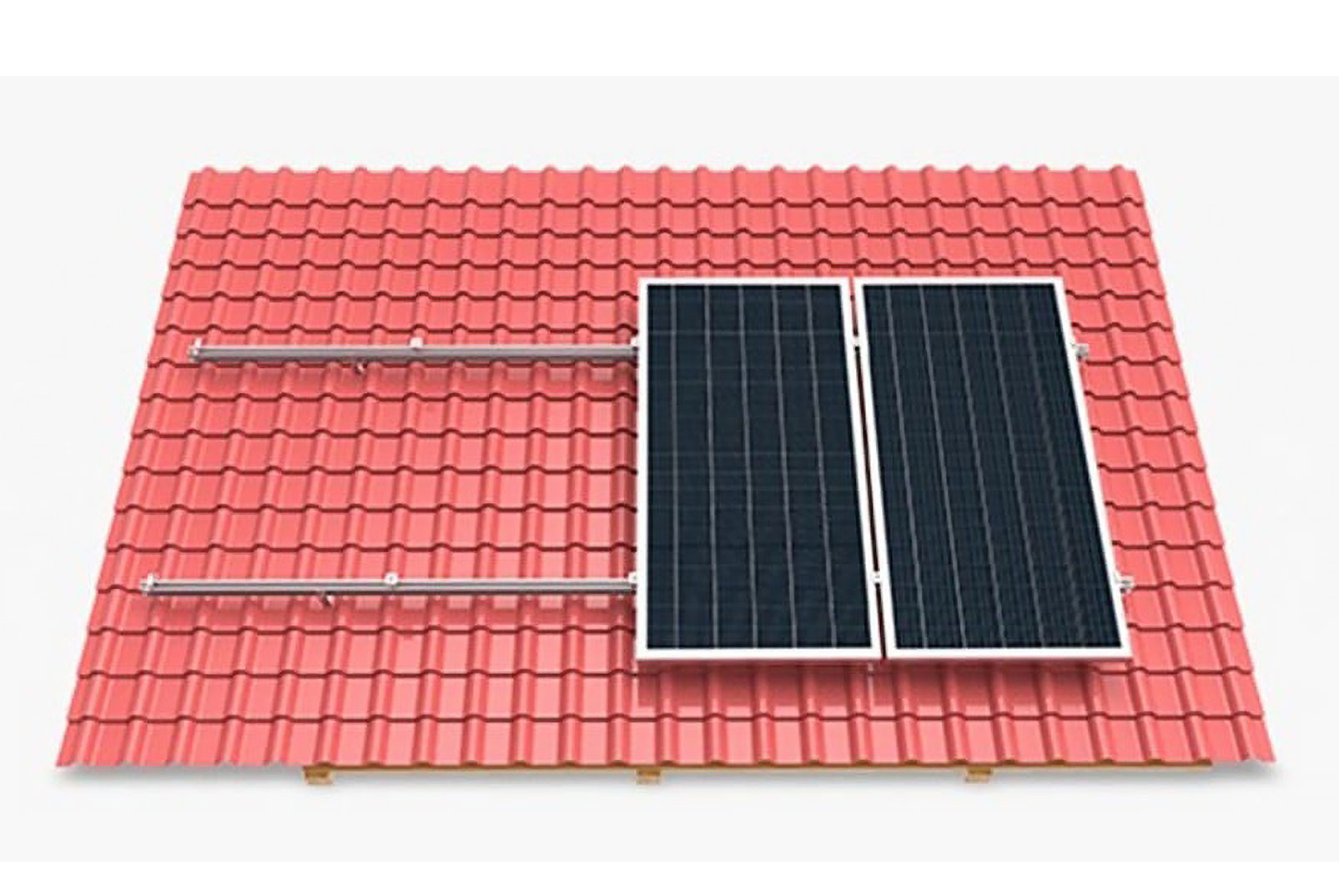

Tile Roof Solar Mounting System |
||
|
Product Characteristics |
||
|
Model No. |
Tile Roof Solar Mounting System |
|
|
Product Warranty |
10 Years |
|
|
Product System Overview |
||
|
Type |
Pitched Roof |
|
|
Mounting System Arrangement |
Rows |
|
|
Panel Framing |
Framed, Unframed |
|
|
Panel Orientation |
Portrait, Landscape |
|
|
Roof Types |
Tile, Shingle Surface |
|
|
Roof Pitch |
0-60 ° |
|
|
Wind Load |
216 km/h |
|
|
Snow Load |
1.4 kN/m2 |
|
|
General Data |
||
|
Supporting Structure Materials |
Aluminium |
|
|
Small Parts Materials |
Aluminium, Stainless Steel |
|
