Description
|

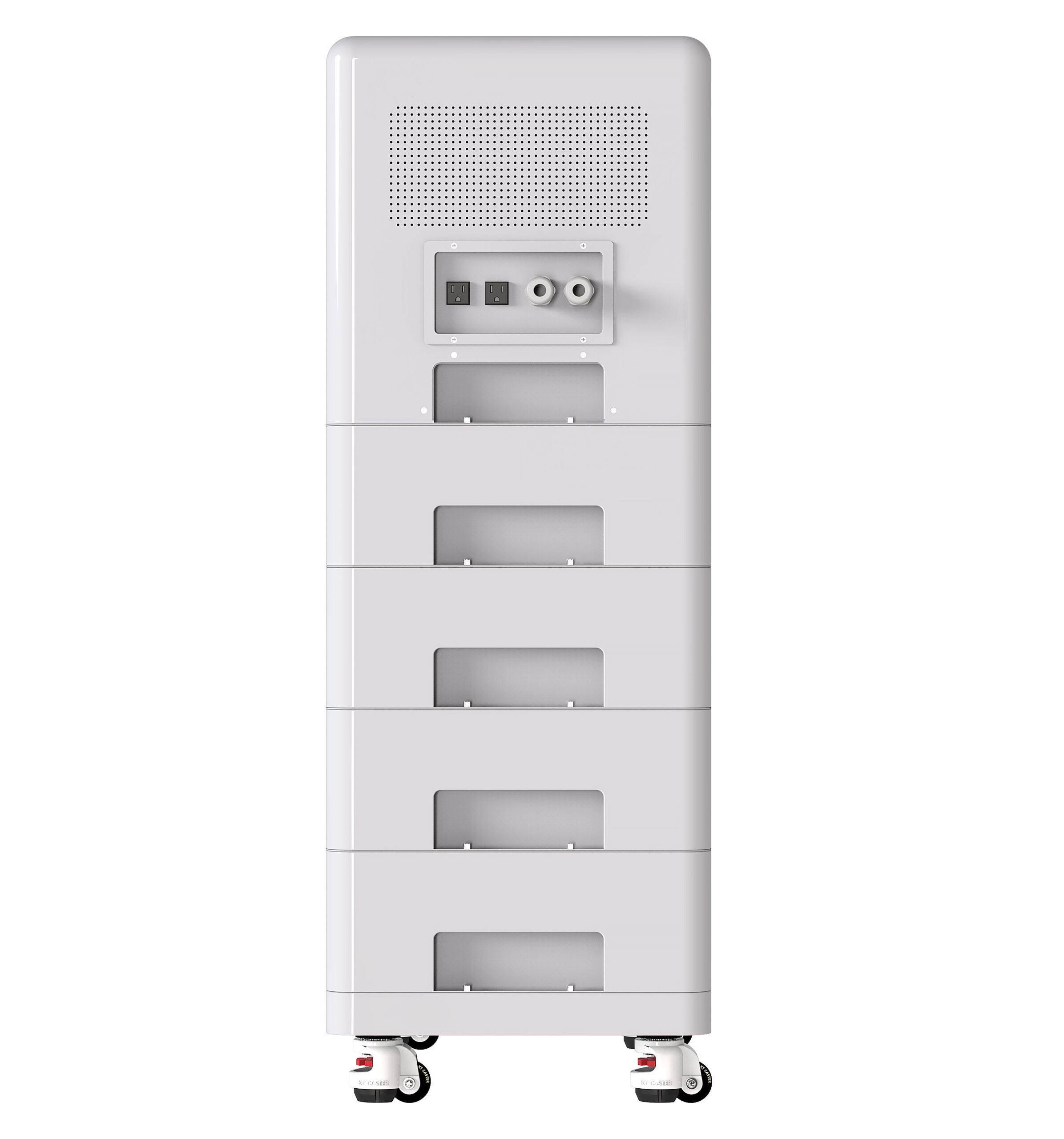

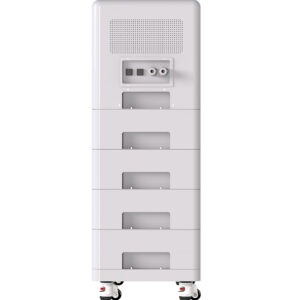

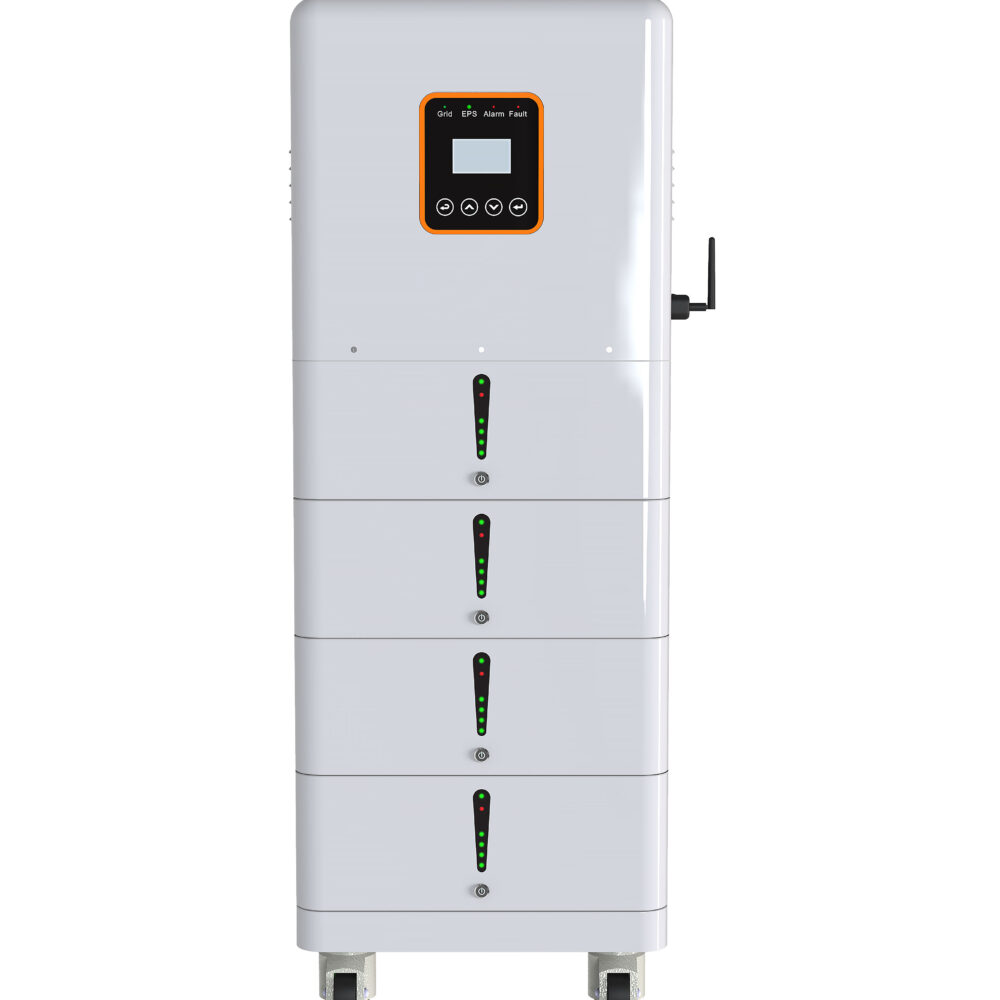

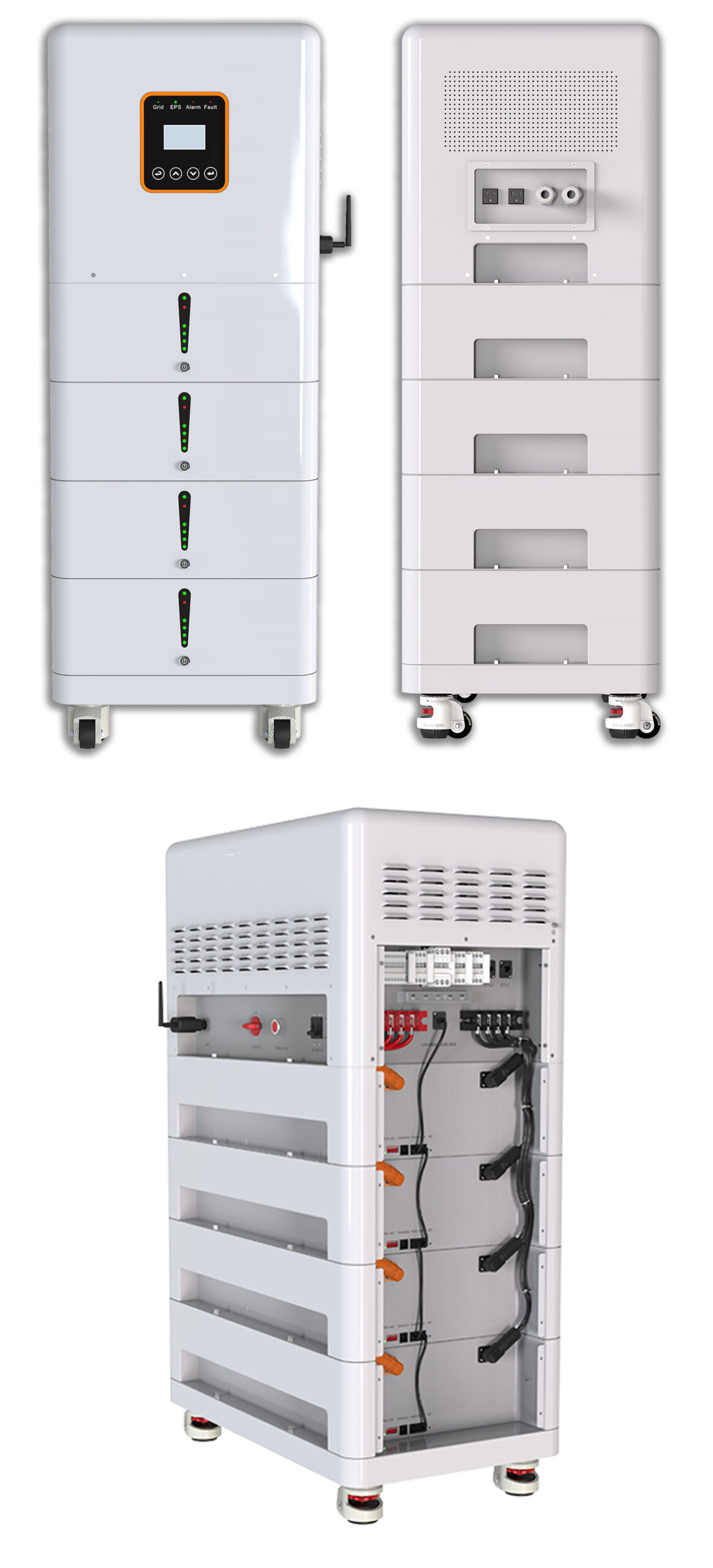

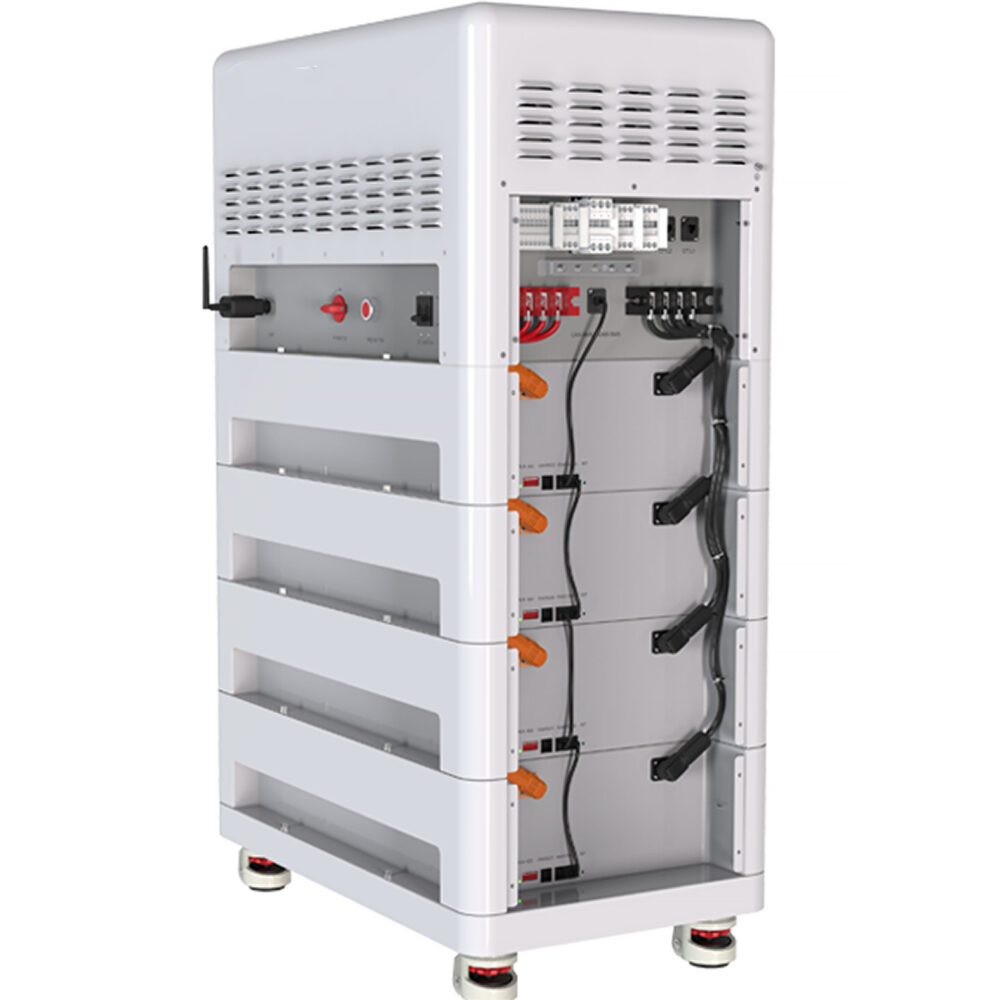

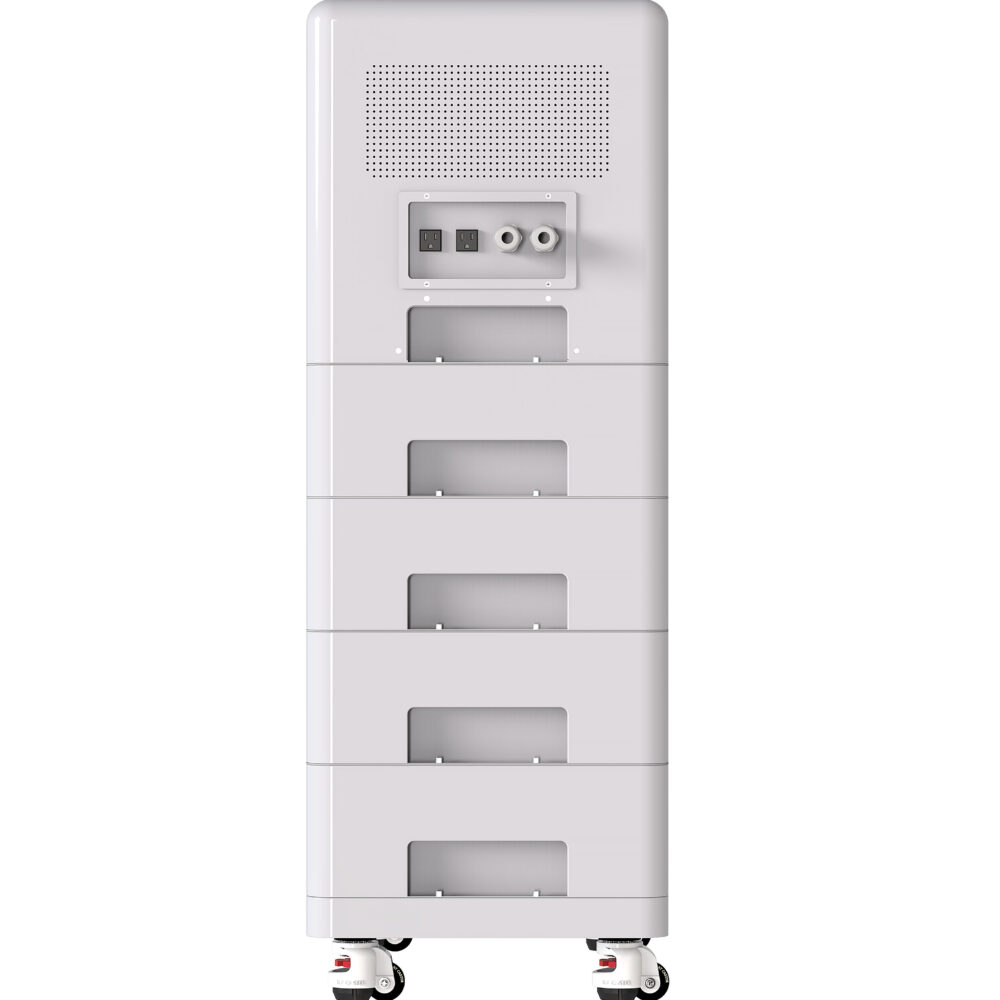

Fuoco-B08 (All-in-one ESS with 8Kw Hybrid Inverter) |
|
 |
|
|
Product Characteristics |
|
|
Specification |
|
|
Model No. |
Fo-B08 |
|
Product Warranty |
10 Years |
|
Storage System Technology |
LFP (LiFePO4) |
|
Battery Datasheet |
|
|
Electrical Data |
|
|
Nominal Voltage |
51.2 V |
|
Nominal Capacity |
400Ah@20hr |
|
Max. Discharge Current |
100 A |
|
Max. Charge Current |
100 A |
|
Internal Resistance |
50 mΩ |
|
Design Life |
15 Years |
|
Cycle Life |
6000@80%DOD |
|
Temperature Parameters |
|
|
Charge Temperature |
-0 ~ +55 ℃ |
|
Discharge Temperature |
-20 ~ +55 ℃ |
|
Storage Temperature |
-10 ~ +55 ℃ |
|
General Data |
|
|
Dimension (L/W/H) |
750x450x1200 mm |
|
Weight |
270 Kg |
|
Inverter Datasheet |
|
|
Inverter Input Data (DC) |
|
|
Max. DC Power |
10 kW |
|
Max. DC Voltage |
800 V |
|
Rated DC Voltage |
550 V |
|
MPP(T) Voltage Range |
200~650 V |
|
No of MPP Trackers |
2 |
|
Connectors |
MC4 |
|
Inverter Output Data (AC) |
|
|
Max. AC Power |
8.8 kW |
|
Nominal AC Power |
8 kW |
|
Output AC Voltage Range |
220~240 V |
|
Nominal AC Voltage |
220, 230, 240 V |
|
Max. AC Current |
13 A |
|
Rated AC Current |
12 A |
|
Frequency Range |
50-60 Hz |
|
Power Factor (cosθ) |
0.8 |
|
Distortion (THD) |
< 3 % |
|
Inverter General Data |
|
|
Dimensions (H/W/D) |
750x450x1200 mm |
|
Weight |
270 kg |
|
Transformer |
High Frequency-Transformer |
|
Cooling |
Fan |
|
Interface |
RS 232, RS 485, Bluetooth |
|
Display |
LCD |
|
|
|
|

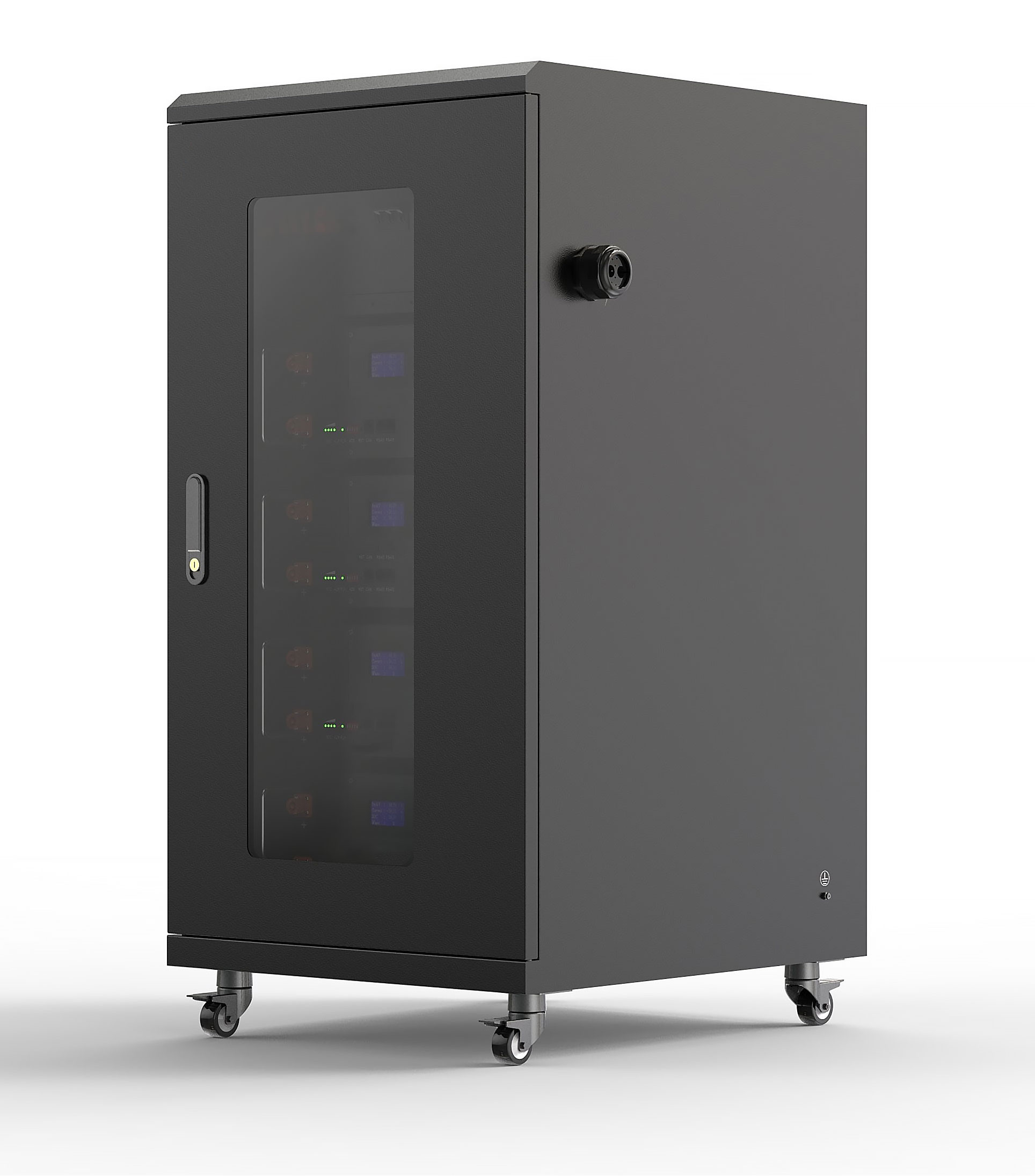

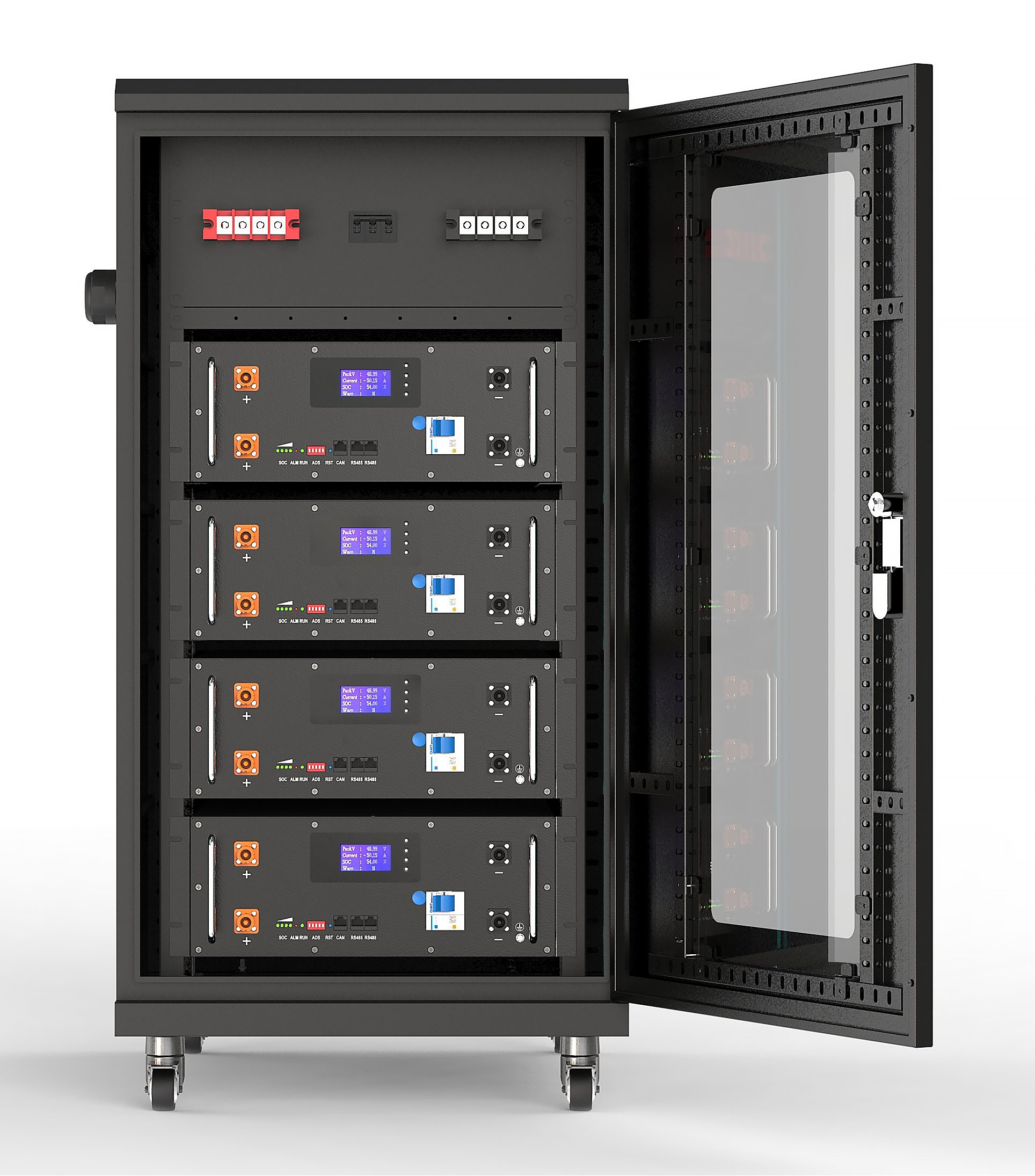

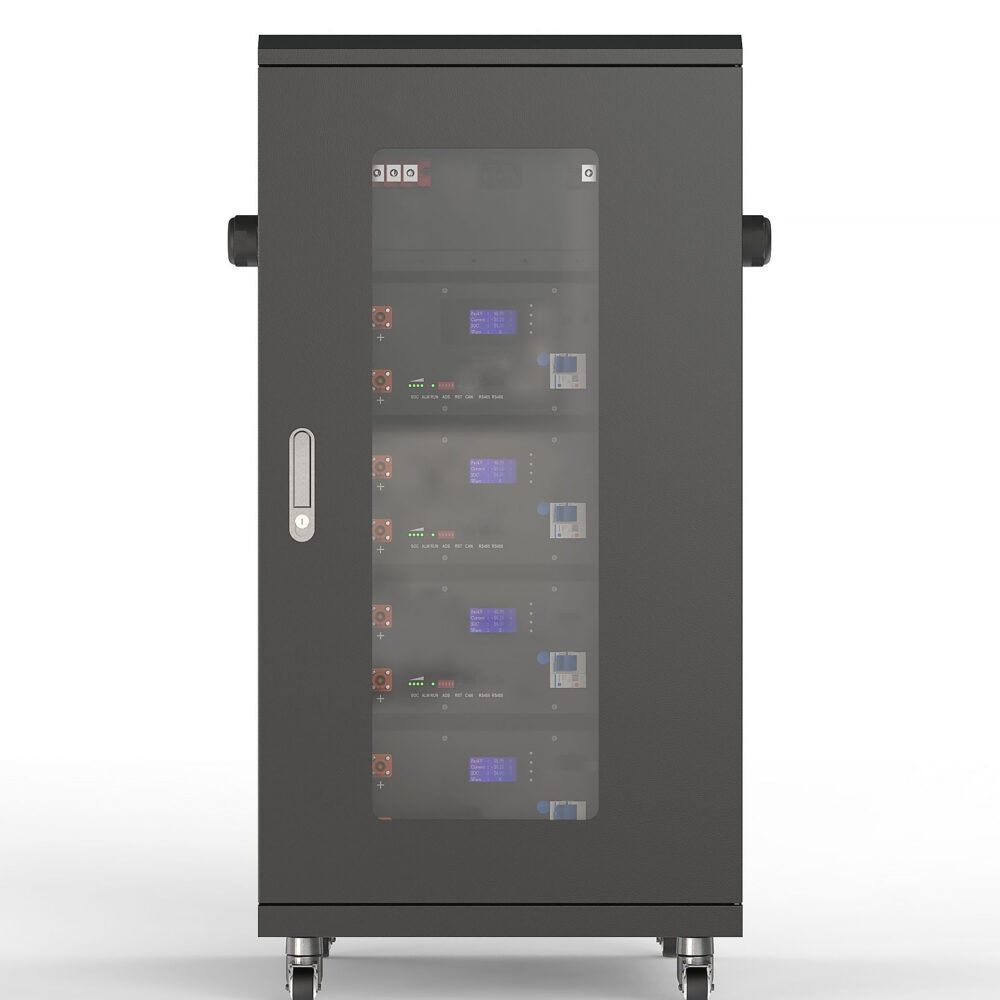

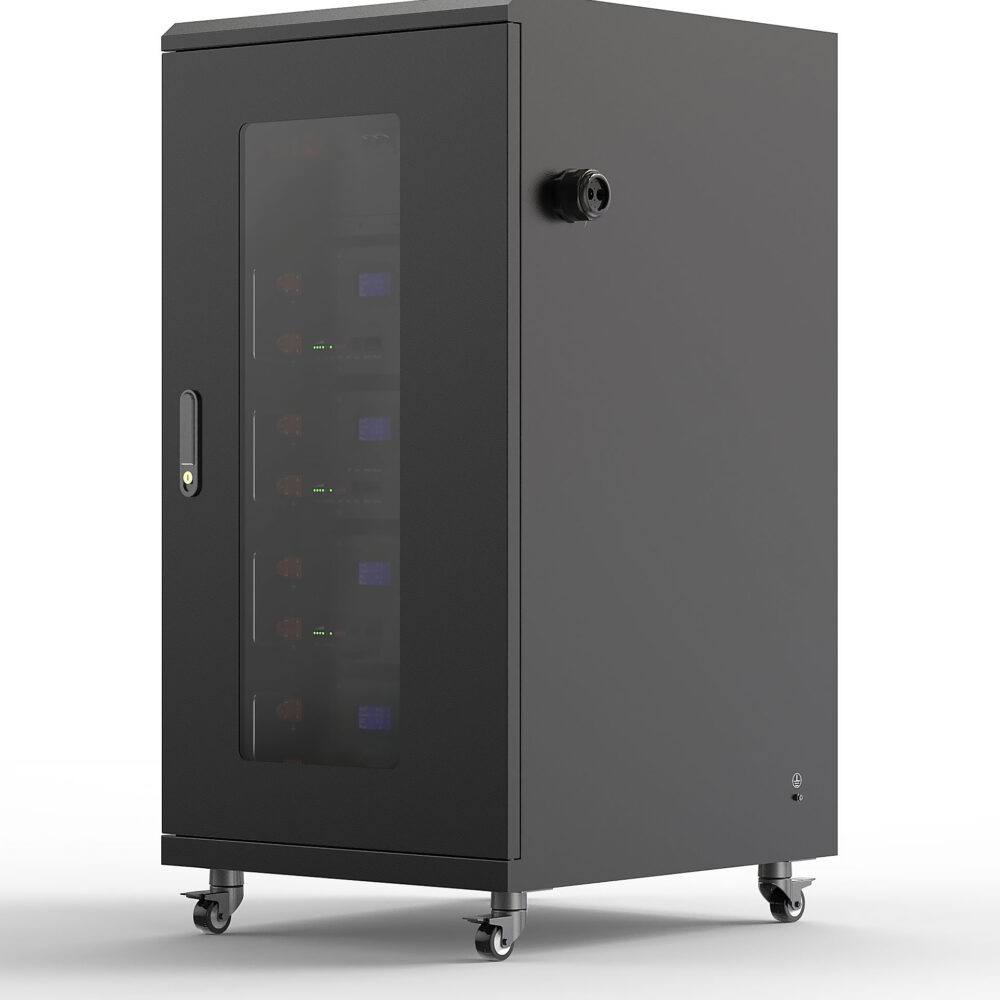

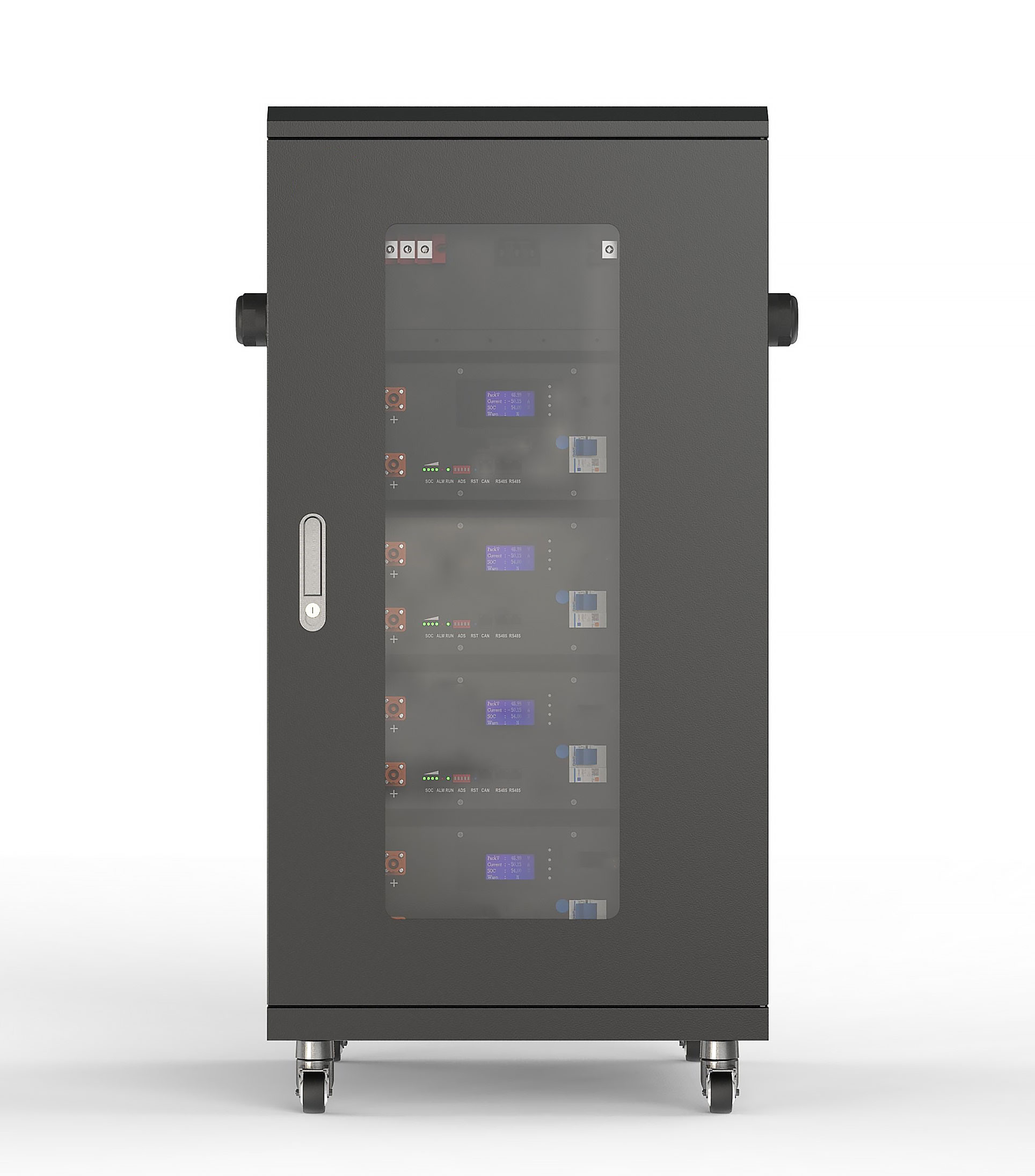

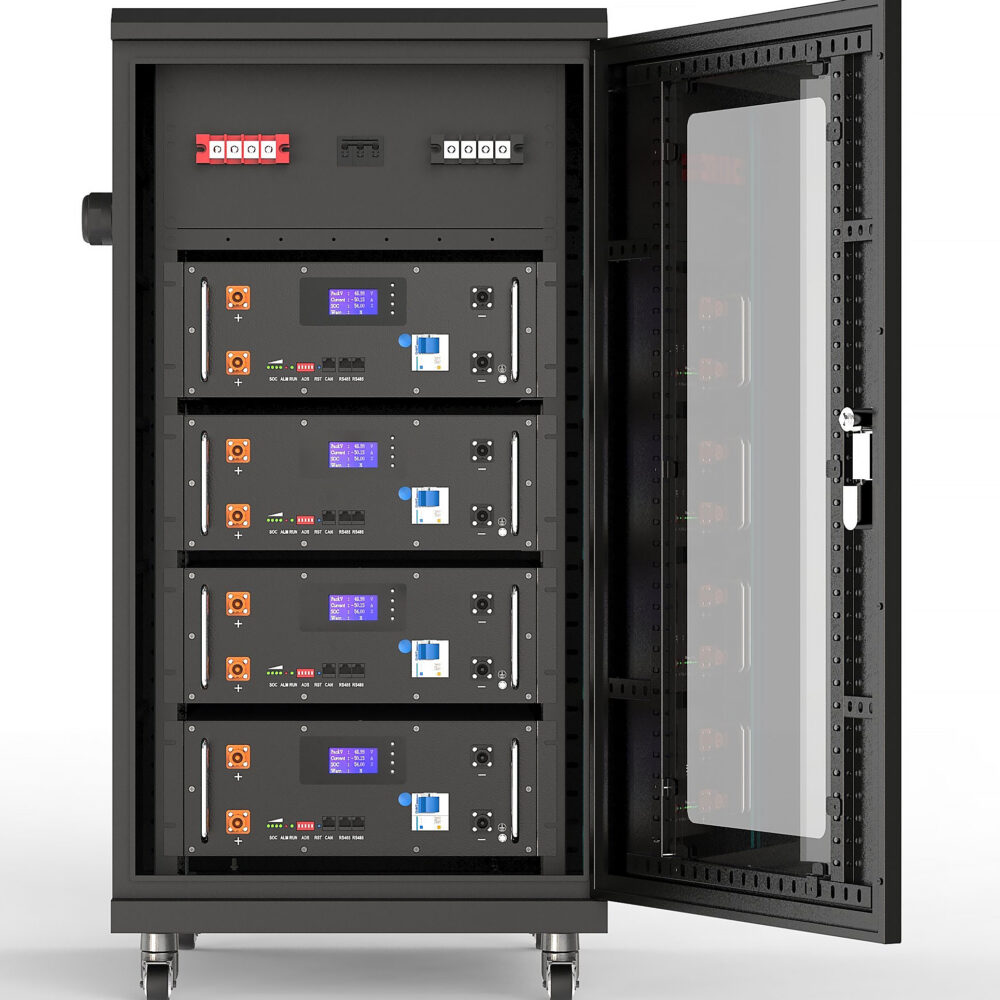

Forza-C 20K |
|
|
|
|
|
Product Characteristics |
|
|
Specification |
|
|
Model No. |
Forza-C 20K |
|
Product Warranty |
10 Years |
|
Storage System Technology |
LFP (LiFePO4) |
|
Battery Datasheet |
|
|
Electrical Data |
|
|
Nominal Voltage |
51.2 V |
|
Nominal Capacity |
400Ah@20hr |
|
Max. Discharge Current |
100 A |
|
Max. Charge Current |
100 A |
|
Internal Resistance |
50 mΩ |
|
Cycle Life |
6000@80%DOD |
|
Temperature Parameters |
|
|
Charge Temperature |
-0 ~ +55 ℃ |
|
Discharge Temperature |
-20 ~ +55 ℃ |
|
Storage Temperature |
-10 ~ +55 ℃ |
|
General Data |
|
|
Dimension (L/W/H) |
600x600x1200 mm |
|
Weight |
280 Kg |
