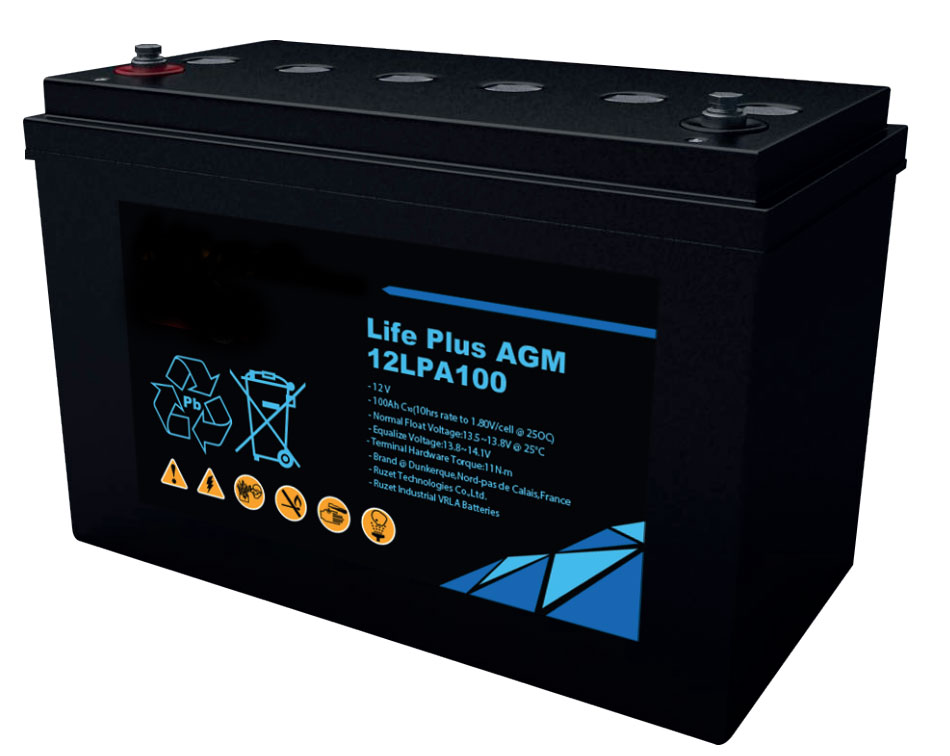

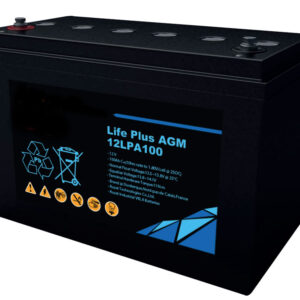

French Lusheng Battery LPA Series

Product Characteristics

Specification

Model No.

12LPA24

12LPA30

12LPA40

12LPA50

12LPA75

12LPA100

12LPA120

Product Warranty

3 Years

Storage System Technology

GEL

Battery Datasheet

Electrical Data

Nominal Voltage

12 V

Nominal Capacity

24Ah@10hr

30Ah@10hr

40Ah@10hr

50Ah@10hr

75Ah@10hr

100Ah@10hr

120Ah@10hr

Max. Discharge Current

360 A

425 A

456 A

600 A

900 A

1200 A

1300 A

Internal Resistance

14 mΩ

13 mΩ

10 mΩ

8 mΩ

6.6 mΩ

4.9 mΩ

4.0 mΩ

Design Life

12 Years

Material Data

Panel Dimension (H/W/D)

166.5x175x125
mm

166.5x175x125
mm

197x165x170 mm

257x132x200 mm

259x168x214 mm

330x173x220 mm

410x177x225 mm

Weight

8.1 Kg

8.8 Kg

13.2 Kg

16 Kg

23 Kg

31 Kg

37.6 Kg

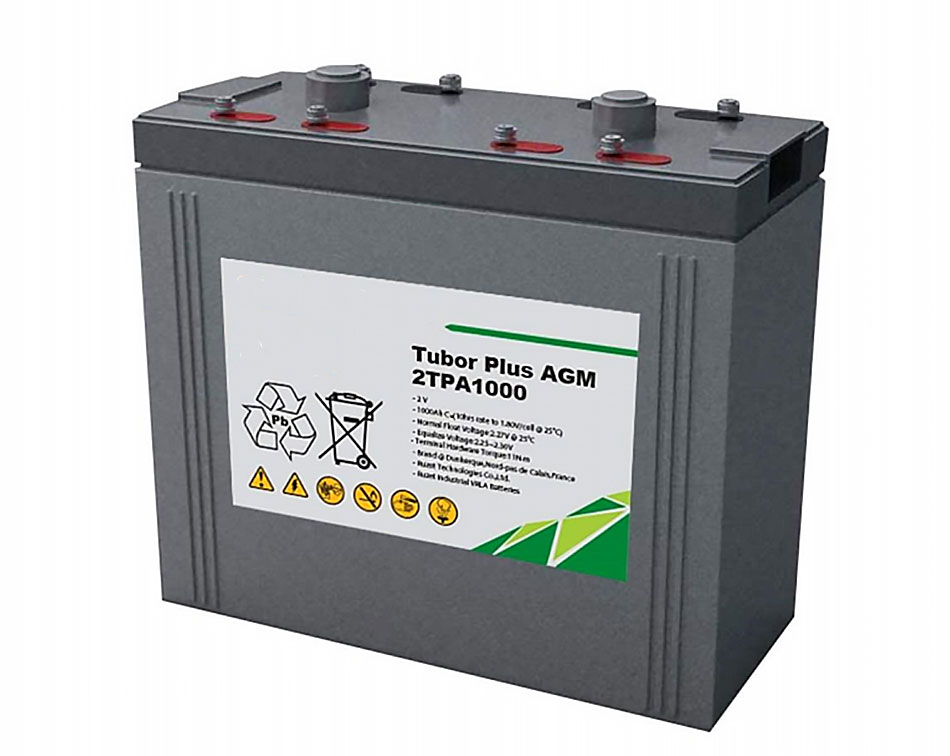

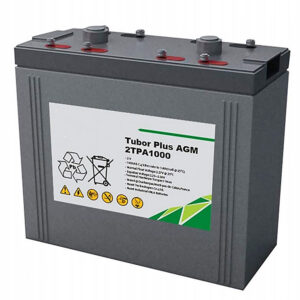

French Lusheng Battery AGM (TPA) Series

Product Characteristics

Specification

Model No.

2TPA1000

Product Warranty

5 Years

Storage System Technology

AGM

Battery Datasheet

Electrical Data

Nominal Voltage

2 V

Nominal Capacity

395Ah@1hr
1000Ah@10hr 1060Ah@20hr

Internal Resistance

0.45 mΩ

Design Life

12 Years

Cycle Life

1250@80%DOD

Material Data

Panel Dimension (H/W/D)

475x175x350 mm

Weight

66 Kg

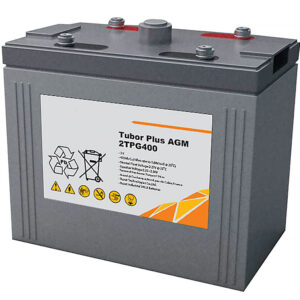

French Lusheng Battery TPG Series

Product Characteristics

Specification

Model No.

2TPG100

2TPG200

2TPG300

2TPG400

2TPG500

2TPG600

2TPG800

2TPG1000

Product Warranty

12 Years

Storage System Technology

GEL

Battery Datasheet

Electrical Data

Nominal Voltage

2 V

Nominal Capacity

100Ah@10hr
106Ah@20hr

200Ah@10hr
212Ah@20hr

300Ah@10hr
318Ah@20hr

400Ah@10hr
424Ah@20hr

500Ah@10hr
530Ah@20hr

600Ah@10hr
636Ah@20hr

800Ah@10hr
848Ah@20hr

1000Ah@10hr 1060Ah@20hr

Internal Resistance

1.4 mΩ

1 mΩ

0.9 mΩ

0.7 mΩ

0.6 mΩ

0.55 mΩ

0.5 mΩ

0.45 mΩ

Cycle Life

1300@80%DOD

Material Data

Panel Dimension (H/W/D)

170x98x212 mm

170x110x350 mm

170x150x350 mm

210x175x350 mm

240x175x350 mm

300x175x350 mm

410x175x350 mm

475x175x350 mm

Weight

7.8 Kg

15.2 Kg

20.8 Kg

29.5 Kg

34.0 Kg

42.5 Kg

55.6 Kg

70.5 Kg
