Description
|

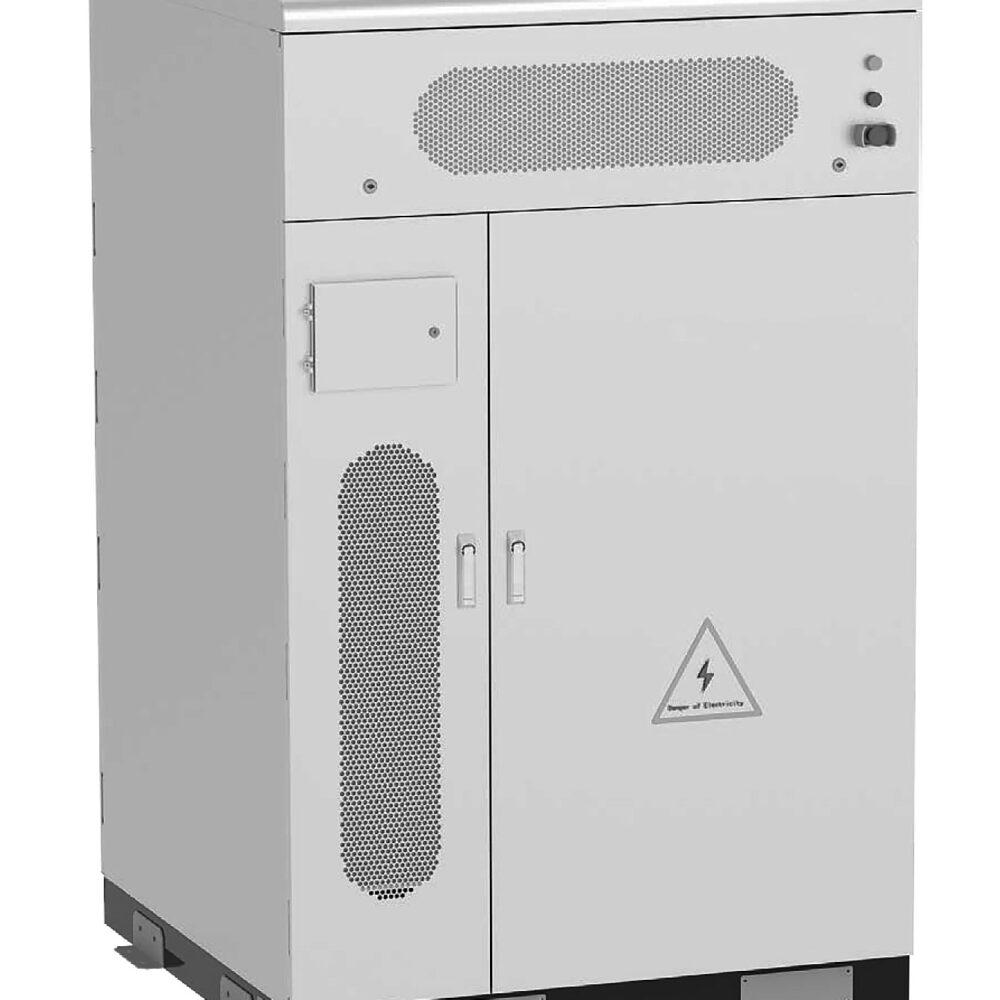

125kw261kWh Liquid Cooling AC Coupled Battery Energy Storage System |
||
  |
||
|
Product Characteristics |
||
|
Specification |
||
|
Model No. |
GSL-BESS-125K261(AC |
GSL-BESS-100K261(AC |
|
Product Warranty |
15 Years |
|
|
Configuration |
All-in-one |
|
|
Storage System Technology |
LFP (LiFePO4) |
|
|
Parts |
BMS |
|
|
Mounting Options |
Floor |
|
|
Max Parallel Units |
10 |
|
|
Battery Datasheet |
||
|
Electrical Data |
||
|
Nominal Voltage |
832 V |
832 V |
|
Operating Voltage Range |
650 – 950 V |
|
|
Nominal Capacity |
180Ah@20hr |
180Ah@20hr |
|
Nominal Energy |
232.9 kWh |
232.9 kWh |
|
Usable Energy |
232.9 kWh |
232.9 kWh |
|
Nominal Discharge Current |
180 A |
180 A |
|
Nominal Charge Current |
180 A |
180 A |
|
Design Life |
15 |
15 |
|
Cycle Life |
12000@80%DOD |
|
|
Temperature Parameters |
||
|
Operating Temperature |
-0 ~ +55 ℃ |
|
|
General Data |
||
|
Dimension (L/W/H) |
1376.5x1300x2050 mm |
1376.5x1300x2050 mm |
|
Weight |
3200 Kg |
3200 Kg |
|
IP Rating |
IP54 |
|
|
Max. Altitude |
3000 m |
|
|
Cooling Method |
Liquid |
|
|
Communication |
CAN, RS232, RS485, WiFi, Cellular, Ethernet |
|
|
Monitoring |
Screen, App |
|
