Description
|

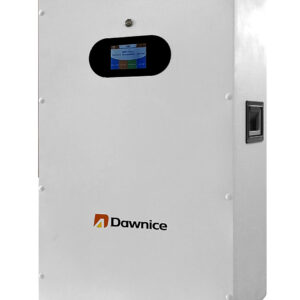

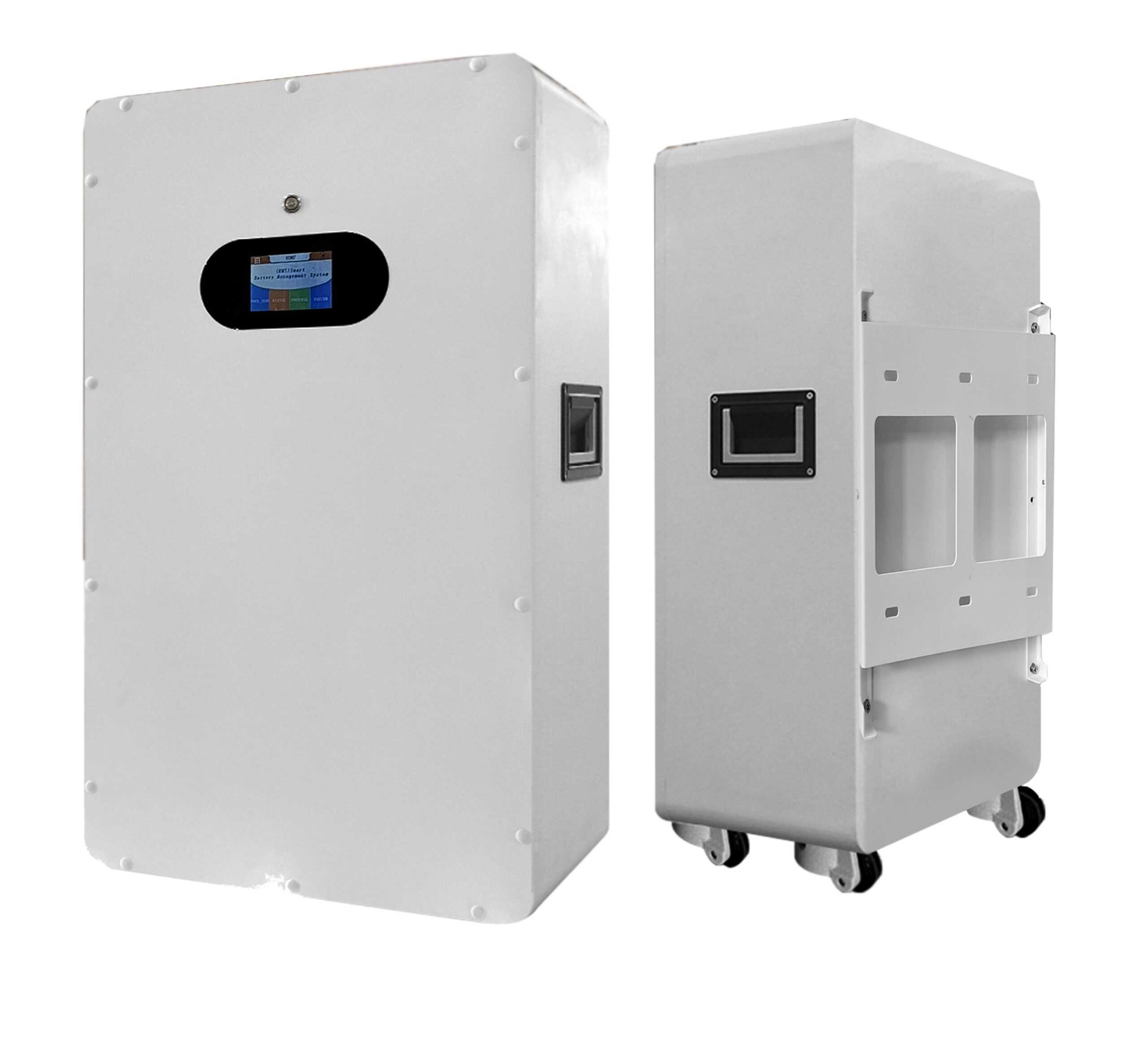

5kwh 10kWh Lithium-Ion Battery Home Power Wall Energy Storage Battery |
||||||||
|
|
||||||||
|
Product Characteristics |
||||||||
|
Specification |
||||||||
|
Model No. |
5KWh LiFePo4 Battery |
10KWh LiFePo4 Battery |
||||||
|
Product Warranty |
10 Years |
|||||||
|
Configuration |
Battery Only |
|||||||
|
Storage System Technology |
LFP (LiFePO4) |
|||||||
|
Parts |
BMS |
|||||||
|
Mounting Options |
Wall |
|||||||
|
Max Parallel Units |
16 |
|||||||
|
Battery Datasheet |
||||||||
|
Electrical Data |
||||||||
|
Nominal Voltage |
51.2 V |
|||||||
|
Nominal Capacity |
200Ah@20hr |
260Ah@20hr |
||||||
|
Nominal Energy |
5.12 kWh |
10.24 kWh |
||||||
|
Max. Discharge Current |
100 A |
200 A |
||||||
|
Max. Charge Current |
100 A |
200 A |
||||||
|
Design Life |
10 Years |
|||||||
|
Cycle Life |
6000@80%DOD |
|||||||
|
Temperature Parameters |
||||||||
|
Operating Temperature |
-20 ~ +60 ℃ |
|||||||
|
General Data |
||||||||
|
Dimension (L/W/H) |
760x530x200 mm |
|||||||
|
Weight |
96 Kg |
|||||||
|
IP Rating |
IP54 |
|||||||
|
Max. Altitude |
Fan |
|||||||
|
Cooling Method |
Liquid |
|||||||
|
Communication |
CAN, RS485, WiFi, Ethernet |
|||||||
|
Monitoring |
Screen, App |
|||||||
|
|
||||||||
|
15kWh 20kwh 30kwh 50kwh High Voltage Lithium-Ion Battery |
||||||||
|
|
||||||||
|
Product Characteristics |
||||||||
|
Specification |
||||||||
|
Model No. |
10kwh 20kwh 30kwh Home Energy Storage Battery |
|||||||
|
Product Warranty |
10 Years |
|||||||
|
Configuration |
Stackable |
|||||||
|
Storage System Technology |
LFP (LiFePO4) |
|||||||
|
Parts |
BMS |
|||||||
|
Mounting Options |
Floor |
|||||||
|
Max Parallel Units |
16 |
|||||||
|
Battery Datasheet |
||||||||
|
Electrical Data |
||||||||
|
Nominal Voltage |
102.4 V |
|||||||
|
Nominal Capacity |
100Ah@20hr |
|||||||
|
Nominal Energy |
10.24 kWh |
|||||||
|
Design Life |
15 Years |
|||||||
|
Cycle Life |
6000@80%DOD |
|||||||
|
Round Trip Efficiency |
95 % |
|||||||
|
Temperature Parameters |
||||||||
|
Operating Temperature |
-20 ~ +45 ℃ |
|||||||
|
General Data |
||||||||
|
Dimension (L/W/H) |
1200x800x600 mm |
|||||||
|
Weight |
80 Kg |
|||||||
|
IP Rating |
IP41 |
|||||||
|
Cooling Method |
Fan |
|||||||
|
Communication |
CAN, RS232, RS485, WiFi |
|||||||
|
Monitoring |
Screen |
|||||||
|
|
||||||||
|

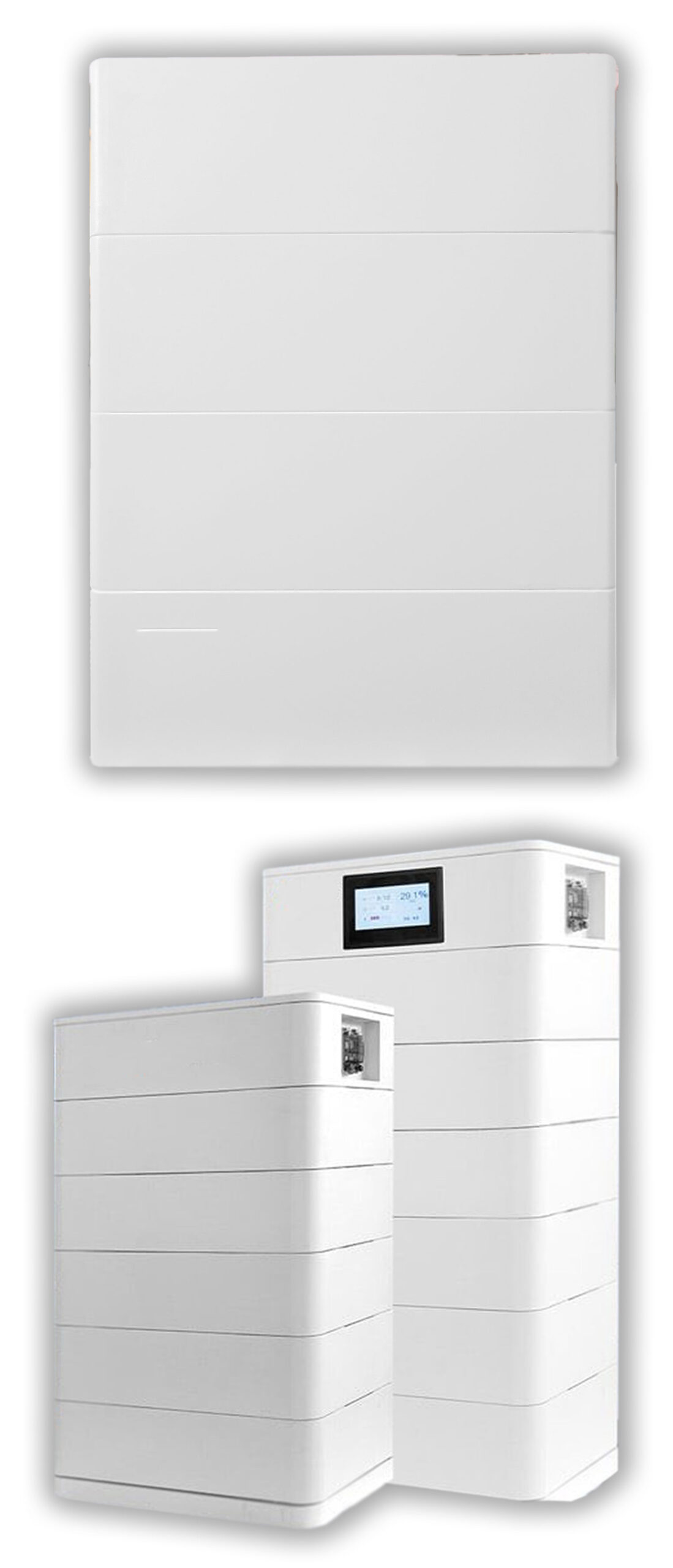

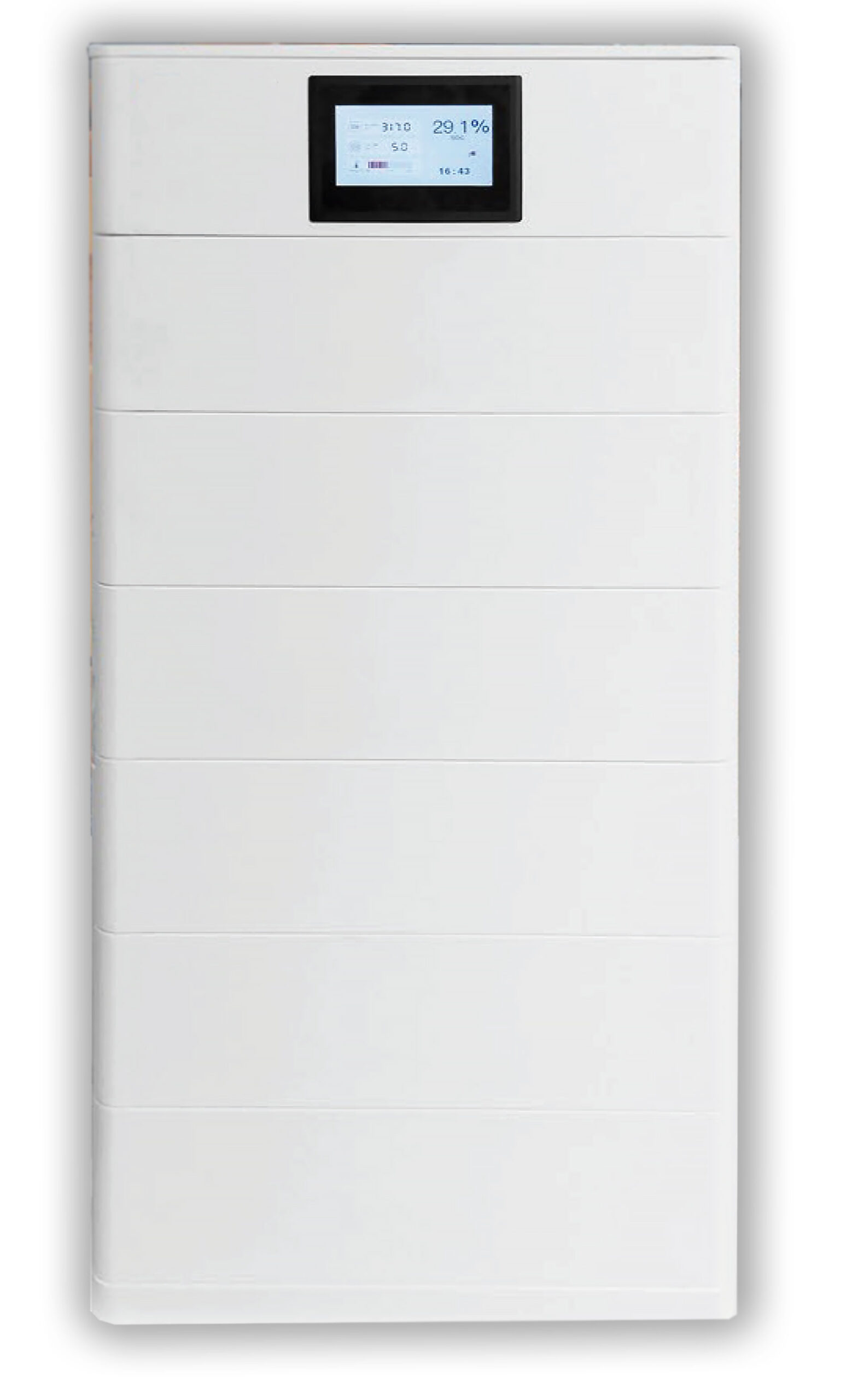

10kWh/ 15kWh/ 20kwh Lithium-Ion Battery |
||||||||
|
|
||||||||
|
Product Characteristics |
||||||||
|
Specification |
||||||||
|
Model No. |
HZEB-LV-10.24kWh |
HZEB-LV-15.36 |
HZEB-LV-20.48kWh |
HZEB-HV-25.6kWh |
HZEB-HV-30.72kWh |
HZEB-LV-35.84kWh |
||
|
Product Warranty |
10 Years |
|||||||
|
Configuration |
Stackable |
|||||||
|
Storage System Technology |
LFP (LiFePO4) |
|||||||
|
Parts |
BMS |
|||||||
|
Mounting Options |
Floor |
|||||||
|
Battery Datasheet |
||||||||
|
Electrical Data |
||||||||
|
Nominal Voltage |
51.2 V |
|||||||
|
Nominal Capacity |
200Ah@20hr |
300Ah@20hr |
400Ah@20hr |
500Ah@20hr |
600Ah@20hr |
700Ah@20hr |
||
|
Nominal Energy |
10.24 kWh |
15.36 kWh |
20.48 kWh |
25.6 kWh |
30.72 kWh |
35.84 kWh |
||
|
Design Life |
10 Years |
|||||||
|
Cycle Life |
6000@80%DOD |
|||||||
|
Temperature Parameters |
||||||||
|
Operating Temperature |
-20 ~ +45 ℃ |
|||||||
|
Discharge Temperature |
-20 ~ +55 ℃ |
|||||||
|
General Data |
||||||||
|
Dimension (L/W/H) |
735x400x675 mm |
735x400x770 mm |
735x499x905 mm |
735x400x1040 mm |
735x400x1176 mm |
735x400x1311 mm |
||
|
Weight |
138 Kg |
189 Kg |
240 Kg |
291 Kg |
342 Kg |
393 Kg |
||
