Description
|

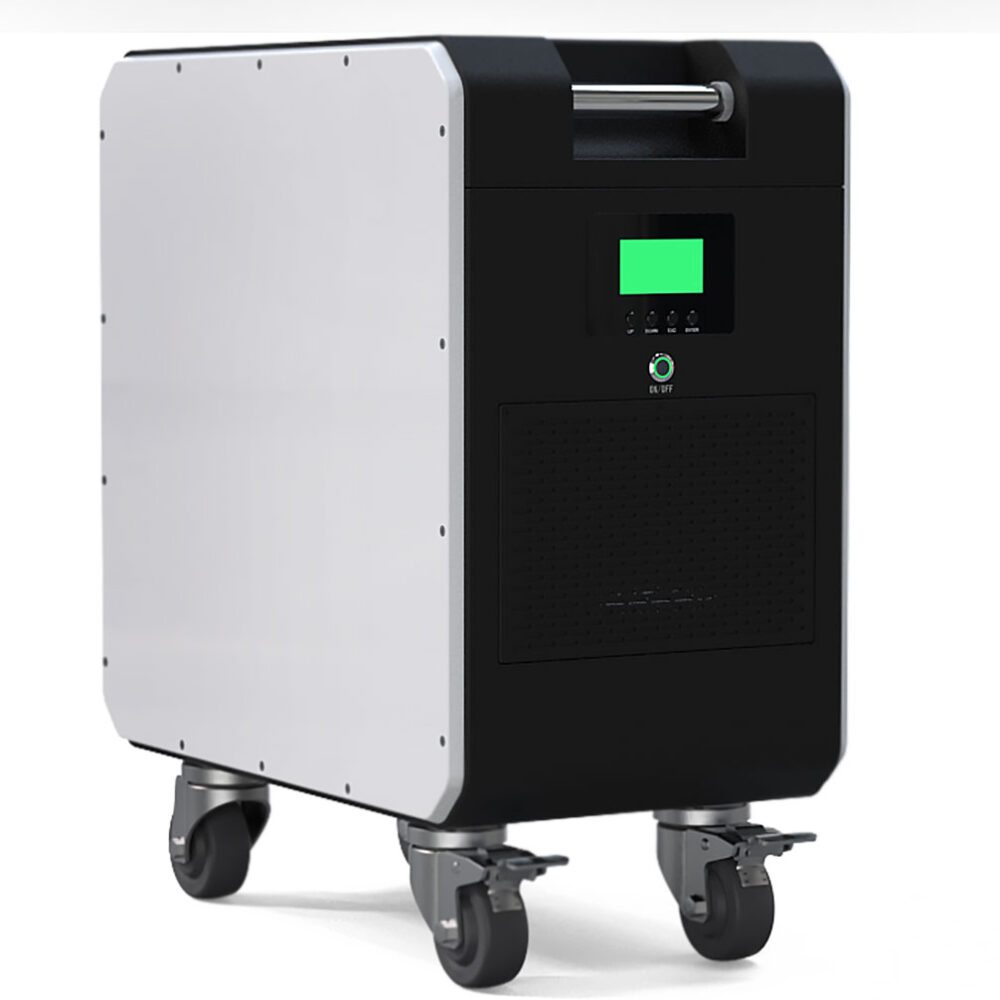

Moveable ESS 5KWH |
|
 |
|
|
Product Characteristics |
|
|
Specification |
|
|
Model No. |
AL5050E1 |
|
Product Warranty |
2 Years |
|
Configuration |
All-in-one |
|
Storage System Technology |
LFP (LiFePO4) |
|
Parts |
inverter |
|
Mounting Options |
Wall |
|
Battery Datasheet |
|
|
Electrical Data |
|
|
Nominal Voltage |
51.2 V |
|
Nominal Capacity |
100Ah@1hr |
|
Nominal Energy |
5.12 kWh |
|
Max. Discharge Current |
150 A |
|
Max. Charge Current |
100 A |
|
Internal Resistance |
45 mΩ |
|
Design Life |
10 Years |
|
Cycle Life |
6000@80%DOD |
|
Temperature Parameters |
|
|
Charge Temperature |
-0 ~ +55 ℃ |
|
Discharge Temperature |
-25 ~ +60 ℃ |
|
Storage Temperature |
-20 ~ +50 ℃ |
|
General Data |
|
|
Dimension (L/W/H) |
485x252x570 mm |
|
Weight |
55 Kg |
|
IP Rating |
IP21, IP54 |
|
Cooling Method |
Fan |
|
Monitoring |
Screen, App |
|
Solar Inverter Datasheet |
|
|
Inverter Input Data (DC) |
|
|
Max. DC Voltage |
280 V |
|
Min. DC Voltage to Start |
90 V |
|
Nominal DC Current |
100 A |
|
MPP(T) Voltage Range |
60~500 V |
|
Inverter Output Data (AC) |
|
|
Max. AC Power |
5.5 kW |
|
Output AC Voltage Range |
90~280 V |
|
Nominal AC Voltage |
100, 230 V |
|
Max. AC Current |
100 A |
|
Frequency Range |
50-60 Hz |
|
No of feed-in phases |
1 |
|
AC Output Connection |
Plug |
