Description
|

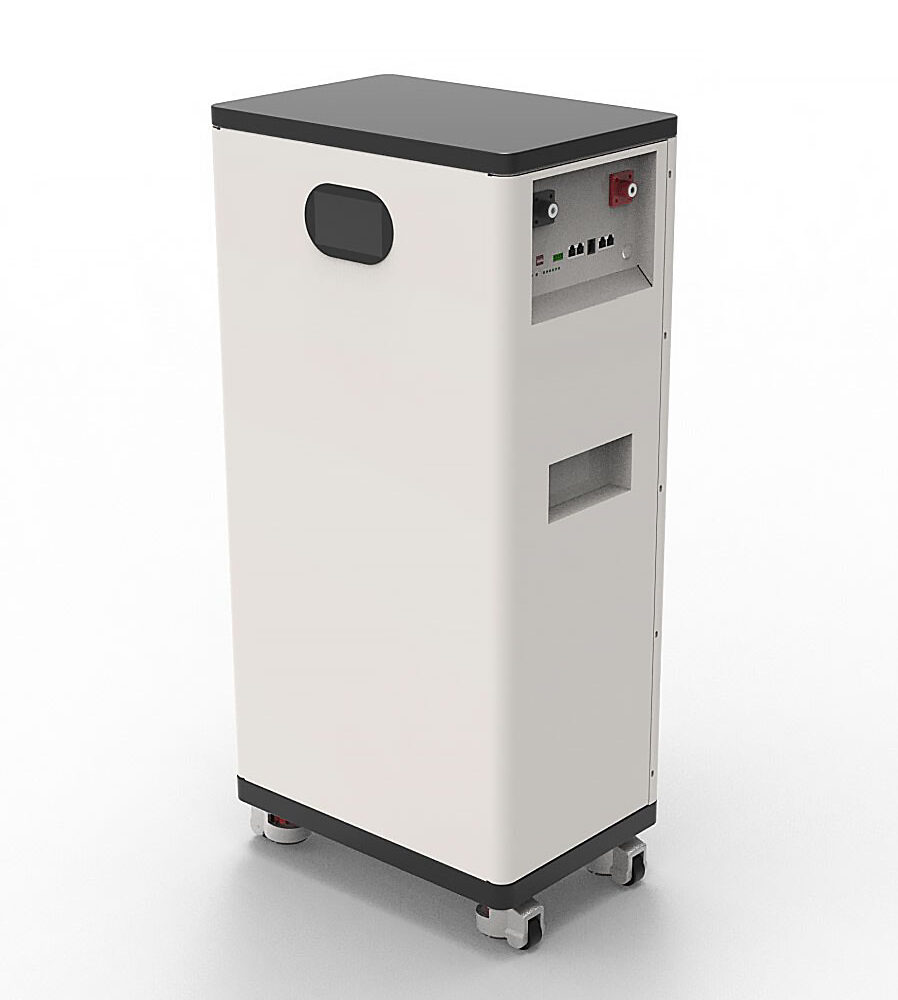

PB2-JK314
|
|||||
|
|
|||||
|
|
Product Characteristics |
||||
|
|
Specification |
||||
|
|
Model No. |
PB2-JK314-HSEV |
PB2-JK314-HSEV |
PB2-JK314-BT314 |
PB2-JK314 LSEV |
|
|
Product Warranty |
5 Years |
|||
|
|
Configuration |
Stackable |
|||
|
|
Storage System Technology |
LFP (LiFePO4) |
|||
|
|
Parts |
BMS |
|||
|
|
Mounting Options |
Floor |
|||
|
|
Max Parallel Units |
15 |
|||
|
|
Battery Datasheet |
||||
|
|
Electrical Data |
||||
|
|
Nominal Voltage |
51.2 V |
|||
|
|
Operating Voltage Range |
44 – 55.2 V |
|||
|
|
Nominal Capacity |
314Ah@1hr |
|||
|
|
Nominal Energy |
16.07 kWh |
|||
|
|
Usable Energy |
16.07 kWh |
|||
|
|
Cycle Life |
8000@100%DOD, 10000@80%DOD |
|||
|
|
Round Trip Efficiency |
95 % |
|||
|
|
Temperature Parameters |
||||
|
|
Operating Temperature |
-20 ~ +55 ℃ |
|||
|
|
General Data |
||||
|
|
Dimension (L/W/H) |
300x440x921 mm |
|||
|
|
Weight |
154 Kg |
|||
|
|
IP Rating |
IP65 |
|||
|
|
Communication |
CAN, RS232, RS485 |
|||
|
|
Monitoring |
App |
|||
