Description
|

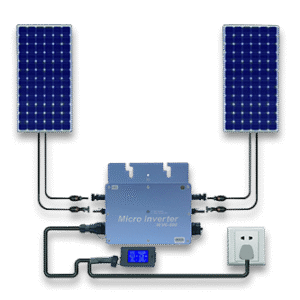

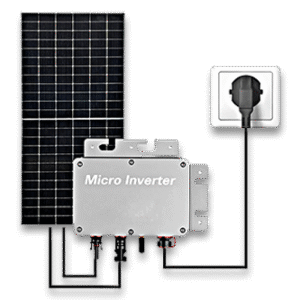

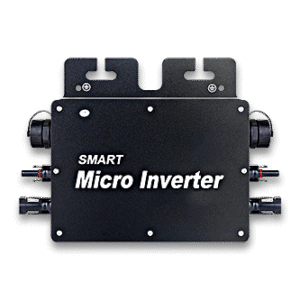

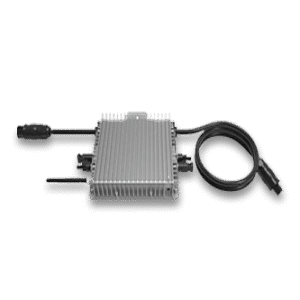

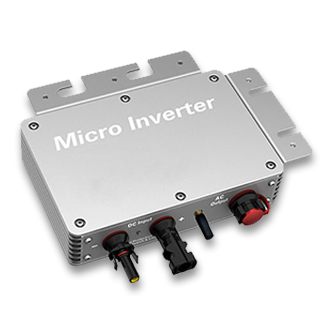

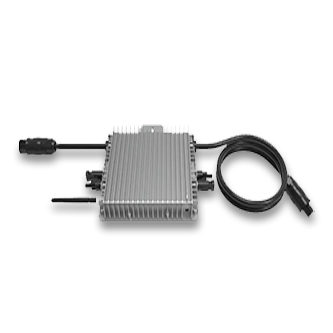

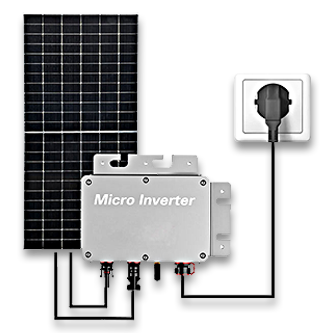

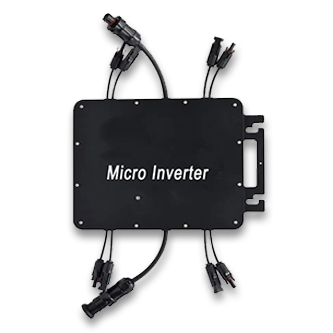

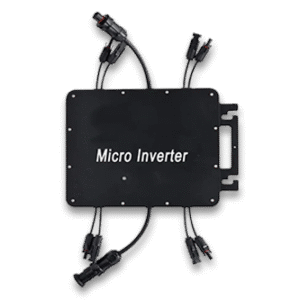

Micro Solar Inverter |
|
|
Specification |
|
|
Power |
0.3 kW – 8000 kW |
|
Product Warranty |
At least 10 years |
|
Input Data (DC) |
|
|
Max. DC Voltage |
50 V – 550 V |
|
Max. DC Current |
9 A – 12 A |
|
MPP(T) Voltage Range |
25~35 V – 100~550 V |
|
Output Data (AC) |
|
|
Output AC Voltage Range |
120~230 V – 184~265 V |
|
Frequency Range |
50-60 Hz |
|
Power Factor (cosθ) |
0.99 |
|
Max. Efficiency |
95.5 % – 98 % |
|
Euro Efficiency |
95 % – 96.7 % |
|
General Data |
|
|
Dimensions (H/W/D) |
195x185x45 mm 230x185x45 mm 500x424x170 mm 168x162x34.5 mm 218x174x34.5 mm |
|
Weight |
1.2 kg – 21 kg |
|
Operating Temperature |
-40 ~ +65 ℃ |
|
Protection Class |
IP65 – IP67 |
|
Humidity |
0-100 % |
|
Cooling |
Natural |
|
Display |
LED |
|
Interface |
WLAN – RS 485 – Bluetooth |
