Description
|

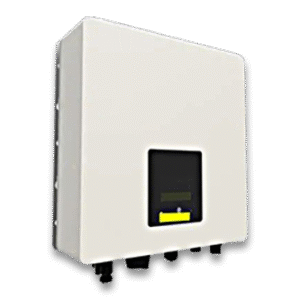

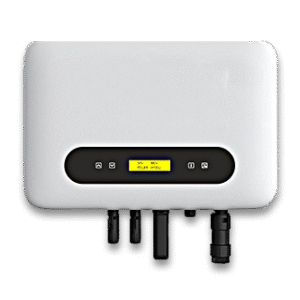

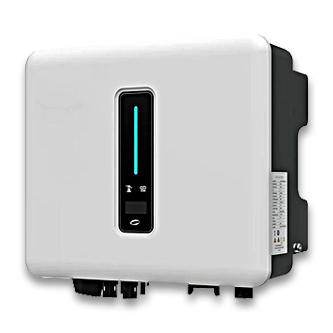

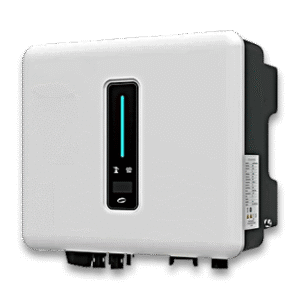

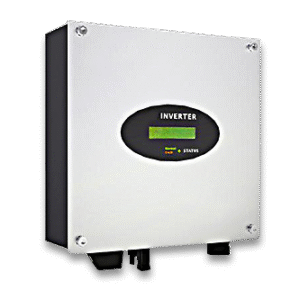

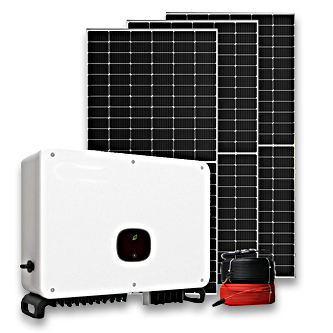

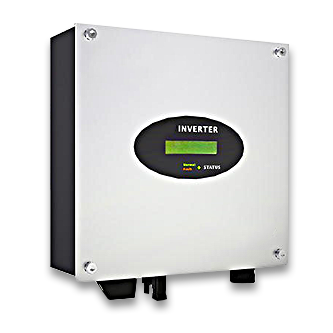

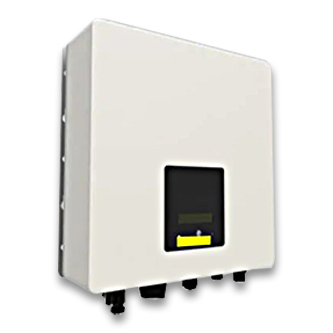

On-Gride Solar Inverter |
|
|
Specification |
|
|
Power |
0.6 kW – 7900 kW |
|
Connector Type |
MC3 – MC4 – Tyco |
|
Product Warranty |
At least 1 years to 10 years |
|
Input Data (DC) |
|
|
Max. DC Voltage |
60 V – 1500 V |
|
Max. DC Current |
18 A – 8046 A |
|
MPP(T) Voltage Range |
22~55 V – 875~1300 V |
|
DC Inputs |
44 |
|
Output AC Voltage Range |
190~270 V , 20~35 V , 160~290 V |
|
Frequency Range |
45 Hz – 65 Hz |
|
Power Factor (cosθ) |
0.8 – 0.99 |
|
Max. Efficiency |
96 % – 99 % |
|
Euro Efficiency |
96% – 98.7 % |
|
Distortion (THD) |
From (< 2 %) to (< 5 %) |
|
General Data |
|
|
Dimensions (H/W/D) |
295x260x115 mm 295x260x1156.8 mm 335x260x120 mm 517x340x260 mm 28.5x193x181 mm 42×195.5×227 mm 50×225.4×342 mm |
|
Weight |
1.9 kg – 25000 kg |
|
Operating Temperature |
(-40 ~ +65 ℃) , (-30 ~ +60 ℃) |
|
Protection Class |
IP54 – IP67 |
|
Humidity |
(0-95 %) – (0-100 %) |
|
Cooling |
Natural – Fan |
|
Display |
LCD |
|
Interface |
WLAN – RS 485 – Ethernet |
