Solar Panel (BIPV)

Solar Panel (BIPV)

BIPV Solar Panels (Building-Integrated Photovoltaics) are solar panels designed to be integrated into building elements such as façades, roofs, or skylights, serving both as construction materials and as energy-generating systems.

Category: Tag:

Description

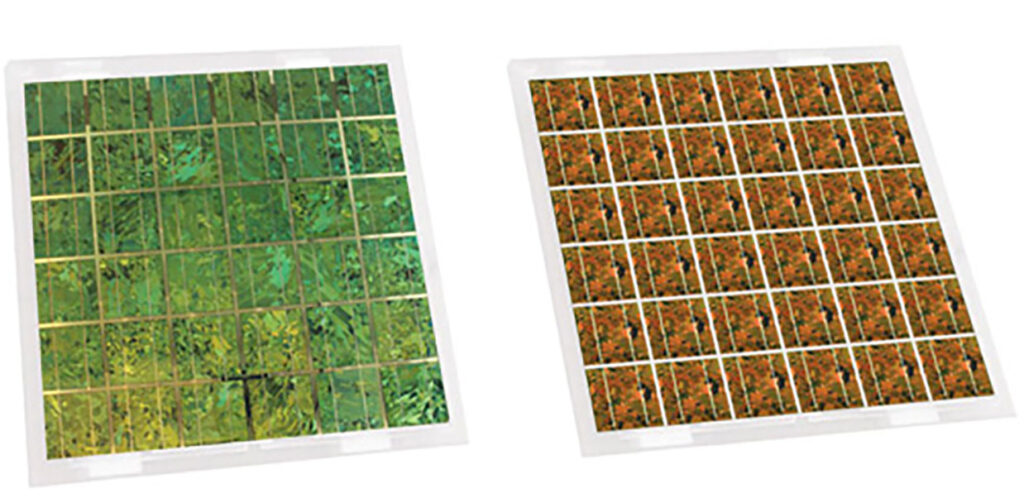

Polycrystalline (BIPV)

Examples of specifications for some types of Solar Panel Polycrystalline (BIPV)



BIPV 6X6 120-135

Specification

Type

Polycrystalline

Model No.

120

125

130

135

Warranty

Product Warranty

5 Years

Power Warranty

10 Years of 90%, 25 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

120 Wp

125 Wp

130 Wp

135 Wp

Voltage at Maximum Power (Vmpp)

17 V

17.2 V

17.6 V

18 V

Current at Maximum Power (Impp)

7.1 A

7.3 A

7.4 A

7.5 A

Open Circuit Voltage (Voc)

21.6 V

21.8 V

22.1 V

22.4 V

Short Circuit Current (Isc)

7.6 A

7.8 A

7.9 A

8 A

Panel Efficiency

10.3 %

10.7 %

11.1 %

11.5 %

Power Tolerance (Positive)

+ 3 %

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.45 %/°C

Temperature Coefficient of Voc

-0.34 %/°C

Temperature Coefficient of Isc

0.07 %/°C

Maximum Ratings

Maximum System
Voltage

1000 V

Material Data

Panel Dimension (H/W/D)

1096x1066x13.5 mm

Weight

37 kg

Cell Number

36

Encapsulant Type

EVA

Junction Box Protection Class

IP 67

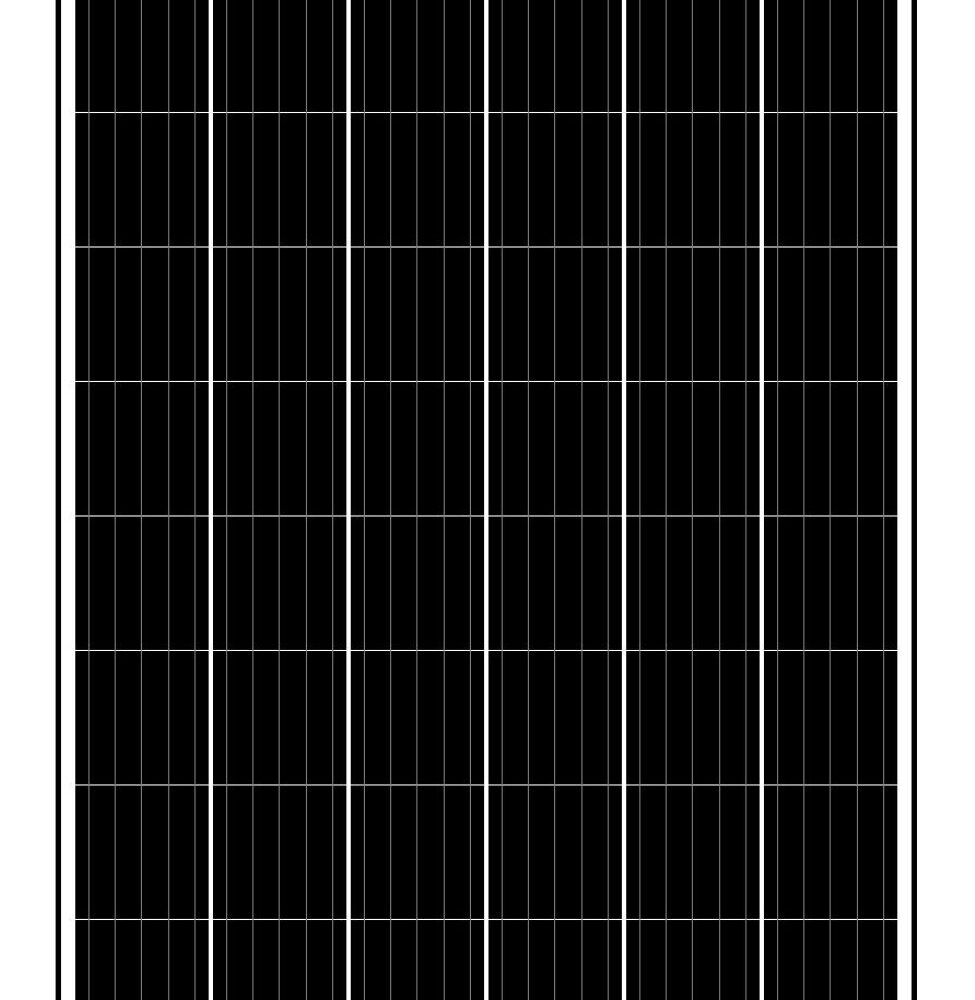

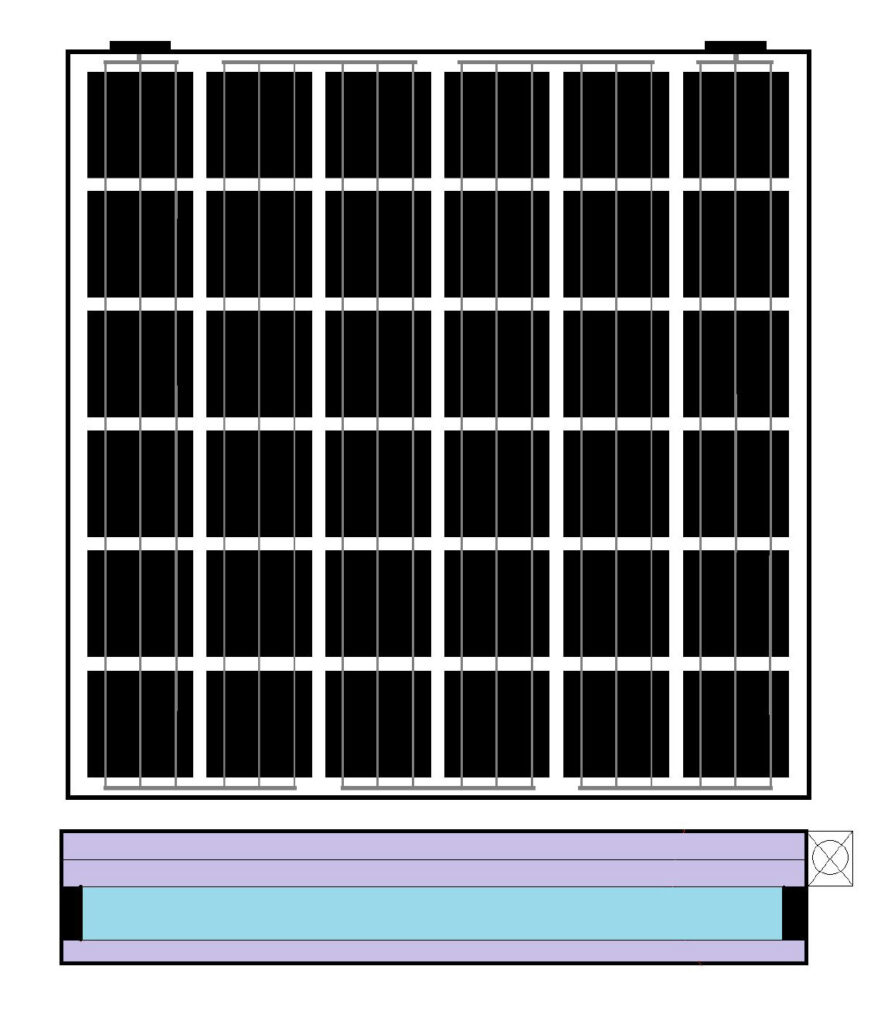

GSBIPVH 145-155 156P36




Specification

Type

Polycrystalline

Model No.

GSBIPVH-145W(156P)36

GSBIPVH-150W(156P)36

GSBIPVH-155W(156P)36

Warranty

Product Warranty

10 Years

Power Warranty

10 Years of 90%, 20 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

145 Wp

150 Wp

155 Wp

Voltage at Maximum Power (Vmpp)

18.11 V

18.13 V

18.15 V

Current at Maximum Power (Impp)

8.01 A

8.27 A

8.54 A

Open Circuit Voltage (Voc)

22.13 V

22.51 V

22.35 V

Short Circuit Current (Isc)

8.68 A

8.85 A

8.95 A

Panel Efficiency

+ 3.5 %

+ 3.5 %

+ 3 %

Electrical Data at NOCT

Temperature

45±2 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.43 %/°C

Temperature Coefficient of Voc

-0.34 %/°C

Temperature Coefficient of Isc

0.049 %/°C

Maximum Ratings



Maximum System Voltage

1000 V

Material Data

Panel Dimension (H/W/D)

1100x1100x25 mm

Weight

37 kg

Cell Size

156×156 mm

Cell Number

36

Glass Type

Tempered

Glass Thickness

4 mm

Encapsulant Type

PVB

Junction Box Protection Class

IP 67

Connector Type

MC4

Cable Crossection

4 mm2

Cable Length

900 mm

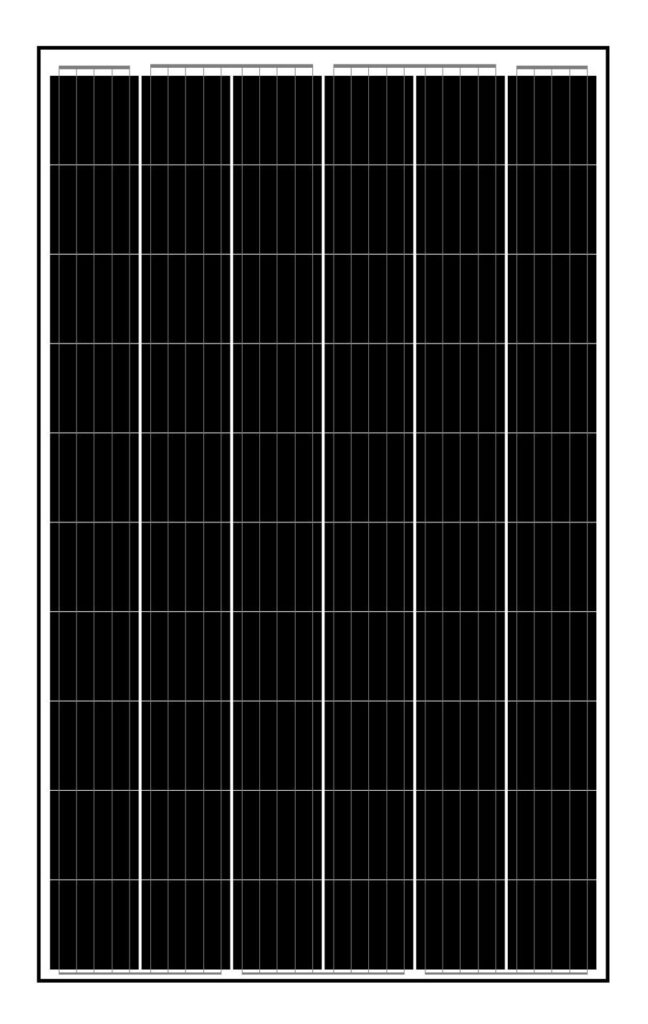

GSBIPV 255-270 156P60

Specification

Type

Polycrystalline

Model No.

GSBIPV-255W (156P)60

GSBIPV-260W (156P)60

GSBIPV-265W (156P)60

GSBIPV-270W (156P)60

Warranty

Product Warranty

10 Years

Power Warranty

10 Years of 90%, 25 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

255 Wp

260 Wp

265 Wp

270 Wp

Voltage at Maximum Power (Vmpp)

30.5 V

30.7 V

31.2 V

31.5 V

Current at Maximum Power (Impp)

8.35 A

8.47 A

8.51 A

8.58 A

Open Circuit Voltage (Voc)

37.6 V

37.9 V

38 V

38.3 V

Short Circuit Current (Isc)

8.9 A

8.99 A

9.09 A

9.17 A

Power Tolerance (Positive)

+2 %

Electrical Data at NOCT

Temperature

45±2 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.43 %/°C

Temperature Coefficient of Voc

-0.34 %/°C

Temperature Coefficient of Isc

0.049 %/°C

Maximum Ratings

Maximum System Voltage

1000 V

Material Data

Panel Dimension (H/W/D)

1658x992x7.4 mm

Weight

26.5 kg

Cell Size

156×156 mm

Cell Number

60

Glass Thickness

2 mm

Glass Type

Tempered

Encapsulant Type

PVB

Junction Box Protection Class

IP 67

Connector Type

MC4

Cable Crossection

4 mm2

Cable Length

900
mm





Monocrystalline (BIPV)

Examples of specifications for some types of Solar Panel Monocrystalline (BIPV)

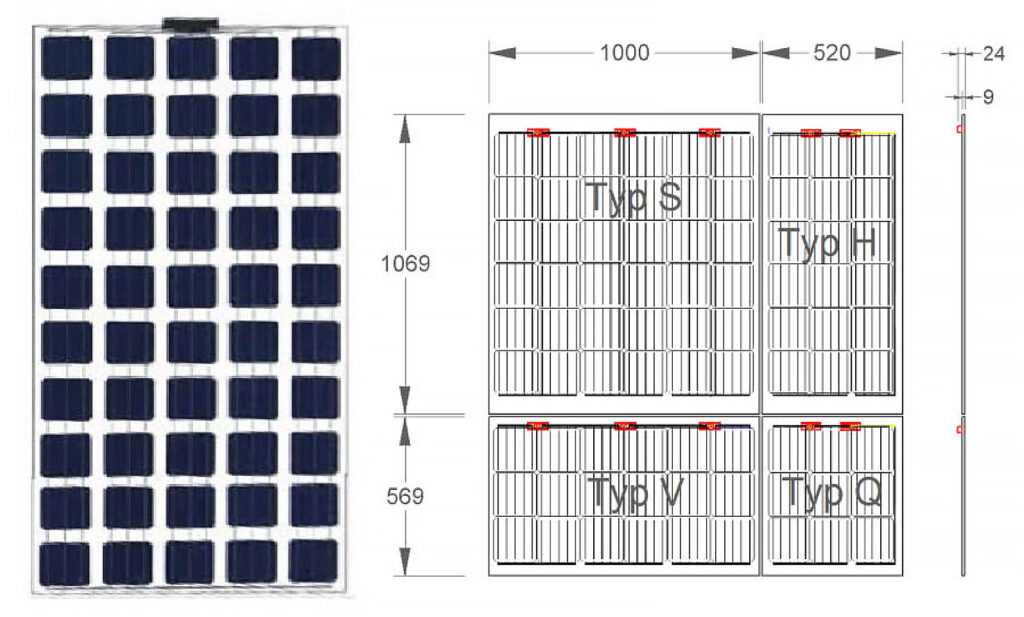

BIPV 45-180W Glas – Glas Laminate Type Q-V-H-S

Specification

Type

Monocrystalline

Model No.

BIPV 180W Type S



Product Warranty

12 Years

Electrical Data at STC

Maximum Power (Pmax)

180 Wp

Voltage at Maximum Power (Vmpp)

20.5 V

Current at Maximum Power (Impp)

6.63 A

Open Circuit Voltage (Voc)

25.5 V

Short Circuit Current (Isc)

7.19 A

Electrical Data at NOCT

Temperature

 45±2 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.37 %/°C

Temperature Coefficient of Voc

-0.26 %/°C

Temperature Coefficient of Isc

0.031 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

20 A

Material Data

Panel Dimension (H/W/D)

1000x1069x24 mm

Weight

21 kg

Cell Number

36

Cell Size

158.75×158.75 mm

Glass Thickness

4 mm

Encapsulant Type

PVB

Frame Type

Frameless

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm2

Cable Length

800 mm



The Greenhouse Module 9×4

Specification

Type

Monocrystalline

Model No.

9×4 M RJB

9×4 M FJB



Product Warranty

10 Years

Power Warranty

40 Years of 85%

Electrical Data at STC

Maximum Power (Pmax)

180 Wp

180 Wp

Voltage at Maximum Power (Vmpp)

20.34 V

20.34 V

Current at Maximum Power (Impp)

8.95 A

8.95 A

Open Circuit Voltage (Voc)

24.65 V

24.65 V

Short Circuit Current (Isc)

9.48 A

9.48 A

Power Tolerance (Positive)

+ 3 %

+ 3 %

Power Tolerance (Negative)

– 3 %

– 3 %

Electrical Data at NOCT

Temperature

 45±2 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.34 %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.03 %/°C

Maximum Ratings

Maximum System Voltage

1000 V

Series Fuse Rating

20 A

Material Data

Cell Number

36

Back Cover Type

PET

Junction Box Protection Class

IP 67

Connector Type

MC4

Cable Crossection

4 mm2

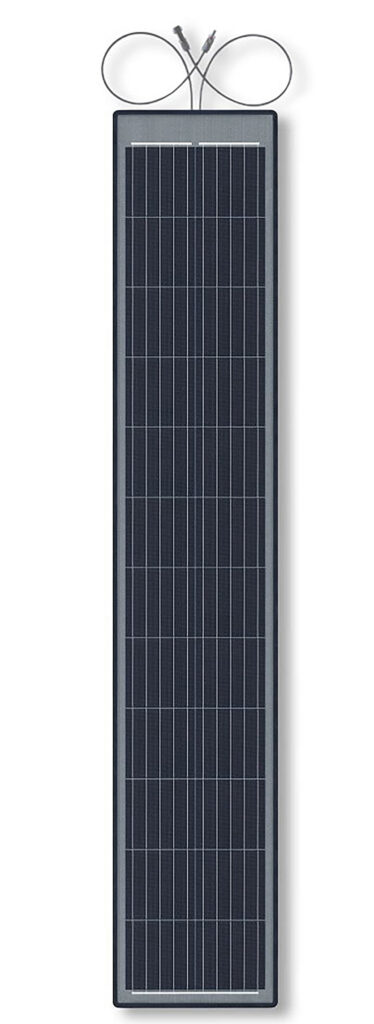

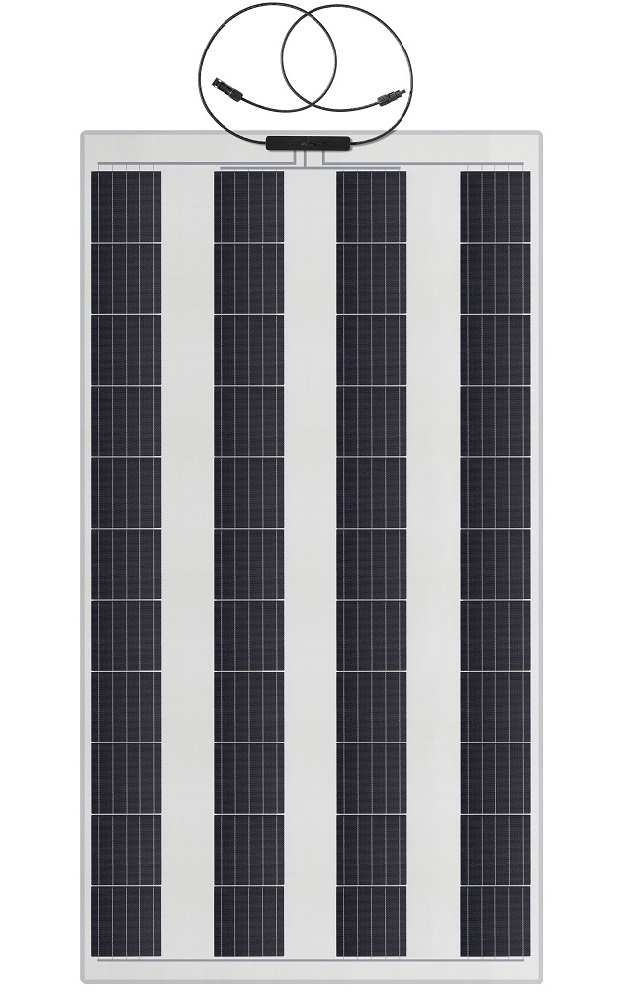

Composite Super Light Module 12×2

Specification

Type

Monocrystalline

Model No.

120 Wp



Product Warranty

10 Years

Power Warranty

40 Years of 85%



Maximum Power (Pmax)

120 Wp

Voltage at Maximum Power (Vmpp)

13.56 V

Current at Maximum Power (Impp)

8.95 A

Open Circuit Voltage (Voc)

16.43 V

Short Circuit Current (Isc)

9.48 A

Power Tolerance (Positive)

+ 4 %

Power Tolerance (Negative)

+ 4 %

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.34  %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.03 %/°C

Maximum Ratings

Maximum System Voltage

1000 V

Series Fuse Rating

20 A

Material Data

Weight

2.8 kg

Cell Number

24

Glass Type

Anti-reflection Coating

Back Cover Type

PET

Junction Box Protection Class

IP 67

Connector Type

MC4

Cable Crossection

4 mm2

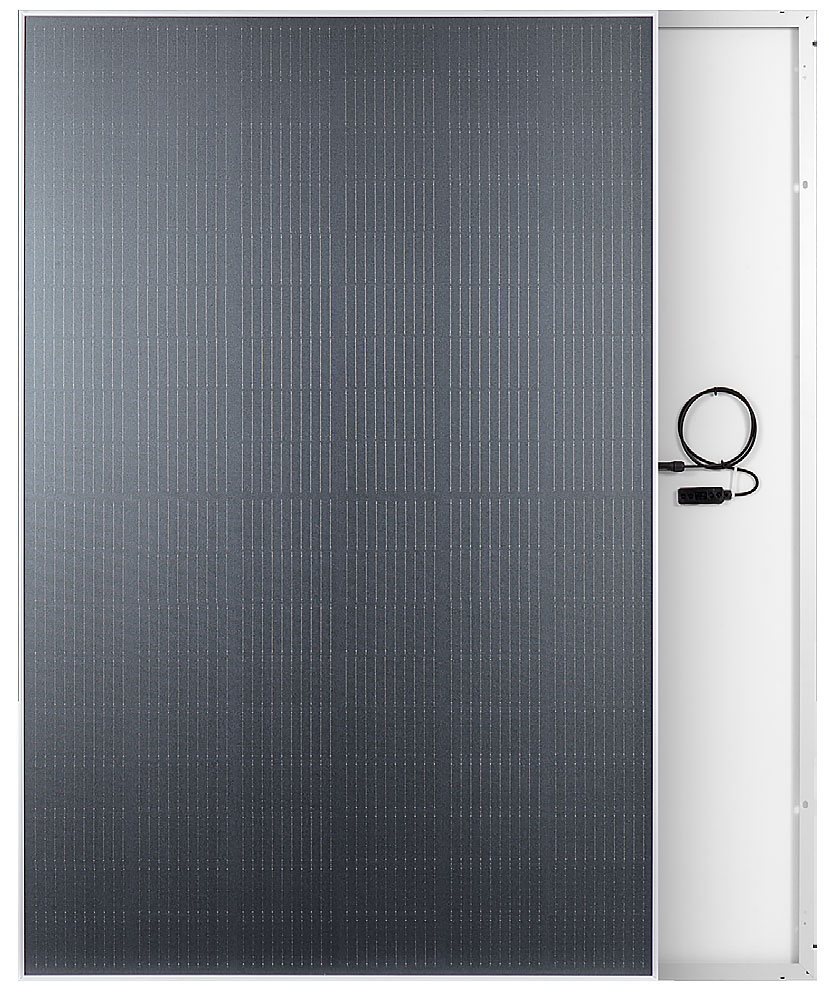

Silk Plus Silver FU360M

Specification

Type

Monocrystalline

Model No.

FU 350M

FU 355M

FU 360 M

Warranty

Product Warranty

15 Years

Power Warranty

25 Years of 87%

Electrical Data at STC

Maximum Power (Pmax)

350 Wp

355 Wp

360 Wp

Voltage at Maximum Power (Vmpp)

30.72 V

30.88 V

30.99 V

Current at Maximum Power (Impp)

11.4 A

11.5 A

11.62 A

Open Circuit Voltage (Voc)

37.01 V

37.2 V

37.34 V

Short Circuit Current (Isc)

11.89 A

12.02 A

12.15 A

Panel Efficiency

17.93 %

18.18 %

18.44 %

Power Tolerance (Positive)

– 5 %

Power Tolerance (Negative)

– 5 %

Electrical Data at NOCT

Maximum Power (Pmax)

265 Wp

269 Wp

272 Wp

Voltage at Maximum Power (Vmpp)

28.77 V

28.92 V

29.02 V

Current at Maximum Power (Impp)

9.2 A

9.29 A

9.38 A

Open Circuit Voltage (Voc)

34.91 V

35.1 V

35.25 V

Short Circuit Current (Isc)

9.36 A

9.47 A

9.57 A

Temperature

45±2 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.35 %/°C

Temperature Coefficient of Voc

-0.28 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Maximum Ratings



Maximum System Voltage

1000 V

Material Data

Panel Dimension (H/W/D)

1722x1134x30 mm

Weight

20.8 kg

Cell Size

182×182 mm

Cell Number

108

Glass Type

Tempered

Glass Thickness

3.2 mm

Encapsulant Type

EVA

Frame Type

Anodized Aluminium

Junction Box Diodes

3

Junction Box Protection Class

IP 68

Cable Crossection

4 mm2

Cable Length

1100 mm

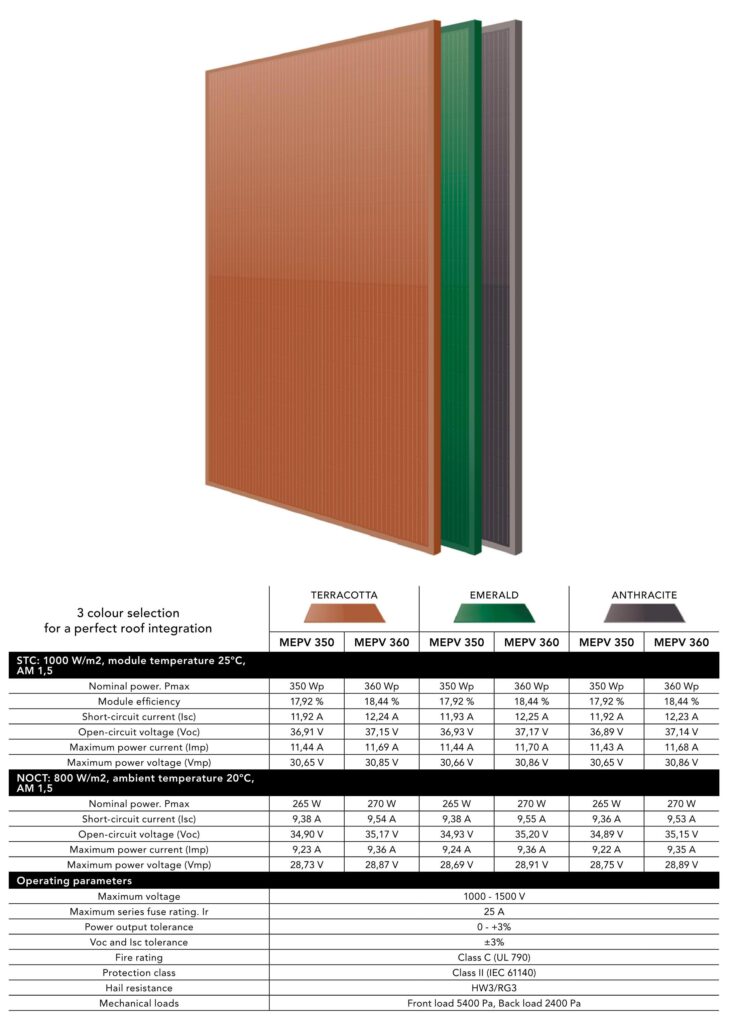

MEPV Coloured BIPV 350/360W

Specification

Type

Monocrystalline

Model No.

TERRACOTTA MEPV 350

EMERALD MEPV 350

ANTHRACITE MEPV 350

TERRACOTTA MEPV 360

EMERALD MEPV 360

ANTHRACITE MEPV 360

Warranty

Product Warranty

20 Years

Power Warranty

30 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

350 Wp

350 Wp

350 Wp

360 Wp

360 Wp

360 Wp

Voltage at Maximum Power (Vmpp)

30.65 V

30.66 V

30.65 V

30.85 V

30.86 V

30.86 V

Current at Maximum Power (Impp)

11.44 A

11.44 A

11.43 A

11.69 A

11.7 A

11.68 A

Open Circuit Voltage (Voc)

36.91 V

36.93 V

36.89 V

37.15 V

37.17 V

37.14 V

Short Circuit Current (Isc)

11.92 A

11.93 A

11.92 A

12.24 A

12.25 A

12.23 A

Panel Efficiency

17.92 %

17.92 %

17.92 %

18.44 %

18.44 %

18.44 %

Power Tolerance (Positive)

+ 3 %

Electrical Data at NOCT

Maximum Power (Pmax)

265 Wp

265 Wp

265 Wp

270 Wp

270 Wp

270 Wp

Voltage at Maximum Power (Vmpp)

28.73 V

28.69 V

28.75 V

28.87 V

28.91 V

28.89 V

Current at Maximum Power (Impp)

9.23 A

9.24 A

9.22 A

9.36 A

9.36 A

9.35 A

Open Circuit Voltage (Voc)

34.9 V

34.93 V

34.89 V

35.17 V

35.2 V

35.15 V

Short Circuit Current (Isc)

9.38 A

9.35 A

9.36 A

9.54 A

9.55 A

9.53 A

Temperature

41±3 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.35 %/°C

Temperature Coefficient of Voc

-0.28 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Maximum Ratings



Maximum System Voltage

1500 V

Series Fuse Rating

25 A

Material Data

Panel Dimension (H/W/D)

1722x1134x30 mm

Weight

20.8 kg

Cell Number

108

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium

Junction Box Diodes

3

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm2

Cable Length

1000 mm



Thin film (BIPV)

Examples of specifications for some types of Solar Panel Thin film (BIPV)

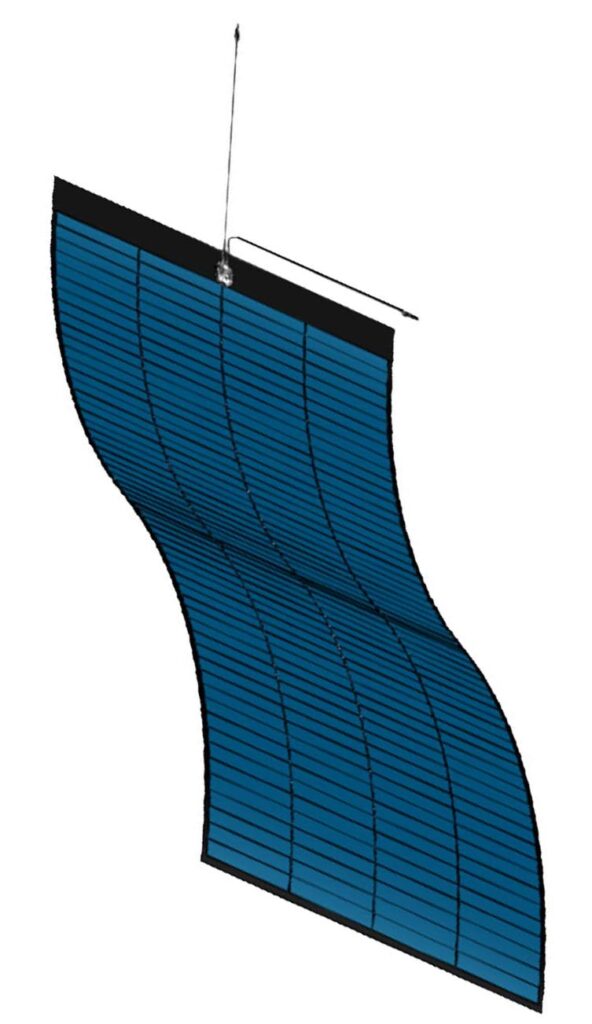

SOLAR PV FLEX

Specification

Type

Thin film

Model No.

470W

470W

490W

500W

Warranty

Product Warranty

5 Years

Power Warranty

10 Years of 90%, 25 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

470 Wp

480 Wp

490 Wp

500 Wp

Voltage at Maximum Power (Vmpp)

59.6 V

60.5 V

61.4 V

62.4 V

Current at Maximum Power (Impp)

7.91 A

7.95 A

7.99 A

8.03 A

Open Circuit Voltage (Voc)

74.8 V

75.6 V

76.4 V

77.2 V

Short Circuit Current (Isc)

9.19 A

9.15 A

9.11 A

9.07 A

Panel Efficiency

15.4 %

15.7 %

16 %

16.4 %

Power Tolerance (Positive)

+ 2 %

Electrical Data at NOCT

Temperature

48 °C

Thermal Ratings

Temperature Coefficient of Pmax

-0.38 %/°C

Temperature Coefficient of Voc

-0.28 %/°C

Temperature Coefficient of Isc

0.008 %/°C

Maximum Ratings

Maximum System Voltage

1000 V

Series Fuse Rating

25 A

Material Data

Panel Dimension (H/W/D)

2585x1292x17 mm

Weight

6.6 kg

Junction Box Protection Class

IP 68

Connector Type

MC4







FLEX-03N 110-130W CIGS

Specification

Type

Thin film

Model No.

FLEX-03N-110W

FLEX-03N-115W

FLEX-03N-120W

FLEX-03N-125W

FLEX-03N-130W

Warranty

Product Warranty

5 Years

Power Warranty

10 Years of 90%, 25 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

110 Wp

115 Wp

120 Wp

125 Wp

130 Wp

Voltage at Maximum Power (Vmpp)

28.5 V

29 V

29.5 V

30 V

30.5 V

Current at Maximum Power (Impp)

3.87 A

3.97 A

4.07 A

4.16 A

4.26 A

Open Circuit Voltage (Voc)

36.5 V

36.8 V

37.1 V

37.4 V

37.7 V

Short Circuit Current (Isc)

4.7 A

4.7 A

4.7 A

4.7 A

4.7 A

Panel Efficiency

14.4 %

15 %

15.7 %

16.4 %

17 %

Power Tolerance (Positive)

+ 5 %

Electrical Data at NOCT

Temperature

48 °C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.40 %/°C

Temperature Coefficient of Voc

-0.36 %/°C

Temperature Coefficient of Isc

0.003 %/°C

Maximum Ratings

Maximum System Voltage

1000 V

Series Fuse Rating

10 A

Material Data

Panel Dimension (H/W/D)

2585x348x2.5 mm

Weight

1.9 kg

Encapsulant Type

ETFE

Back Cover Type

TPT

Frame Type

Frameless

Junction Box Diodes

2

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

2.5 mm2

Cable Length

500 mm



FLEX-03M-1.7M 210-240W CIGS

Specification

Type

Thin film

Model No.

FLEX-03M-1.7M-210W

FLEX-03M-1.7M-220W

FLEX-03M-1.7M-230W

FLEX-03M-1.7M-240W

Warranty

Product Warranty

5 Years

Power Warranty

10 Years of 90%, 25 Years of 80%

Electrical Data at STC

Maximum Power (Pmax)

210 Wp

220 Wp

230 Wp

240 Wp

Voltage at Maximum Power (Vmpp)

18.1 V

18.8 V

19.4 V

20 V

Current at Maximum Power (Impp)

11.6 A

11.8 A

11.9 A

12 A

Open Circuit Voltage (Voc)

23.2 V

23.7 V

24.2 V

24.7 V

Short Circuit Current (Isc)

14 A

13.9 A

13.7 A

13.6 A

Panel Efficiency

14.2 %

14.9 %

15.6 %

16.3 %

Power Tolerance (Positive)

+ 10 %

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.43 %/°C

Temperature Coefficient of Voc

-0.33 %/°C

Temperature Coefficient of Isc

0.03 %/°C

Maximum Ratings

Maximum System Voltage

1000 V

Series Fuse Rating

10 A

Material Data

Panel Dimension (H/W/D)

1710x973x17 mm

Weight

3.4 kg

Frame Type

Frameless

Junction Box Protection Class

IP 68

Connector Type

MC4



Related products

Cart (0 items)
