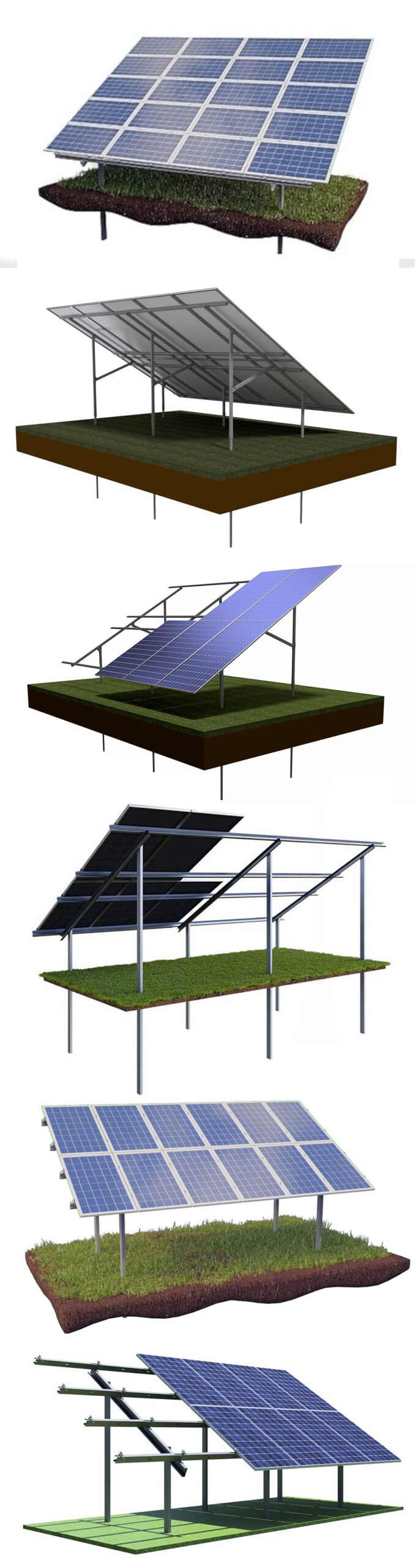

Ground Mounting System Detailed Specifications |
|
||
|
Key Components and Specifications: |
|||
|
– |
Support Structure: |
||
|
|
This is the framework that holds the solar panels. It can be made of various materials like aluminum or steel, with options for pre-engineered systems or custom-built solutions. |
||
|
– |
Foundations: |
||
|
|
Ground mounts can utilize different foundation types, including ballasted (concrete blocks), screw piles, or direct-fix methods, depending on site conditions and project requirements. |
||
|
– |
Panel Clamping: |
||
|
|
Solar panels are secured to the mounting structure using clamps, which can be customized based on panel dimensions and manufacturer specifications. |
||
|
– |
Tilt Angle: |
||
|
|
Ground mount systems often allow for adjustable tilt angles, enabling optimization for solar energy capture based on the sun’s path. |
||
|
– |
Wind and Snow Loads: |
||
|
|
The system’s design must consider local wind and snow load conditions to ensure structural integrity. |
||
|
– |
Material Specifications: |
||
|
|
Mounting structures can be made from materials like 6082-T6 aluminum or galvanized steel, often with corrosion-resistant coatings like anodization or hot-dip galvanization. |
||
|
– |
Panel Orientation: |
||
|
|
Ground mount systems can be configured for either portrait or landscape panel orientation, depending on the specific site and project needs. |
||
|
– |
Design Codes: |
||
|
|
Ground mount systems are designed and manufactured according to relevant standards and codes, such as Eurocodes and local building codes. |
||
|
|
|||
|
Additional Considerations: |
|||
|
– |
Terrain: |
||
|
|
Ground mounts can be adapted to various terrains, including flat, sloped, or uneven ground. |
||
|
– |
Accessibility: |
||
|
|
The design should allow for easy access to the panels for maintenance and cleaning. |
||
|
– |
Cost: |
||
|
|
Ground mount systems can be more cost-effective than other mounting options, particularly for large-scale solar installations. |
||
|
– |
Environmental Impact: |
||
|
|
Ground mounts can be designed to minimize environmental impact, such as by allowing vegetation growth underneath the panels. |
||
|
|
|||
|

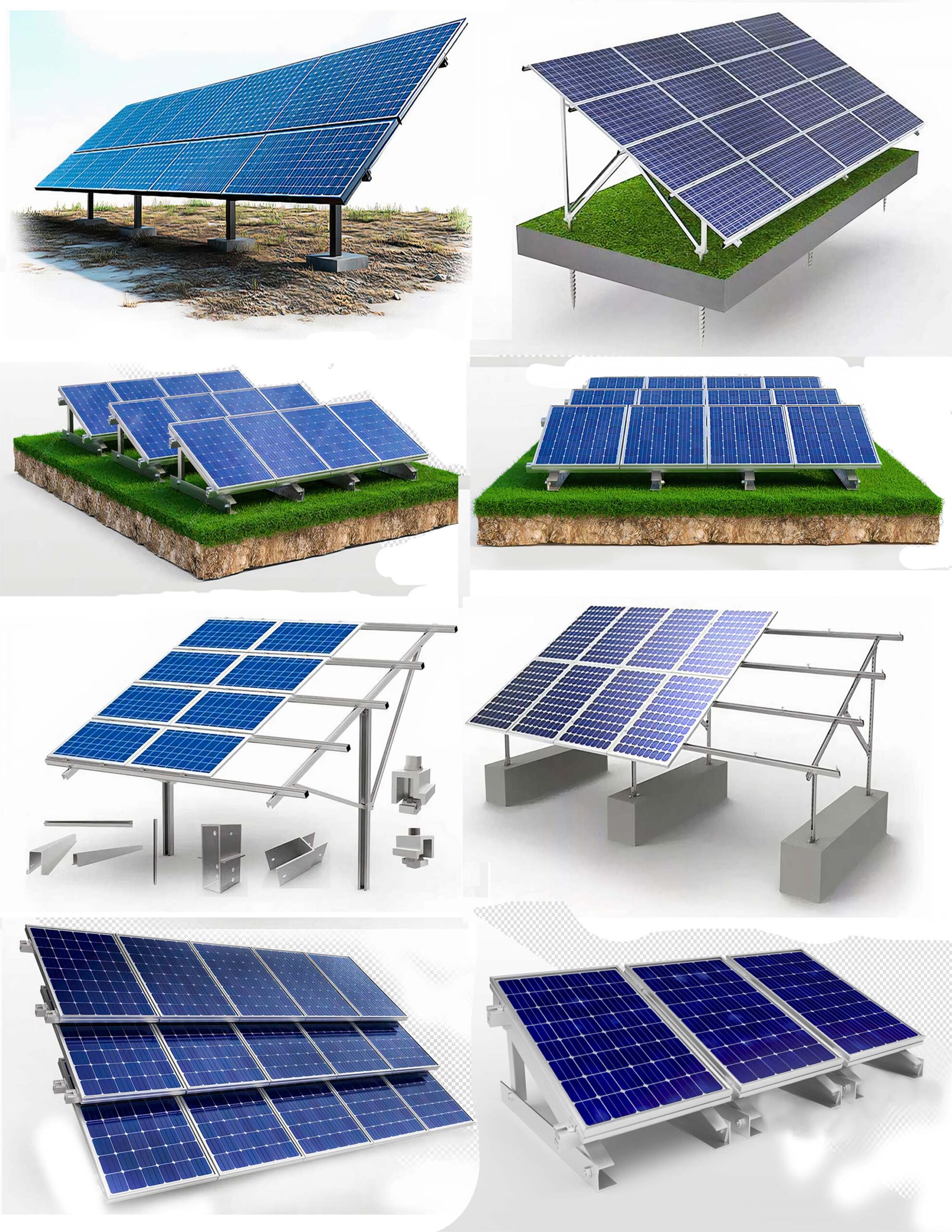

Specification of Ground Mounting System for Solar Panels |
|||
|
Item |
Description / Specification |
||
|
Mounting Type |
Ground Mounting System (Fixed Tilt / Adjustable Tilt / Tracking) |
||
|
Tilt Angle |
15° – 45° (Fixed or adjustable depending on location) |
||
|
System Orientation |
South-facing (in Northern Hemisphere) or as per site design |
||
|
Structure Material |
Aluminum Alloy (Al 6005-T5) or Hot-Dip Galvanized Steel |
||
|
Fastener Material |
Stainless Steel (SUS304) |
||
|
Foundation Type |
Ground Screws or Concrete |
||
|
Wind Resistance |
Up to 160 km/h or as per local standards |
||
|
Snow Load Resistance |
Up to 1.5 kN/m² (depending on site conditions) |
||
|
Panel Mounting Type |
Portrait or Landscape |
||
|
Adjustability |
Horizontal and/or Vertical (±20 mm depending on design) |
||
|
Expected Lifespan |
≥ 25 years |
||
|
Compliance Standards |
AS/NZS 1170, JIS C8955, DIN 1055, IEC 61215 |
||
|
Protection Grade |
UV, Corrosion, and Heat Resistant |
||
|
Installation Method |
Mechanical Screws, Easy Lock-in Clamps, No Welding |
||
|

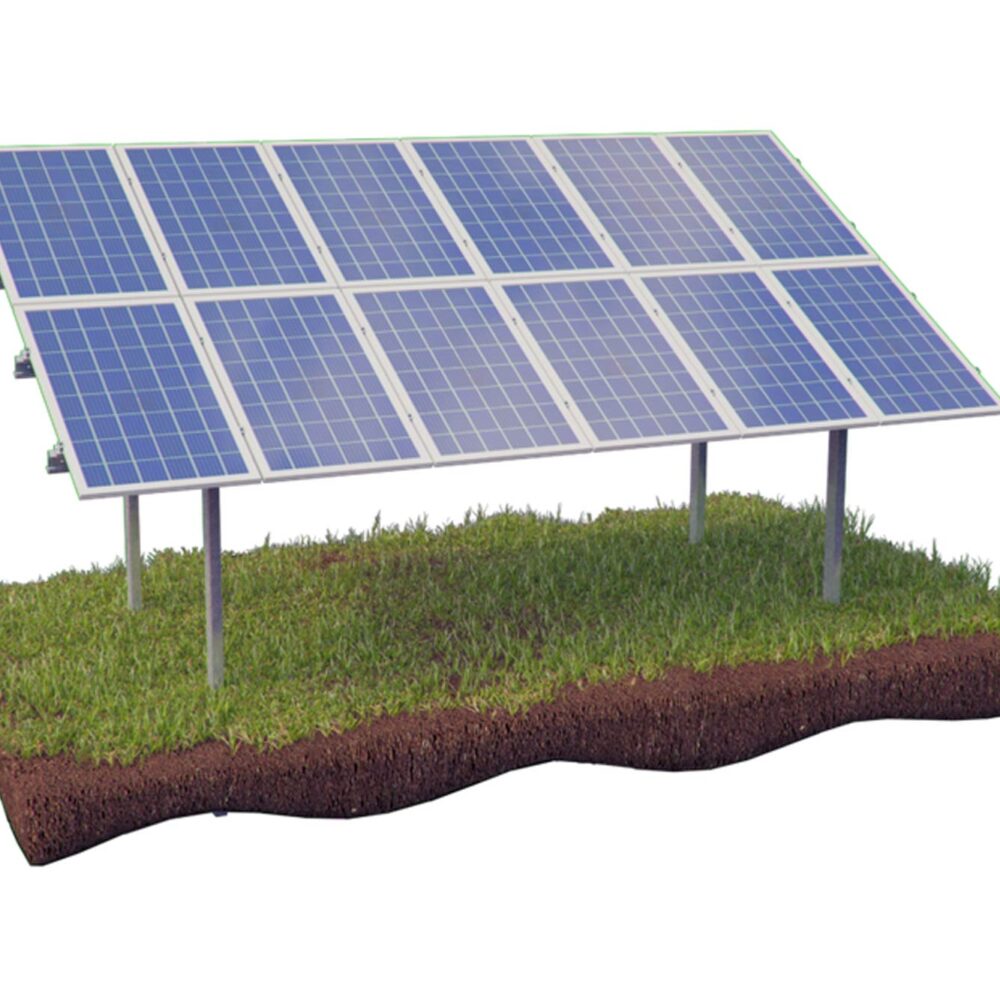

TOEN-4K4-5SAN Ground Mounting System |
|||
 |
|||
|
Product Characteristics |
|||
|
Model No. |
TOEN-4K4-5SAN |
||
|
Product Warranty |
15 Years |
||
|
System Overview |
|||
|
Type |
Ground |
||
|
Mounting System Arrangement |
Rows |
||
|
Panel Framing |
Framed |
||
|
Panel Orientation |
Portrait, Landscape |
||
|
General Data |
|||
|
Supporting Structure Materials |
Stainless Steel |
||
|
Small Parts Materials |
Stainless Steel |
||
